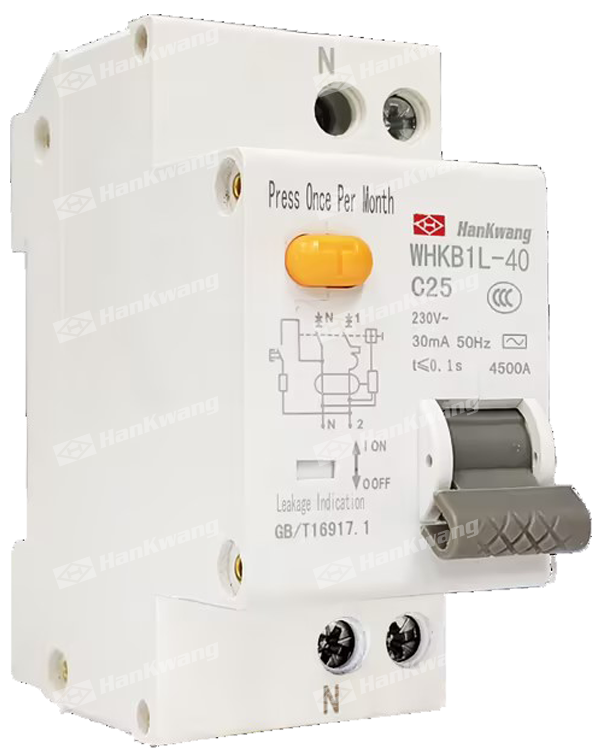

WHKB1L-40 (1P + N) Series Small Leakage Protection Device
WHKB1L-40 series leakage circuit breaker is suitable for lines with AC 50Hz, rated voltage 230V, rated current to 40A and below. It is used to protect people from indirect contact, and to protect buildings and similar lines from overcurrent. It can also protect the fire arch caused by the persistent ground fault due to the inaction of the overcurrent protection device.
Product Details
Model and Meaning
Technical Specifications

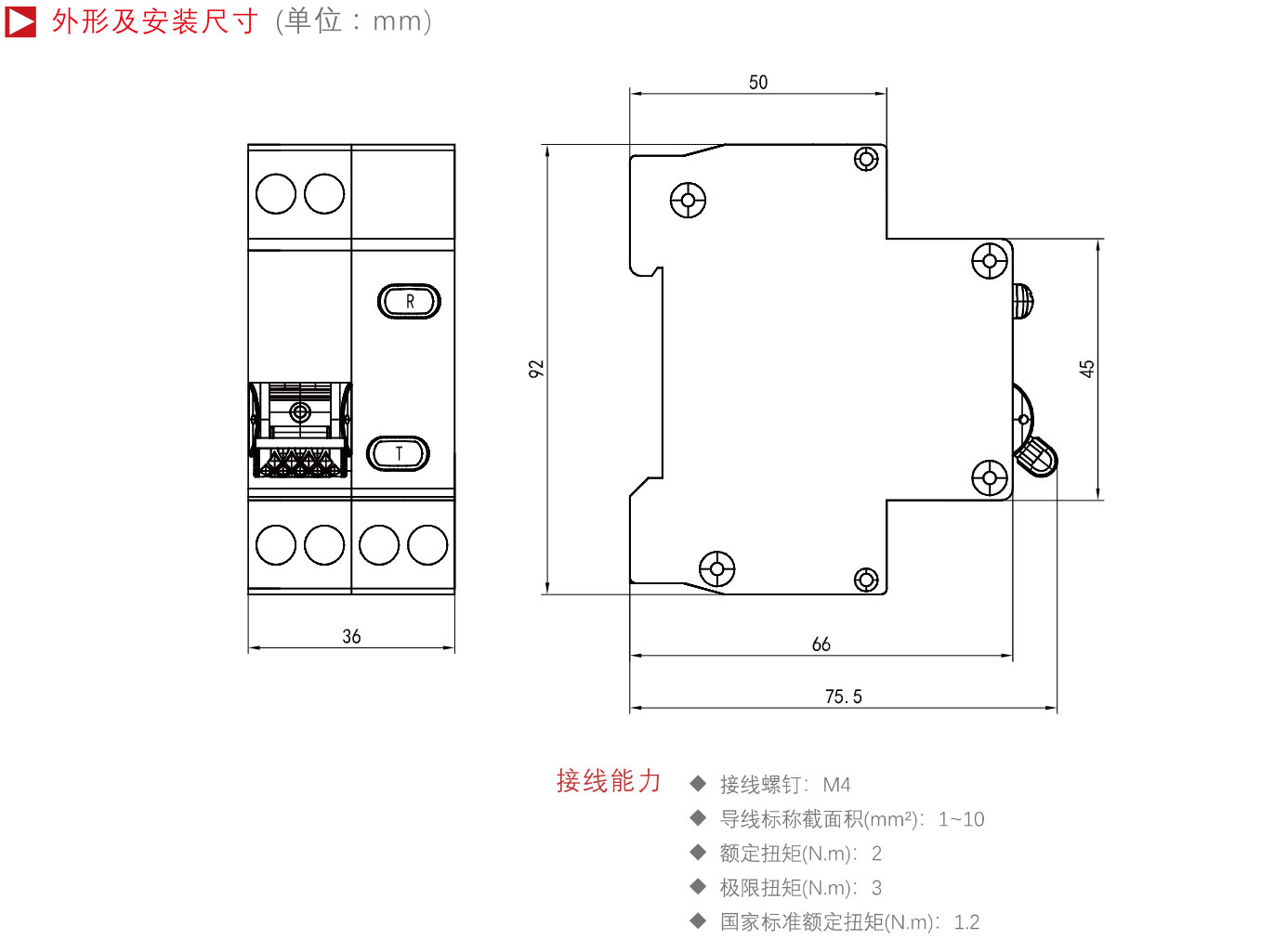

Appearance and dimensions
WHKB1L-40 series leakage circuit breaker is suitable for lines with AC 50Hz, rated voltage 230V, rated current to 40A and below. It is used to protect people from indirect contact, and to protect buildings and similar lines from overcurrent. It can also protect the fire arch caused by the persistent ground fault due to the inaction of the overcurrent protection device. Leakage circuit breakers with overvoltage protection also protect against excessive voltage rises caused by power grid faults. This series of leakage circuit breakers has been increasingly used in low-voltage distribution systems as ground faults and direct contact and indirect contact electric shocks. Backup protection.
| WHK | B1 | L | — | 40 | ☐ | / | ☐ | ☐ | ☐ |
|---|---|---|---|---|---|---|---|---|---|
| Enterprise code | Design serial number |
Special derivation code (Electronic leakage Circuit breaker) |
Shell frame grade Rated current |
Rated short circuit Breaking capacity (None: 4500A; H: 6000A) |
Number of poles 1P + N |
Instantaneous trip characteristics: Type C power distribution; D-type motor protection |
Rated current |
◆Main Specifications and Parameters
|
Shell frame grade Rated current (A) |
Rated current (A) |
Number of poles |
Rated voltage (V) |
Mechanical life (times) |
Rated short circuit breaking capacity |
|---|---|---|---|---|---|
|
Expected current of test line (A) |
|||||
| 40 |
6、10、16 20、25、32、40 |
1P + N | 230 | 20000 | 4500 |
| 40H |
6、10、16 20、25、32、40 |
1P + N | 230 | 20000 | 6000 |
◆Overcurrent trip characteristic
|
Test current (A) |
Rated voltage (V) |
Prescribed time | Expected Results | Initial state | remark |
|---|---|---|---|---|---|
| 1.13 In | All values | t ≥ 1h | Non-tripping | Cold state | The current steadily rises to a predetermined value within 5s |
| 1.45 In | All values | t < 1h | Trip | Thermal state | Close auxiliary switch on current |
| 2.55 In | In ≤ 32 A | 1 < t < 60s < td="">< / t < 60s < > | Trip | Cold state | Close auxiliary switch on current |
| 5In (type C) | All values | t ≥ 0.1 s | Non-tripping | Cold state | Close auxiliary switch on current |
| 10In (type C) | All values | t < 0.1 s | Trip | Cold state | Close auxiliary switch on current |
| 10In (D type) | All values | t ≥ 0.1 s | Non-tripping | Cold state | Close auxiliary switch on current |
| 14In (D type) | All values | t < 0.1 s | Trip | Cold state | Close auxiliary switch on current |
◆ Comply with standards: IEC60898, GB10963.1
◆ Operating temperature:-35 ℃ + 70 ℃, the average temperature within 24 hours does not exceed + 35 ℃
◆ Altitude: ≤ 2000m
◆ Atmospheric conditions: The relative humidity of the air at the installation site is ≤ 50% at + 40 ℃, and the maximum is 90%
