WHKCPS1 series control and protection switchgear
CPS is "control and protection switchgear". It is mainly used for AC 50Hz (60Hz), rated working voltage to 690V, rated working current 1A to 125A, controller setting current 0.4 A to 125A, and control motor power 0.12 kW to 55kW.
Product Details
Model and Meaning
Technical Specifications

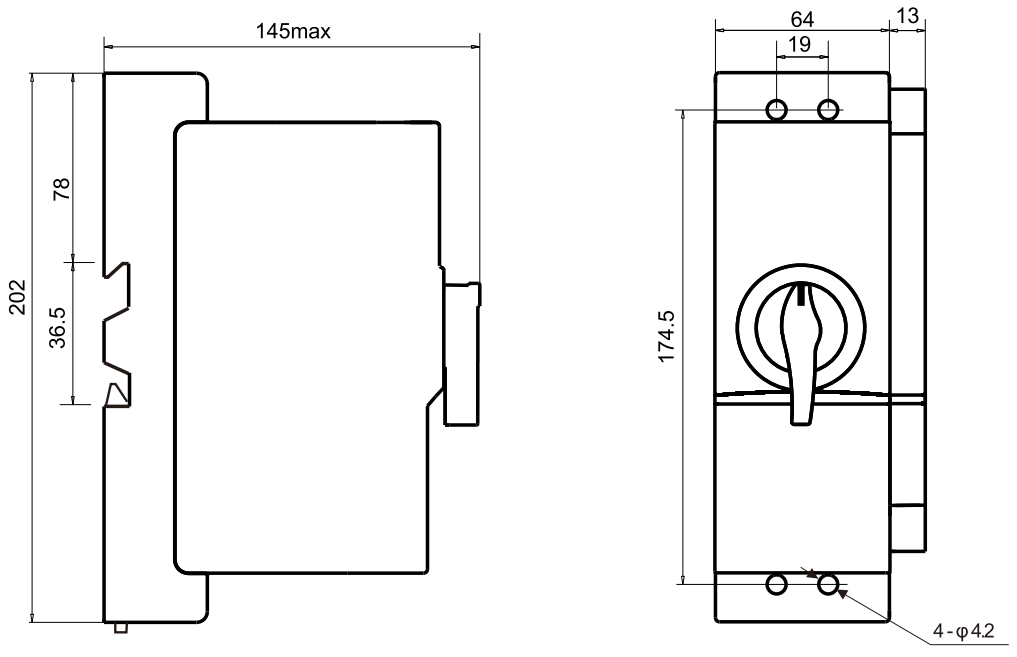

Appearance and dimensions
Other

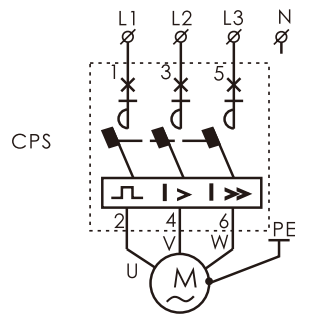

CPS is "control and protection switchgear". It is mainly used for AC 50Hz (60Hz), rated working voltage to 690V, rated working current 1A to 125A, controller setting current 0.4 A to 125A, and control motor power 0.12 kW to 55kW. In circuits, it can turn on, carry and break the current under normal conditions (including specified overload conditions), and can also turn on, carry for a certain time and break the current under specified abnormal conditions (such as short circuit).
| WHKCPS1 | — | ☐ | ☐ | / | ☐ | ☐ | ☐ | / | ☐ | ☐ | / | ☐ | / | ☐ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Main body unit Current rating |
Switch break Class code (kA) |
Load Characteristics | Function | Combination form |
Main circuit Level 3 |
Attachment code | Operating voltage |
smart Release device |
||||||
| Unit 45125 unit | None: 15M: 35H: 50 | M-Motor ProtectionL-Power distribution protection | Standard type: not labeledOverload alarm not protected (fire protection): BCommunication: NIsolation: GLeakage protection: LENote: The above codes can be combined arbitrarily | Direct start: NoneTwo-speed, three-speed control: DReversible control: KStar Delta Decompression Start: JAuto-coupling decompression start: Z | Do not mark when equipped with standard accessories | Standard configuration (code: 20)Optional configuration (code: 42)See Auxiliary Group Circuit Description for specific instructions | AC230V is not labeledAC400V | Rated operating current le (A)Or control power (kW) |
◆ Main circuit parameters
| Model | WHKCPS1-45 | WHKCPS1-125 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated operating voltage Ue (V) | 400/50 Hz | |||||||||||
| Rated insulation voltage Ui (V) | 690 | |||||||||||
| Rated impulse withstand voltage Uimp (kV) | 6 | |||||||||||
| Agreed heating current Ith (A) | 16 | 45 | 80 | 125 | ||||||||
| Rated operating current le (A) | 1 | 3 | 6 | 12 | 16 | 25 | 32 | 45 | 63 | 80 | 100 | 125 |
| Use categories | AC-43, AC-44 | |||||||||||
| Number of poles | 3P | |||||||||||

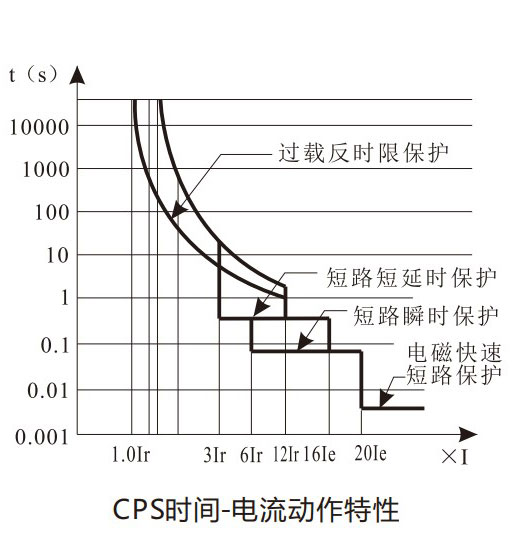

◆ Controller setting current
| Shell frame grade |
Rated operating current le (A) |
Controller rated current let (A) |
Overload setting current range Ir (A) |
Controllable motor power Pe (kW) (400V) |
|---|---|---|---|---|
| 45 | 1 | 1 | 0.4~1 | 0.12~0.3 |
| 3 | 3 | 1.2~3 | 0.37~1.2 | |
| 6 | 6 | 2.4~6 | 1.0~2.7 | |
| 12 | 12 | 4.8～12 | 2.2~5.5 | |
| 16 | 16 | 6.4~16 | 3.0~7.5 | |
| 25 | 25 | 10~25 | 5.0~12 | |
| 32 | 32 | 12.8~32 | 6.5~15 | |
| 45 | 45 | 18～45 | 9.0~22 | |
| 125 | 63 | 63 | 25～63 | 12~30 |
| 80 | 80 | 32~80 | 15~37 | |
| 100 | 100 | 40~100 | 22~45 | |
| 125 | 125 | 50~125 | 27~55 |
◆ Controlling electromagnet action condition
| Rated control supply voltage Us | Agreed action | Operating voltage range | ||
|---|---|---|---|---|
|
M: AC230V Q: AC400V |
CPS reliable closure | (85%-110%) Us | ||
| CPS disconnect or release | (20%-75%) Us | |||
◆ Electrical Life
| model | WHKCPS1-45 | WHKCPS1-125 | ||
|---|---|---|---|---|
|
Electrical lifetime (10,000 times) |
AC-43 | 100 | 30 | |
| AC-44 | 3 | 2 | ||
| Mechanical life (10,000 times) | 1000 | 300 | ||
| Working system level (intermittent work system) | 300 load factor 40% | 120 load factor 25% | ||

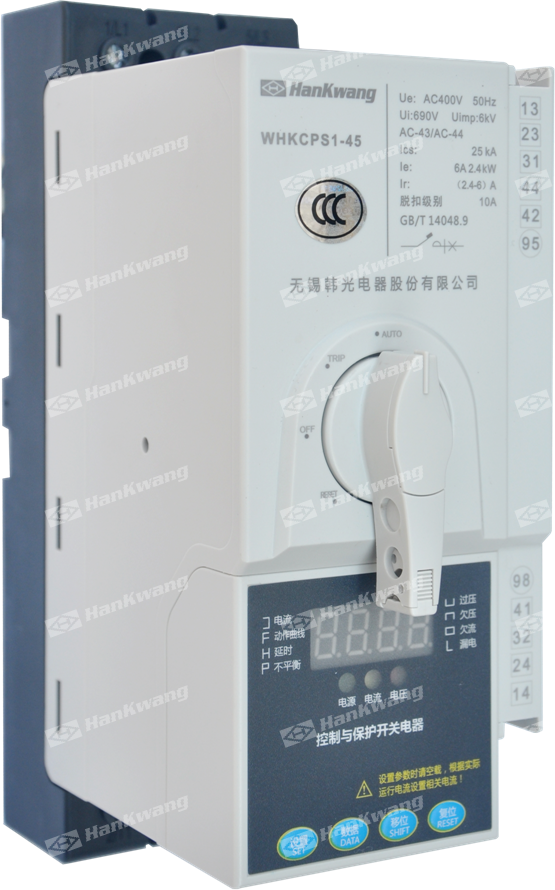

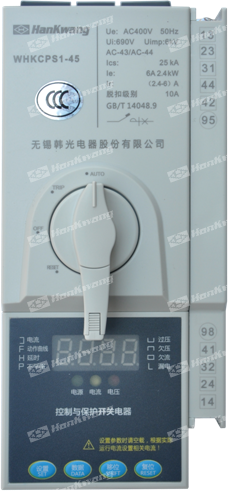

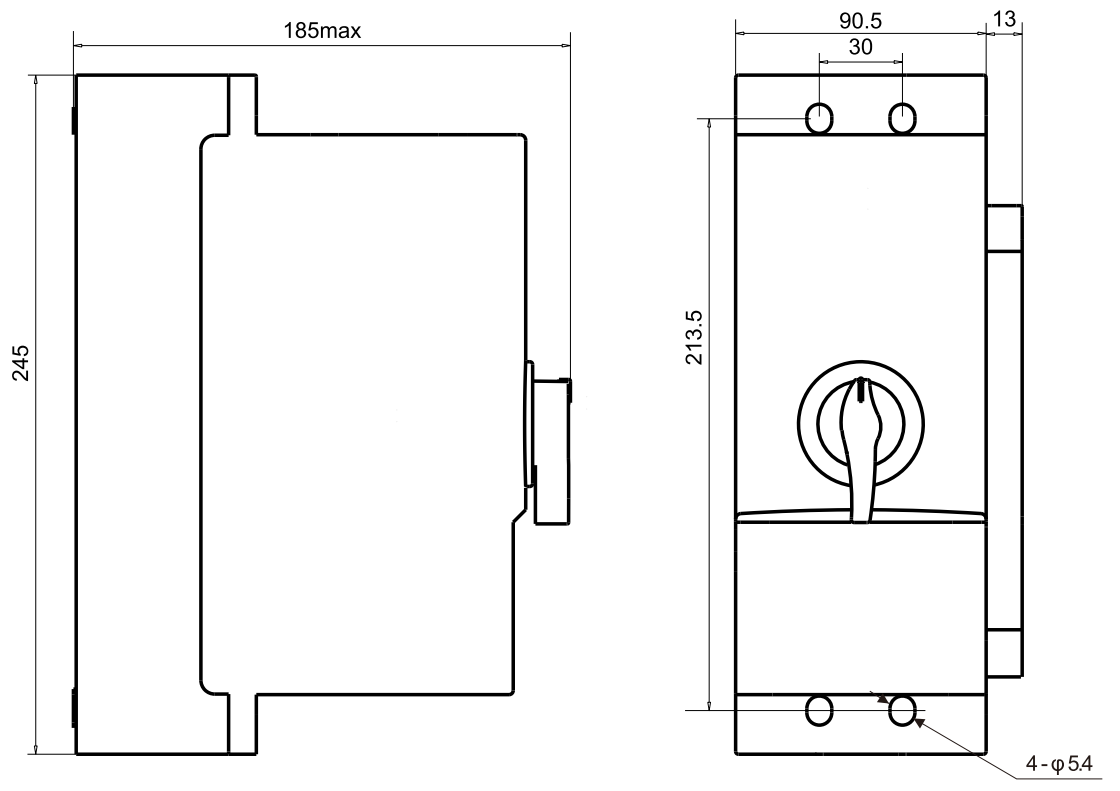

WHKCPS1-45 Control and Protection Switch Appliances

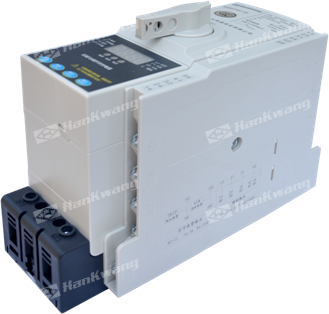

WHKCPS1-125 Control and Protection Switch Appliances

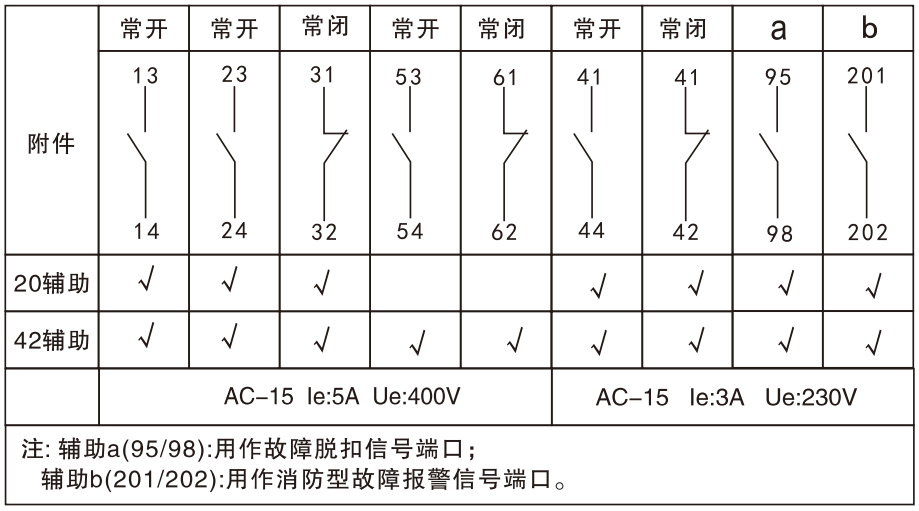

CPS auxiliary group circuit description:

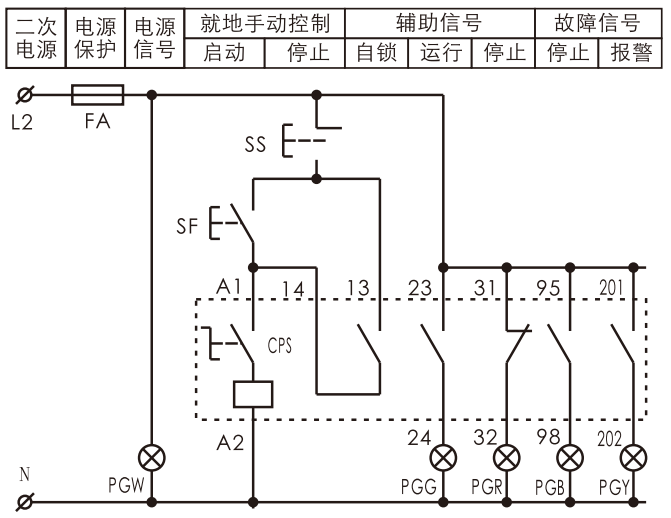

Manual panel + on-site control
Note: This diagram is suitable for direct local control by start and stop buttons when a single equipment is operating normally.

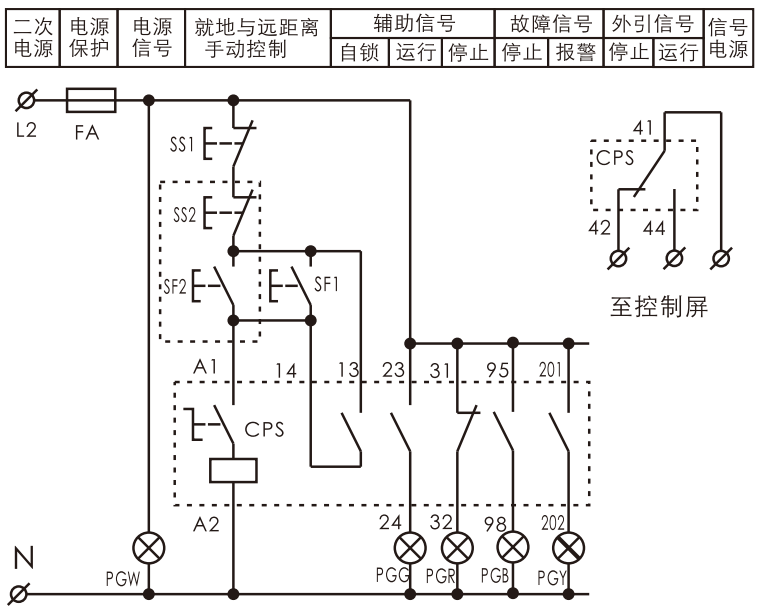

Manual panel + local control + remote control
Note: This diagram is suitable for local and long-distance simultaneous control of various types of motor single equipment when it is working normally.
