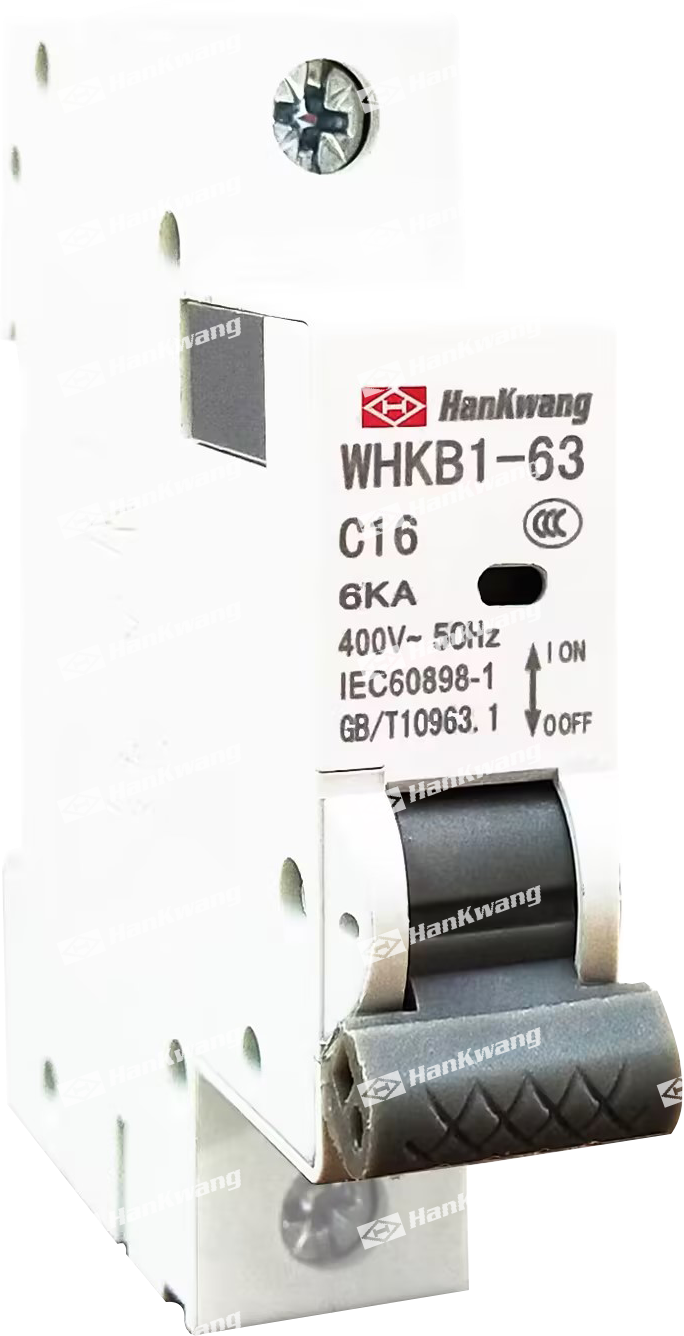

WHKB1-63 Series Miniature Circuit Breaker
WHKB1-63 series high breaking mini circuit breaker has the characteristics of advanced structure, reliable performance, high breaking capacity, beautiful and compact appearance. The shell and three parts are made of impact-resistant and high flame retardant materials.
Product Details
Model and Meaning
Technical Specifications

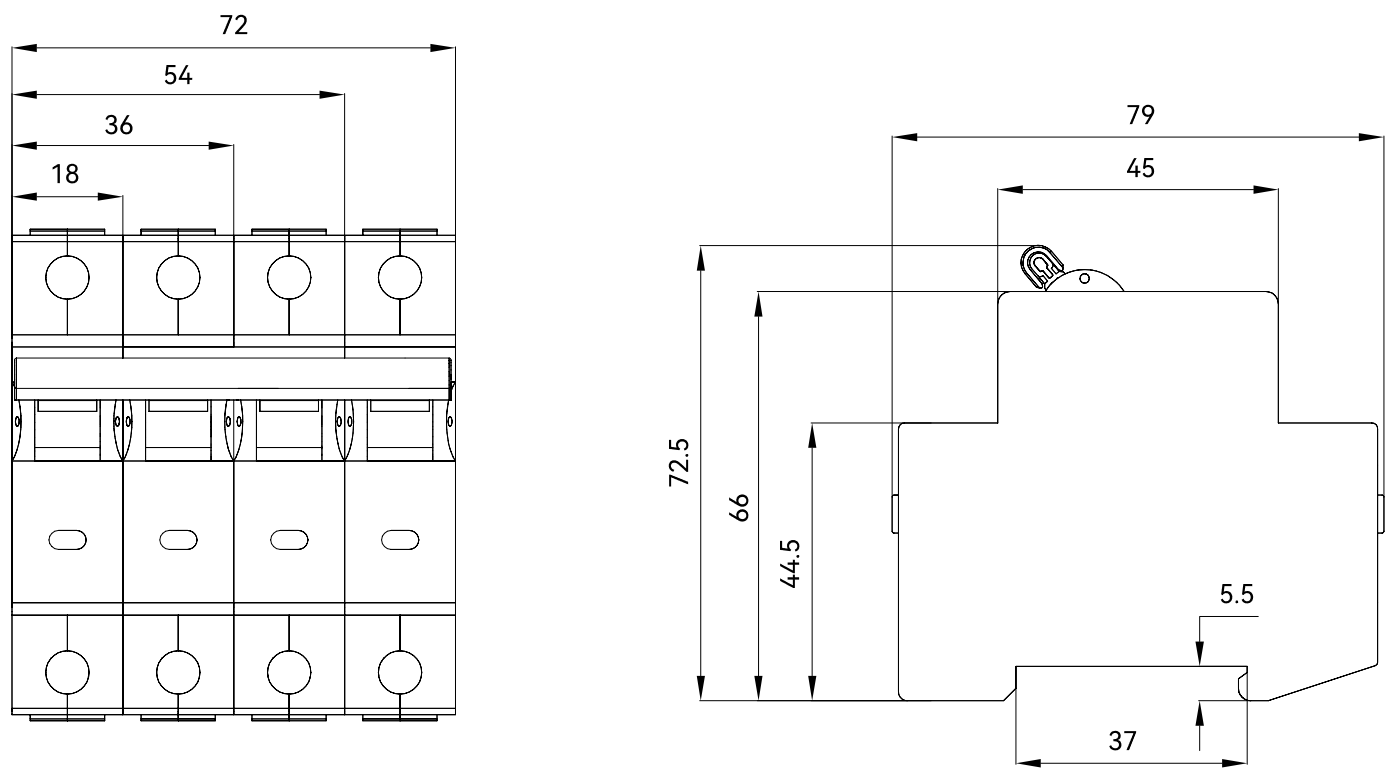

Appearance and dimensions
WHKB1-63 series high breaking mini circuit breaker has the characteristics of advanced structure, reliable performance, high breaking capacity, beautiful and compact appearance. The shell and three parts are made of impact-resistant and high flame retardant materials. It is suitable for places with AC 50Hz or 60Hz, rated working voltage below 400V and rated current below 63A. It is mainly used for lighting of office buildings, residential buildings and similar buildings, overload and short-circuit protection of distribution lines and equipment, and can also be used for infrequent line conversion under normal circumstances.
| WHK | B1 | — | 63 | / | ☐ | ☐ | ☐ |
|---|---|---|---|---|---|---|---|
| Enterprise code | Design serial number | Current rating of shell grade | Number of poles 1, 2, 3, 4 |
Instantaneous trip characteristics: Type C power distribution; D-type motor protection |
Rated current |
◆Main Specifications and Parameters
|
Rated operating voltage (V) |
Rated current (A) |
Number of poles | Rated short circuit breaking capacity |
|---|---|---|---|
| Expected current of test line (A) | |||
| 230/400 |
6、10、16、20、25、 32、40 |
1P, 2P, 3P, 4P | 6000/10000 |
| 400 | 6000/10000 | ||
| 230/400 | 50、63 | 1P, 2P, 3P, 4P | 6000/10000 |
| 400 | 6000/10000 |
◆Overcurrent trip characteristic
|
Test current (A) |
Rated voltage (V) |
Prescribed time | Expected Results | Initial state | remark |
|---|---|---|---|---|---|
| 1.13 In | All values | t ≥ 1h | Non-tripping | Cold state | The current steadily rises to a predetermined value within 5s |
| 1.45 In | All values | t < 1h | Trip | Thermal state | The current steadily rises to a predetermined value within 5s |
| 2.55 In | In ≤ 32 A | 1 < t < 60s < td="">< / t < 60s < > | Trip | Cold state | Close auxiliary switch on current |
| 2.55 In | In > 32A | 1 < t < 120s < td="">< / t < 120s < > | Trip | Cold state | Close auxiliary switch on current |
| 5In (type C) | All values | t ≥ 0.1 s | Non-tripping | Cold state | Close auxiliary switch on current |
| 10In (type C) | All values | t < 0.1 s | Trip | Cold state | Close auxiliary switch on current |
| 10In (D type) | All values | t ≥ 0.1 s | Non-tripping | Cold state | Close auxiliary switch on current |
| 14In (D type) | All values | t < 0.1 s | Trip | Cold state | Close auxiliary switch on current |
◆ Comply with standards IEC60898, GB10963.1
◆ Use temperature:-35 ℃ + 70 ℃, the average mixing degree within 24 hours does not exceed + 35 ℃
◆ Altitude ≤ 2000m
◆ Atmospheric conditions: The relative humidity of the air at the installation site is ≤ 50% at + 40 ℃, and the maximum is 90%.
Unit: mm
