WHKLR Fuse Group Of Isolation Switch

Product Details

Model and Meaning

Technical Specifications

Appearance and dimensions

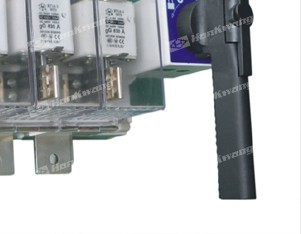

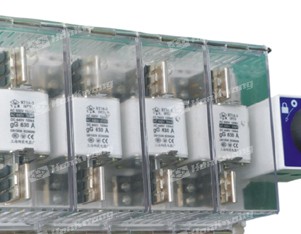

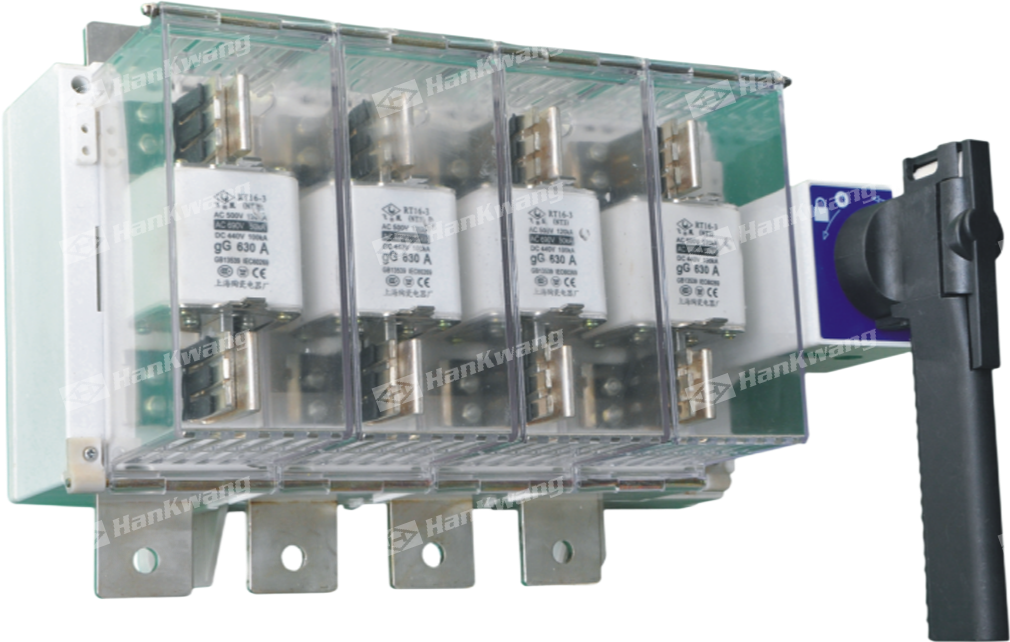

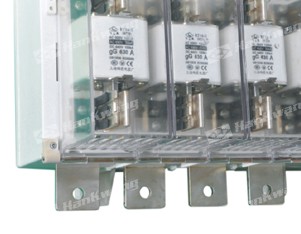

The fuse group of isolation switch is a multi-pole, manually operated switch. The operating mechanism is an acceleration mechanism with spring energy storage and instantaneous release. The instantaneous connection and disconnection of the multi-terminal contact structure has nothing to do with the speed of the operating handle, which greatly improves various electrical and mechanical properties. The disconnector fuse group can ensure that the circuit is turned on and off with load, and has reliable safety breaking protection against overcurrent or short circuit, and the open state is clearly visible.

WHK	LR	—	☐

Wuxi Hanguang Electric Company Limited	Disconnector fuse set		Rated operating current

You can call technical consultation: 0510-83320895

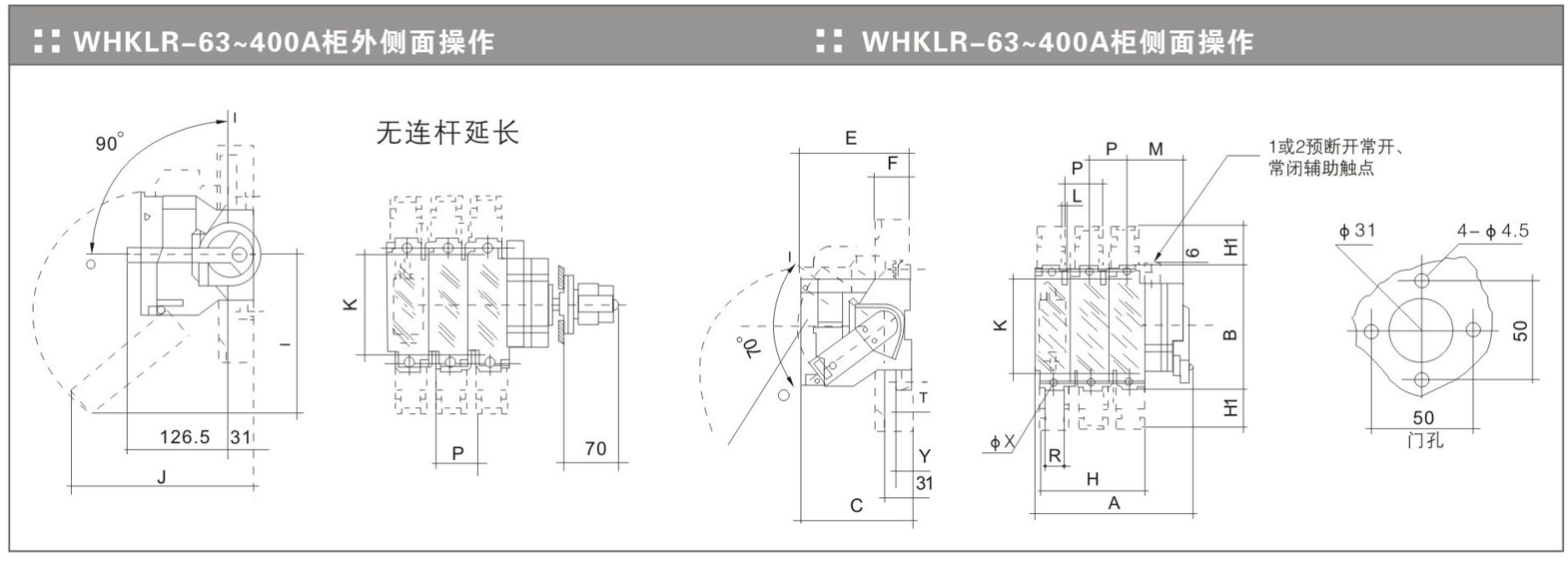

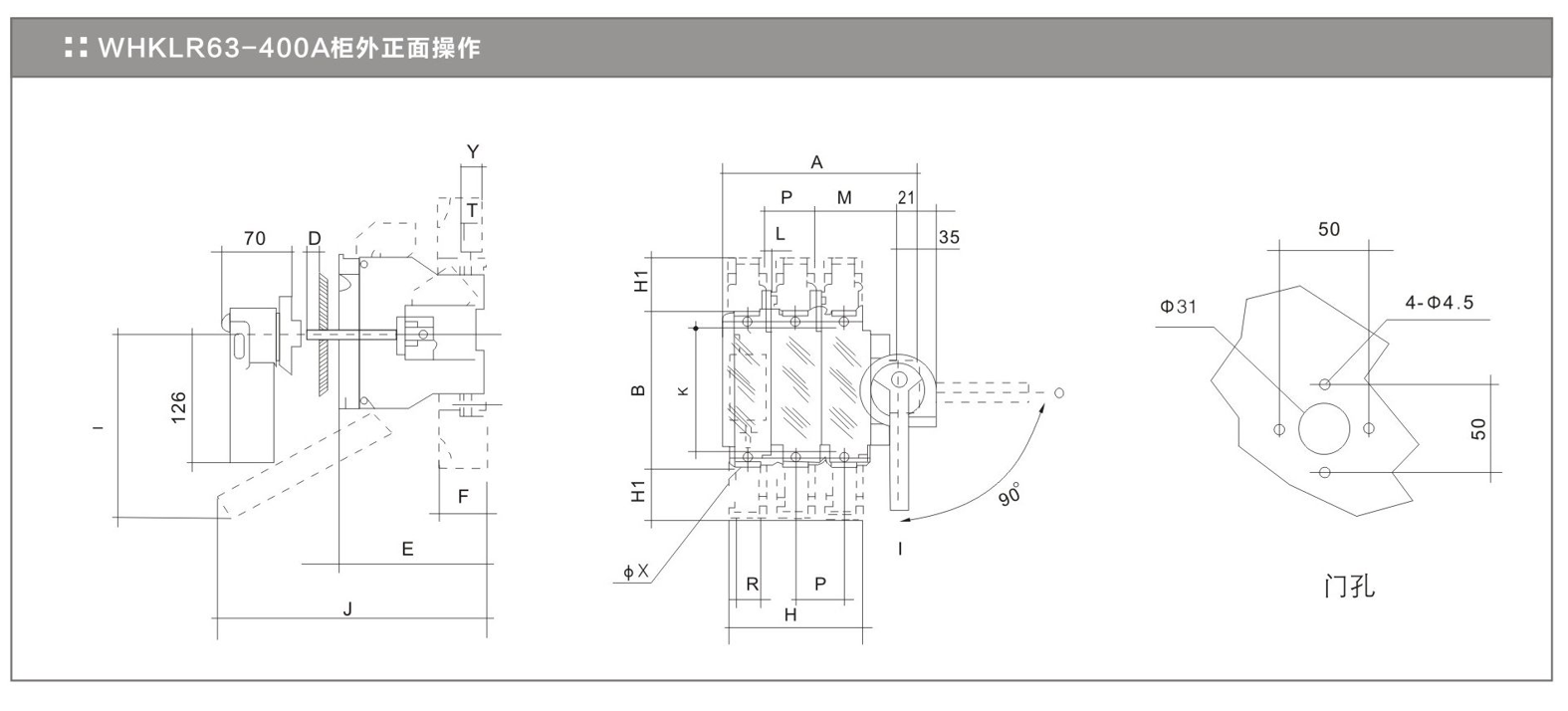

WHKLR-63~400A	Fuse size	A	B	D	E	F	H	H1	I	J	K	L	M	P	R	T	φX	Y
63A/3	0~00C	152	118	20-30	117				159	145	106	5.4	62.5	32
63A/4	0~00C	184	118	20-30	117				159	145	106	5.4	62.5	32
160A/3	0~00	164	162	28-30	126	44	108	53	141	189	127	5.4	65	36	20	2.5	8.5	19.5
160A/4	0~00	200	162	28-30	126	44	144	53	141	189	127	5.4	65	36	20	2.5	8.5	19.5
250A/3	1	236	195	28-30	146	65	180	75	185	251	162	6.4	90.5	60	32	2.5	11	19.5
250A/4	1	296	195	28-30	146	65	240	75	185	251	162	6.4	90.5	60	32	2.5	11	19.5
400A/3	2	278	205	28-30	149	65	192	75	200	260	172	6.4	121	66	50	3	11	20
400A/4	2	344	205	28-30	149	65	258	75	200	260	172	6.4	121	66	50	3	11	20

WHKLR-63~400A	Fuse size	A	B	C	E	F	H	H1	I	J	K	L	M	P	R	T	φX	Y
63A/3	0~00C	133	118	134	126.5		116.5		159	145	106	5.4	36	32
63A/4	0~00C	164	118	117	126.5		116.5		159	145	106	5.4	36	32
160A/3	0~00	150	162	173	126.5	44	108	53	141	189	127	5.4	38	36	20	2.5	8.5	19.5
160A/4	0~00	186	162	173	126.5	44	144	53	141	189	127	5.4	38	36	20	2.5	8.5	19.5
250A/3	1	253	195	173	146	65	180	75	185	251	162	6.4	81	60	32	2.5	11	19.5
250A/4	1	313	195	173	146	65	240	75	185	251	162	6.4	81	60	32	2.5	11	19.5
400A/3	2	271	205	173	149	65	192	75	200	260	172	6.4	86	66	50	3	11	20
400A/4	2	337	205	173	149	65	250	75	200	260	172	6.4	86	66	50	3	11	20

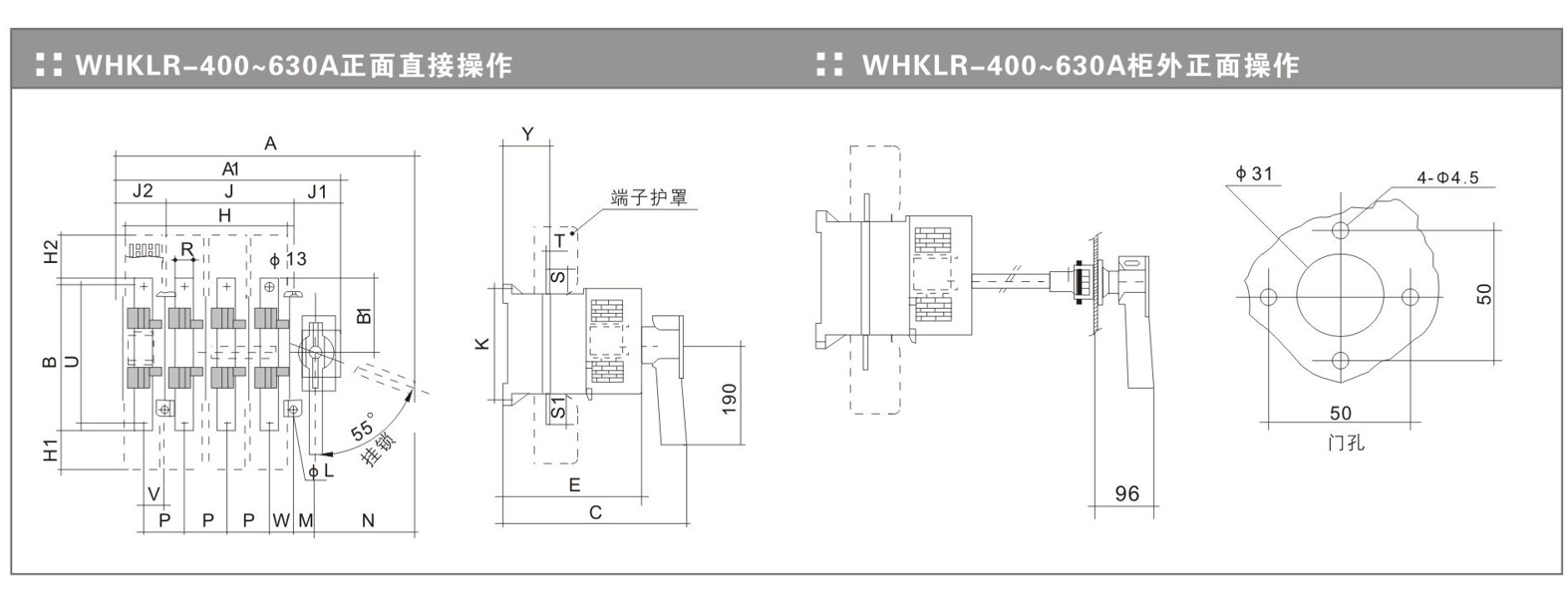

WHKLR-400~630A	Fuse size	A	A1	B	B1	C	E	H	H1	H2	J	J2	J1	K	M	N	P	R	S	S1	T	V	U	W	φX	Y
400A/3	2	414	285	238	115	307	221	190	71	79	210	70	65	180	32.5	162	65	32	35	43	5	40.5	208	39.5	7	69
400A/4	2	474	345	238	115	307	221	255	71	79	210	70	65	180	32.5	162	65	32	35	43	5	24.5	208	39.5	7	69
630A/3	3	470	345	300	150	348	268	235	85	85	250	100	76	250	38.5	162	80	50	50	50	7	45.5	260	44.5	9	72
630A/4	3	550	425	300	150	348	268	315	85	85	250	100	76	250	38.5	162	80	50	50	50	7	34.5	260	44.5	9	72

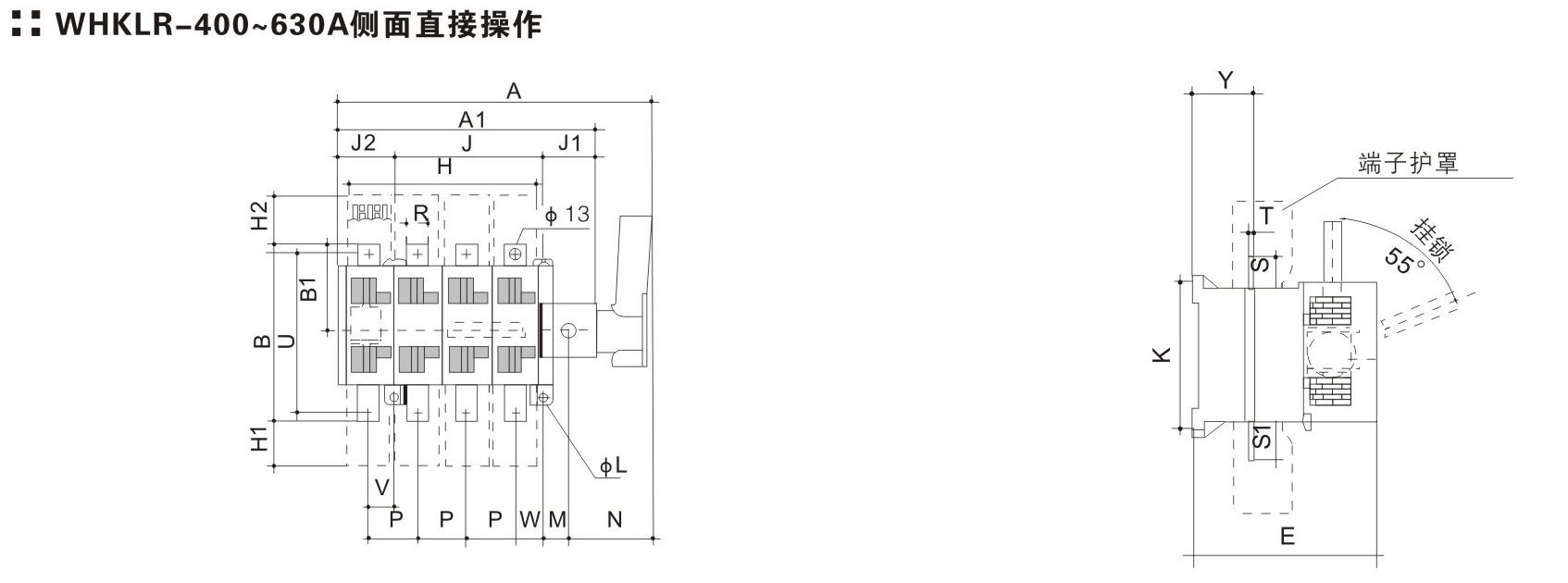

Specification	Fuse size	Shape dimensions and installation dimensions
WHKLR-400-630A		A	A1	B	B1	E	H	H1	H2	J	J2	J1	K	M	N	P	R	S	S1	T	V	U	W	φL	Y
400A/3	2	500	285	238	115	221	190	71	79	210	70	65	180	32.5	119	65	32	30	43	5	40.5	208	39.5	7	69
400A/4	2	560	345	238	115	221	255	71	79	210	70	65	180	32.5	119	65	32	30	43	5	24.5	208	39.5	7	69
630A/3	3	550	345	300	150	268	235	85	85	250	100	76	250	38.5	119	80	50	50	50	7	45.5	260	44.5	9	72
630A/4	3	630	425	300	150	268	315	85	85	250	100	76	250	38.5	119	80	50	50	50	7	34.5	260	44.5	9	72
