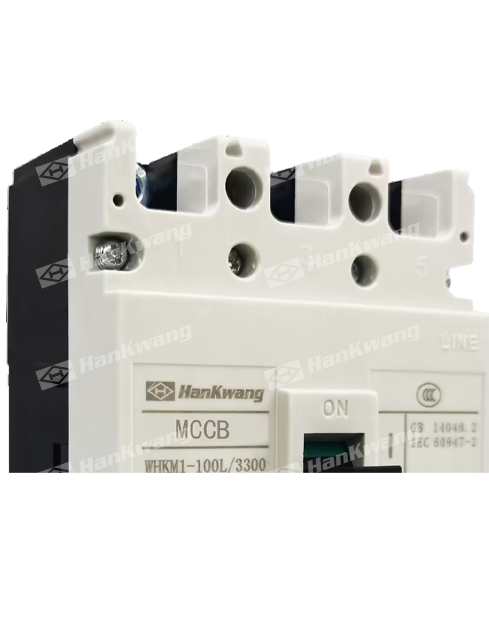

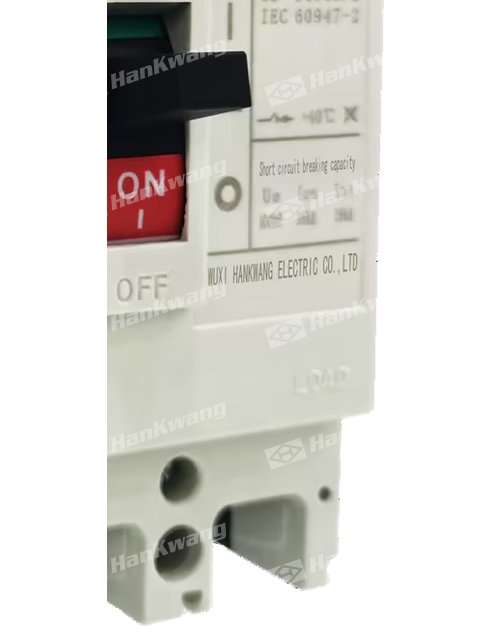

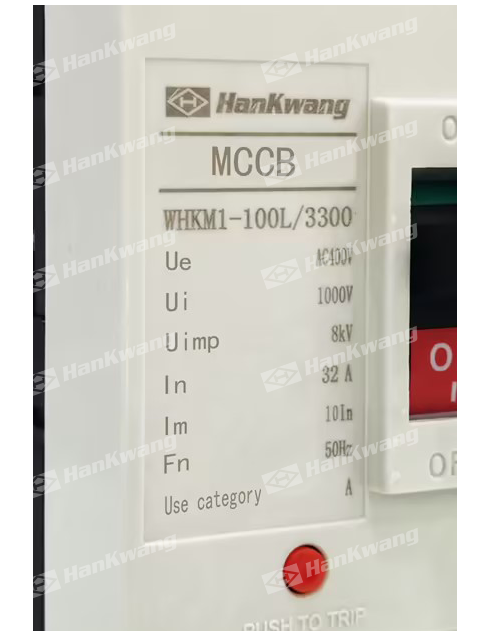

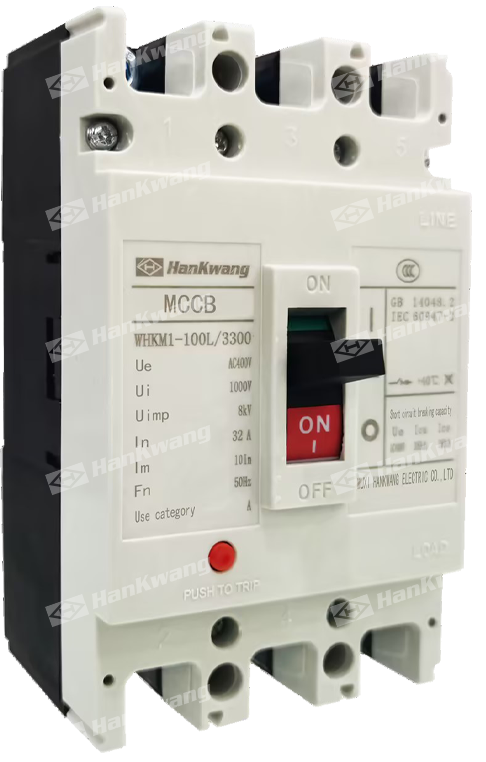

WHKM1 MCCB

The WHKM1 series MCCB (hereinafter referred to as circuit breakers) are a new type of circuit breaker developed by our company usnternational design and manufacturing technologies. With a rated insulation voltage of 1000V, they are suitable for circuits with an AC frequency of 50Hz, a ratting voltage of 690V or less, and a rated operating current up to 800A, for infrequent switching and infrequent motor starting. The circuit breaure overload, short-circuit, and undervoltage protection functions, capable of protecting circuits and power supply equipment from damage.

Product Details

Model and Meaning

Technical Specifications

Appearance and dimensions

Other

Purpose and scope of application

WHKM1 series MCCB (hereinafter referred to as circuit breaker) is one of the new circuit breakers developed and developed by our company using international advanced design and manufacturing technology. Its rated insulation voltage is 1000V, which is suitable for infrequent conversion and infrequent motor starting in circuits with AC 50Hz, rated working voltage 690V and below, and rated working current to 800A. Circuit breakers have overload, short circuit and undervoltage protection functions, which can protect lines and power equipment from damage.

According to its rated limit short circuit breaking capacity (Icu), circuit breakers are divided into three categories: L-type (standard type), M-type (higher breaking type) and H-type (high breaking type). This circuit breaker has the characteristics of small volume, high breaking, short flight arc (zero flight arc in some specifications) and anti-vibration, so it is an ideal product for land and ship use.

The circuit breaker can be installed vertically (i.e. vertically) or horizontally (i.e. horizontally).

This circuit breaker cannot be poured into lines, that is, only 1, 3 and 5 can be connected to power lines, and 2, 4 and 6 can be connected to load lines.

This circuit breaker has isolation function, and the symbol is:

This circuit breaker meets the following standards:

IEC60947-2 and GB/T14048.2 Low voltage circuit breaker

IEC60947-4 and GB/T14048.4 Contactors and motor starters

IEC60947-5. 1 and GB/T14048.5 Electromechanical control circuit electrical appliances

Applicable working environment

◆ Altitude 2000m and below;

◆ The surrounding medium temperature is not higher than + 40 °C (+ 45 °C for marine products) and not lower than-5 °C;

◆ Pollution level 3;

◆ Can tolerate the effects of humid air;

◆ Can withstand the influence of salt spray and oil spray;

◆ Can tolerate the effects of mold;

◆ The maximum inclination is ± 22.5 °;

◆ It can work reliably when subjected to normal vibration of the ship;

◆ Can work reliably under earthquake conditions (4g);

◆ In a medium without explosion hazard, and where the medium does not have gases and conductive dust sufficient to corrode metals and destroy insulation;

◆ In places where there is no rain or snow.

WHK	M	1	—	☐	☐	☐	/	☐	☐	☐

Enterprise code	Plastic housing Type circuit breaker	Design serial number		Shell frame grade Rated current	Rated limit Short circuit break Competency Level	Operation mode (2		Number of poles	Release device mode and Annex code (see Table 2)	Use Code (1

Note: 1) Circuit breaker for power distribution has no code: Circuit breaker for motor protection is represented by 2.
2) Direct operation has no code: electric operation is represented by P; Turning the handle operation is indicated by Z.

Model	Enclosure rating Rated current (A)	Rated current (A)	Rated insulation voltage (V)	Rated shock tolerance Voltage (KV)	Rated short-circuit breaking short-circuit capacity kA 400V	Rated short-circuit breaking capacity kA 690V	Rated operating circuit-breaking short-circuit capacity kA 400V	Rated operating circuit-breaking capacity kA 690V	Service life (times)		Dimensions of the shape			Installation dimensions (in front of the board)
Model	Enclosure rating Rated current (A)	Rated current (A)	Rated insulation voltage (V)	Rated shock tolerance Voltage (KV)	Rated short-circuit breaking short-circuit capacity kA 400V	Rated short-circuit breaking capacity kA 690V		Rated operating circuit-breaking capacity kA 690V	Electrical	Mechanical	L	W 3P/4P	H	A	B	4-φd
WHKM1-63L	63	10、16、20、25 32、40、50、63	1000	8	28	-	20	-	7000	10000	135	78	73.5	25	117	φ3.5
WHKM1-63M	63	10、16、20、25 32、40、50、63	1000	8	50	-	38	-	7000	10000	135	78/103	81.5	25	117	φ3.5
WHKM1-100L	100	10、16.20, 25、32、40、50、 63、BO、100	1000	8	35	-	26	-	7000	10000	150	92	68	30	129	φ4.5
WHKM1-100M					50	20	38	10	7000	10000	150	92/122	86
WHKM1-100H					75	20	50	10	7000	10000	150	92/122	86
WHKM1-160L	160	100、125 140、160	1000	8	35	-	26	-	7000	10000	150	92	68	30	129	φ4.5
WHKM1-160M					50	20	38	10	7000	10000	150	92/122	86
WHKM1-160H					75	20	50	10	7000	10000	150	92/122	86
WHKM1-250L	250	100、125 140、160 180、200 225、250	1000	8	35	-	26	-	7000	10000	165	107	86	35	126	φ4.5
WHKM1-250M					50	20	38	10	7000	10000	165	107/142	103
WHKM1-250H					75	20	50	10	7000	10000	165	107/142	103
WHKM1-40DL	400	225、250、315, 350、400	1000	12	50	-	38	-	7000	10000	257	150/198	105	44	194	φ7
WHKM1-400M					65	20	49	10	7000	10000	257	150/198	105
WHKM1-400H					85	20	65	10	7000	10000	257	150/198	105
WHKM1-630L	630	400、500、630	1000	12	65	-	42	-	7000	10000	270	182/240	110	58	200	φ7
WHKM1-630M					75	20	50	15	7000	10000	270	182	110
WHKM1-630H					85	20	65	15	7000	10000	270	182	110
WHKM1-800M	800	630,700、800	1000	12	75	20	56	15	7000	10000	275	210	103	70	243	φ7
WHKM1-800H	800	630,700、800	1000	12	85	20	65	15	7000	10000	275	210	103	70	243	φ7

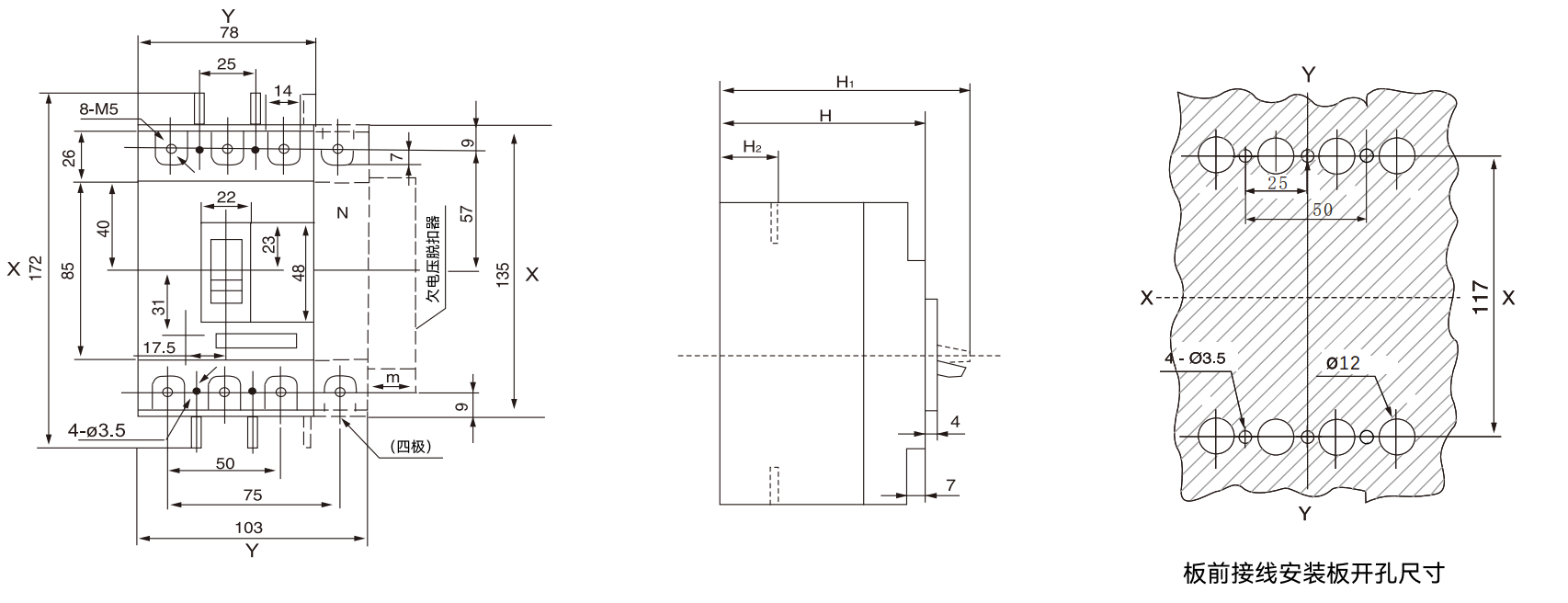

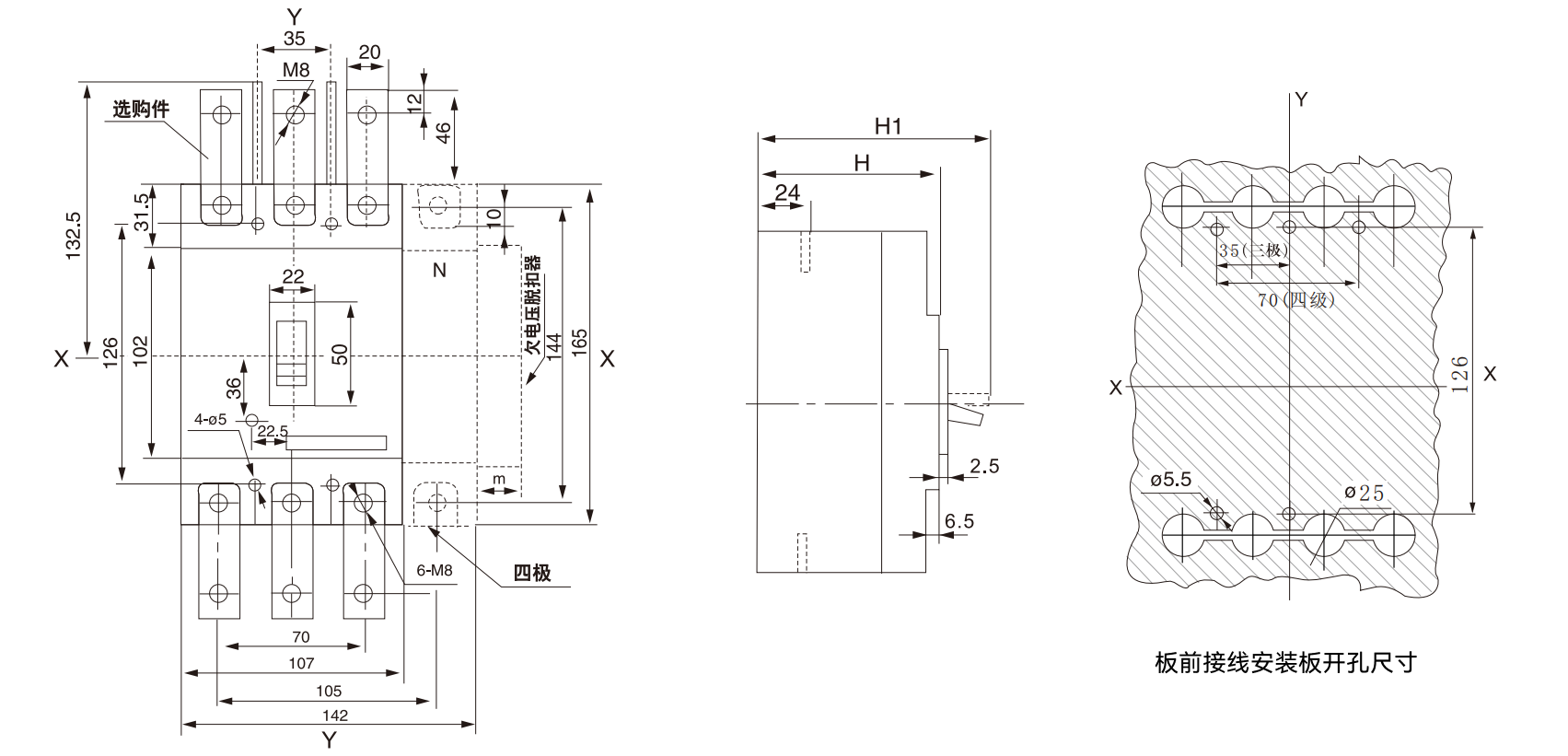

WHKM1-63 (L, M) board front wiring size (three-pole, four-pole) X-X, Y-Y three-pole circuit breaker center

Model	H	H1	H2
WHKM1-63L	73.5	90.5	20.5
WHKM1-63M	81.5	98.5	28.5
WHKM1-63四极	81.5	98.5	28.5

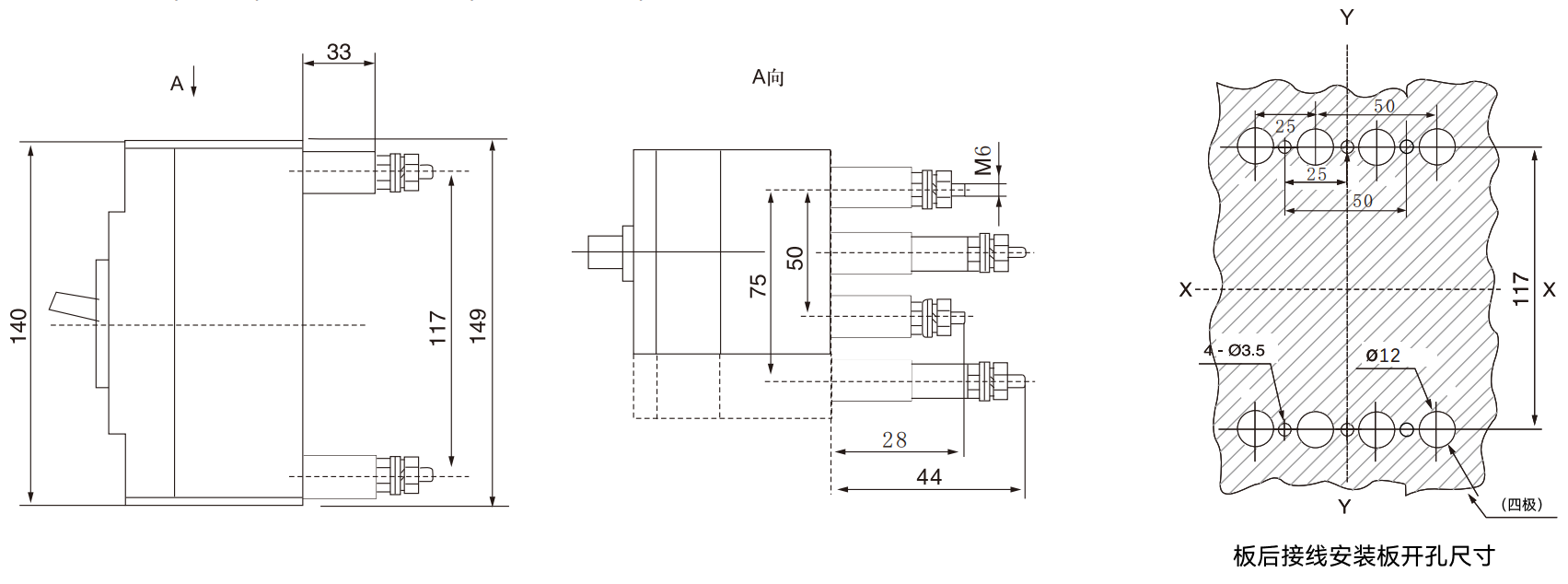

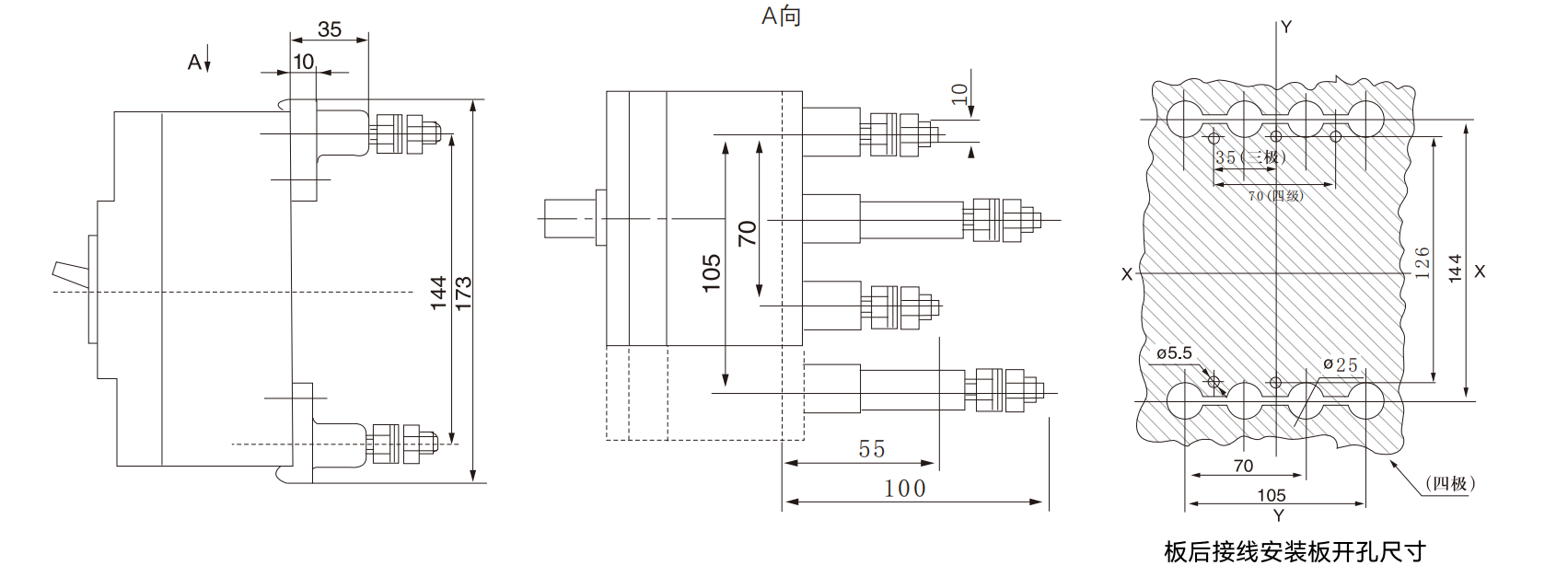

WHKM1-63 (L, M) board rear wiring size (three-pole, four-pole) X-X, Y-Y three-pole circuit breaker center

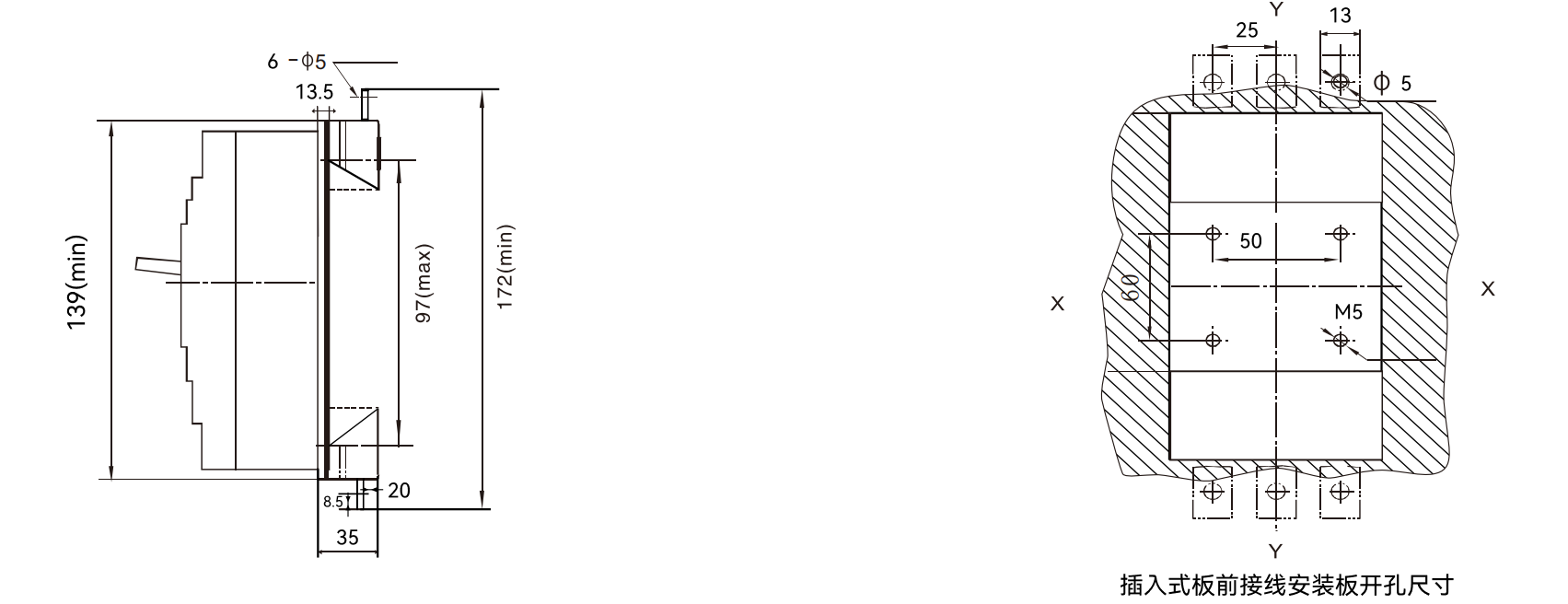

WHKM1-63 (L, M) Plug-in board front wiring size (three poles) X-X, Y-Y are the center of three pole circuit breaker

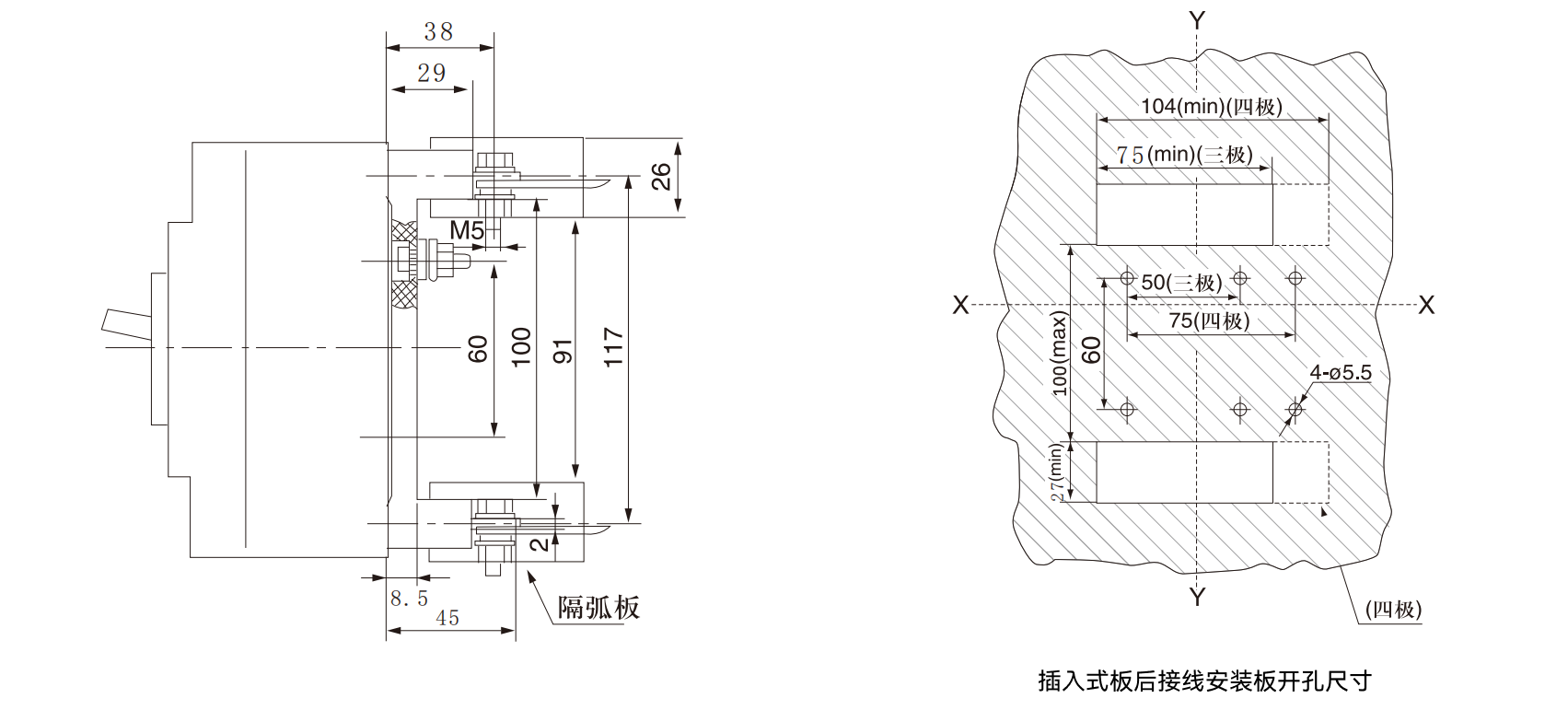

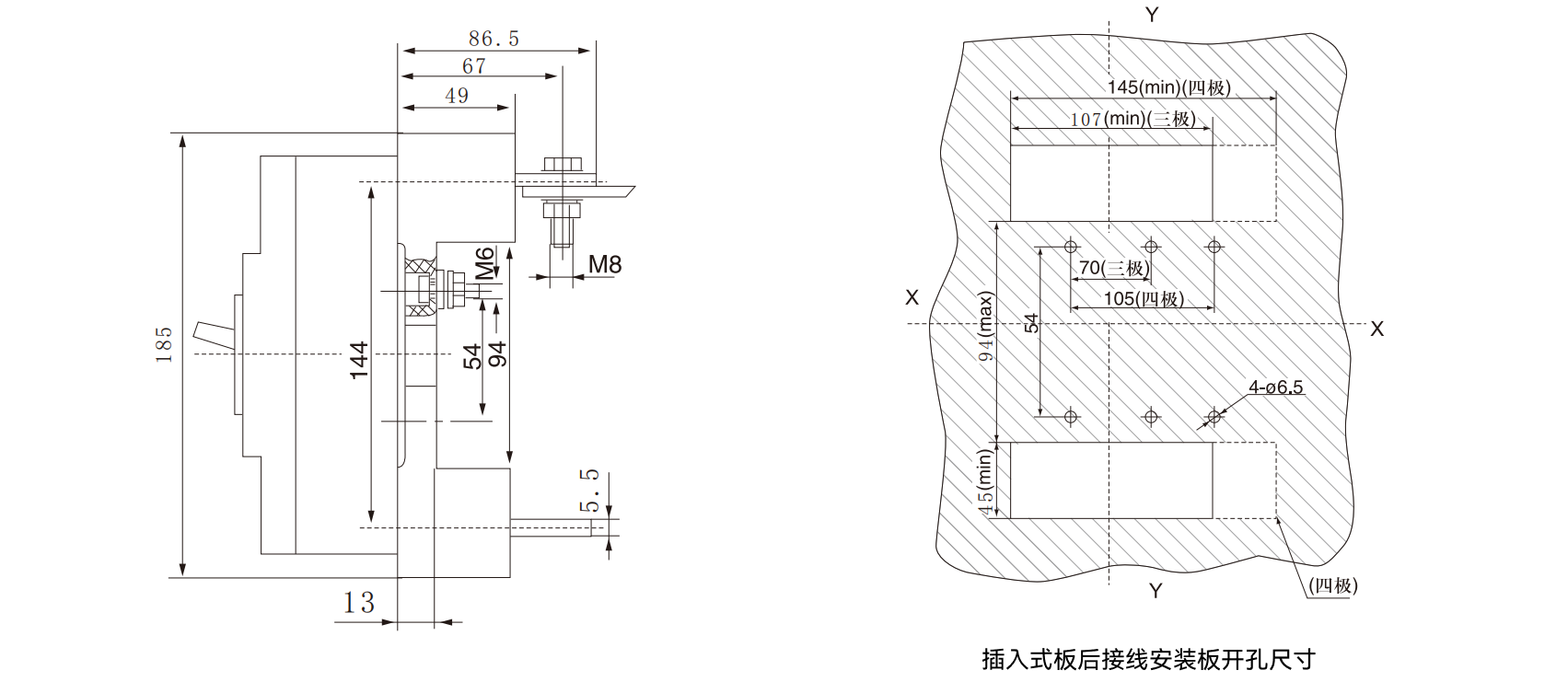

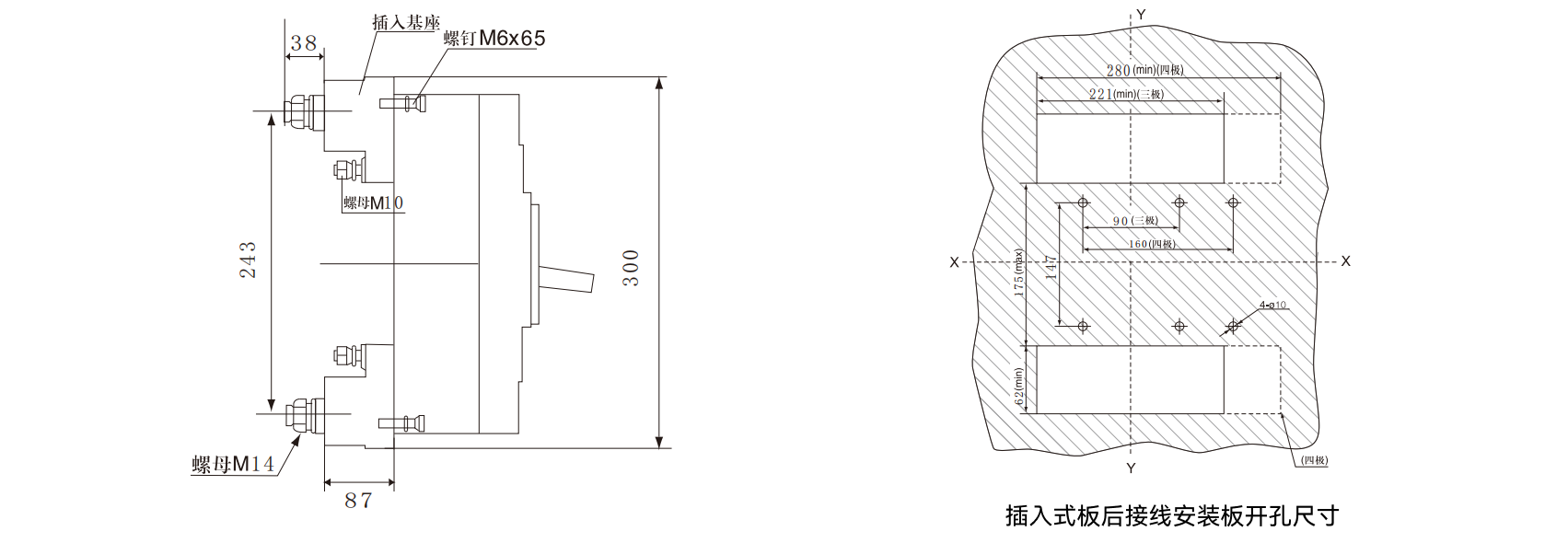

WHKM1-63 (L, M) Plug-in board rear wiring size (three-pole, four-pole) X-X, Y-Y three-pole circuit breaker center

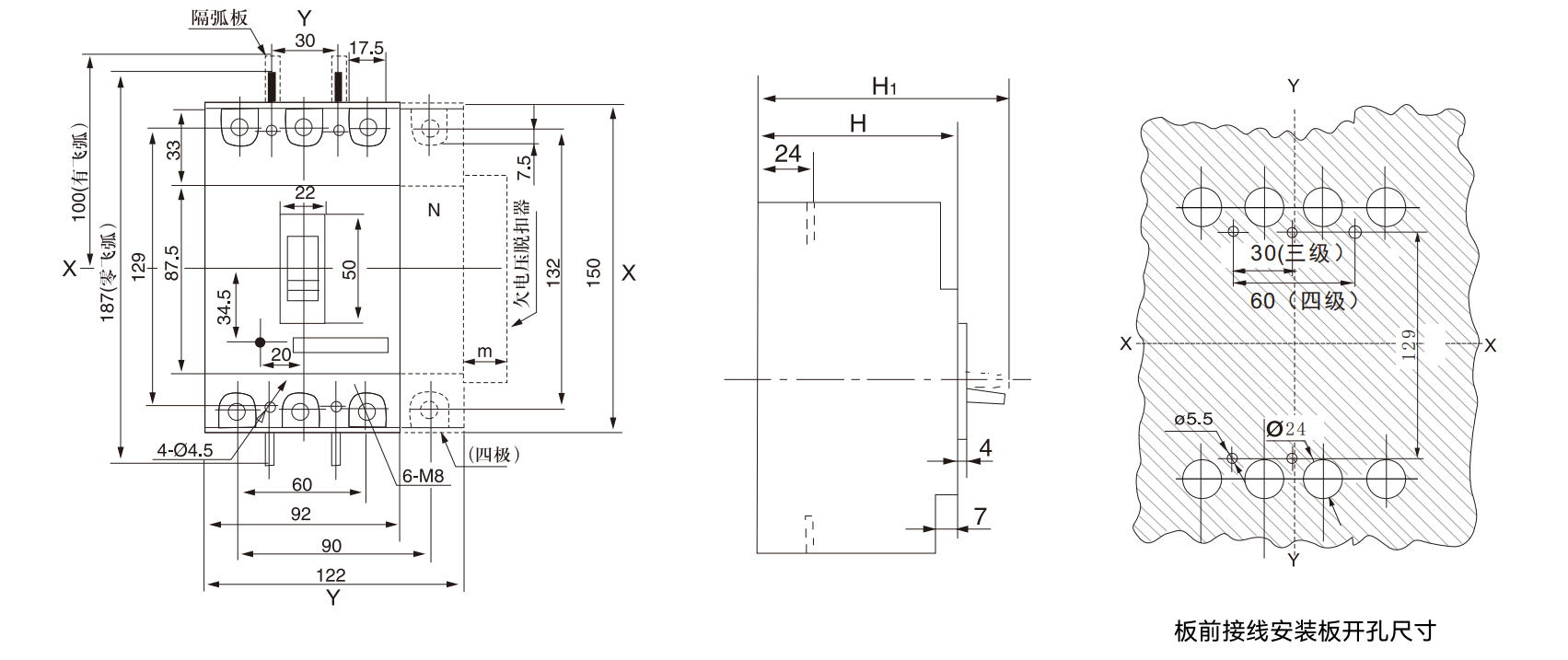

WHKM1-100/160 (L, M, H) board front wiring size (three-pole, four-pole) X-X, Y-Y three-pole circuit breaker center

Model	H	H1
WHKM1-100/160L	68	86
WHKM1-100/160M、WHKM1-100/160H	86	104

WHKM1-100/160 (L, M, H) board rear wiring size (three-pole, four-pole) X-X, Y-Y three-pole circuit breaker center

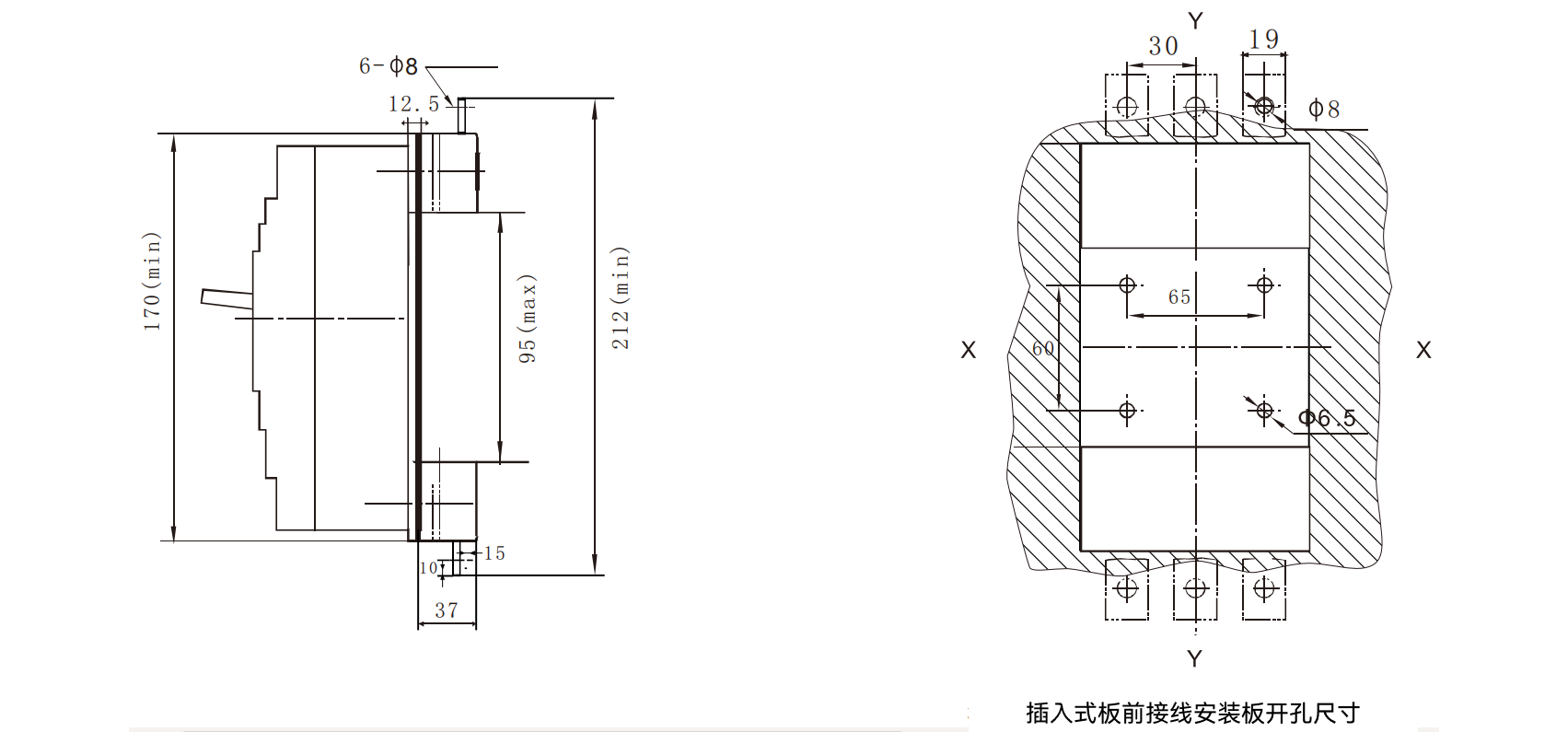

WHKM1-100/160 (L, M, H) Plug-in board front wiring size (three poles) X-X, Y-Y are the center of three pole circuit breaker

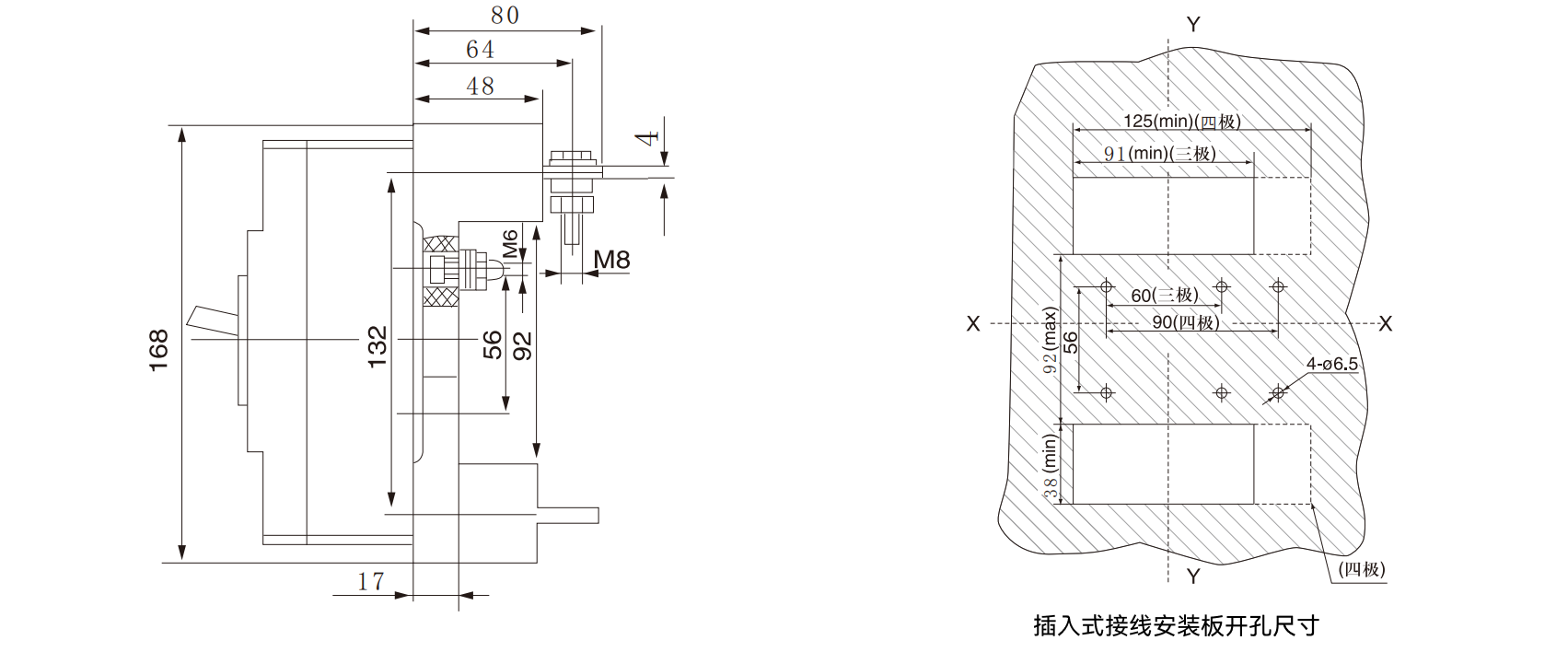

WHKM1-100/160 (L, M, H) Plug-in board rear wiring size (three-pole, four-pole) X-X, Y-Y are the center of three-pole circuit breaker

WHKM1-250 (L, M, H) board front wiring dimensions (three-pole, four-pole) X-X, Y-Y are the center of three-pole circuit breaker

Model	H	H1
WHKM1-250L	86	110
WHKM1-250M、WHKM1-250H	103	127

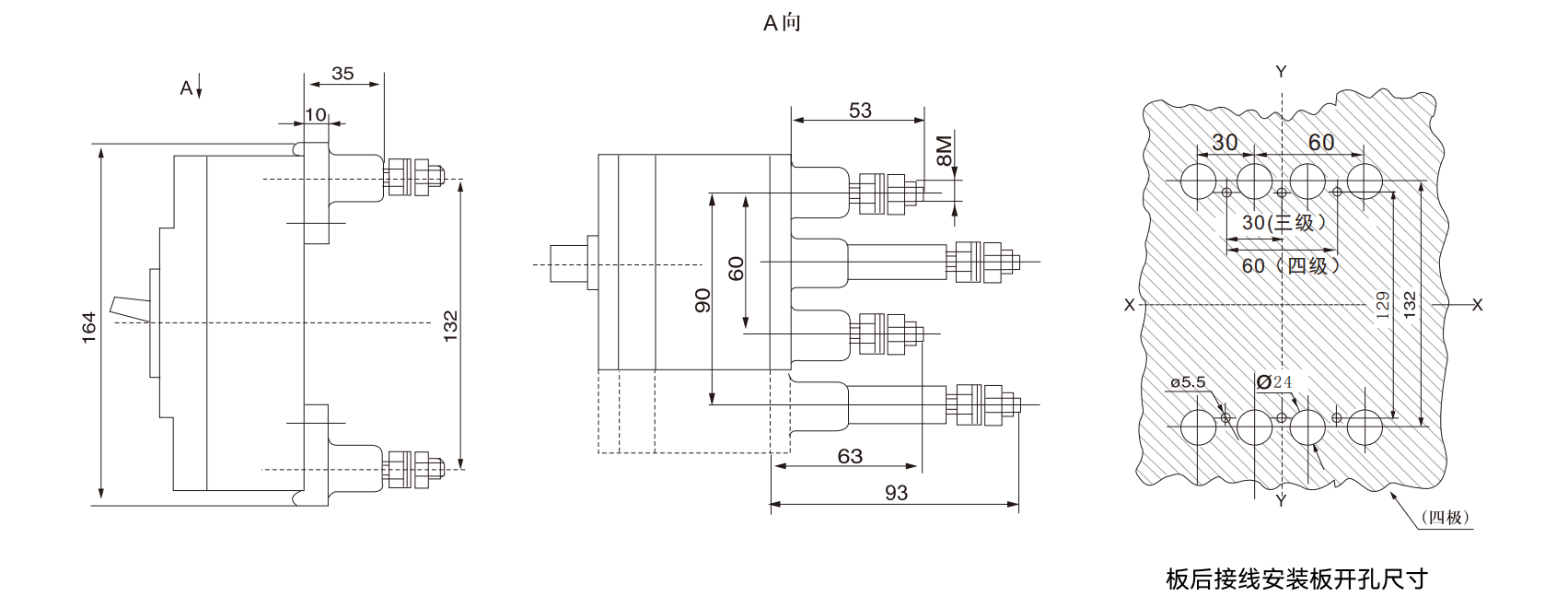

WHKM1-250 (L, M, H) rear wiring dimensions (three-pole, four-pole) X-X, Y-Y are the center of three-pole circuit breaker

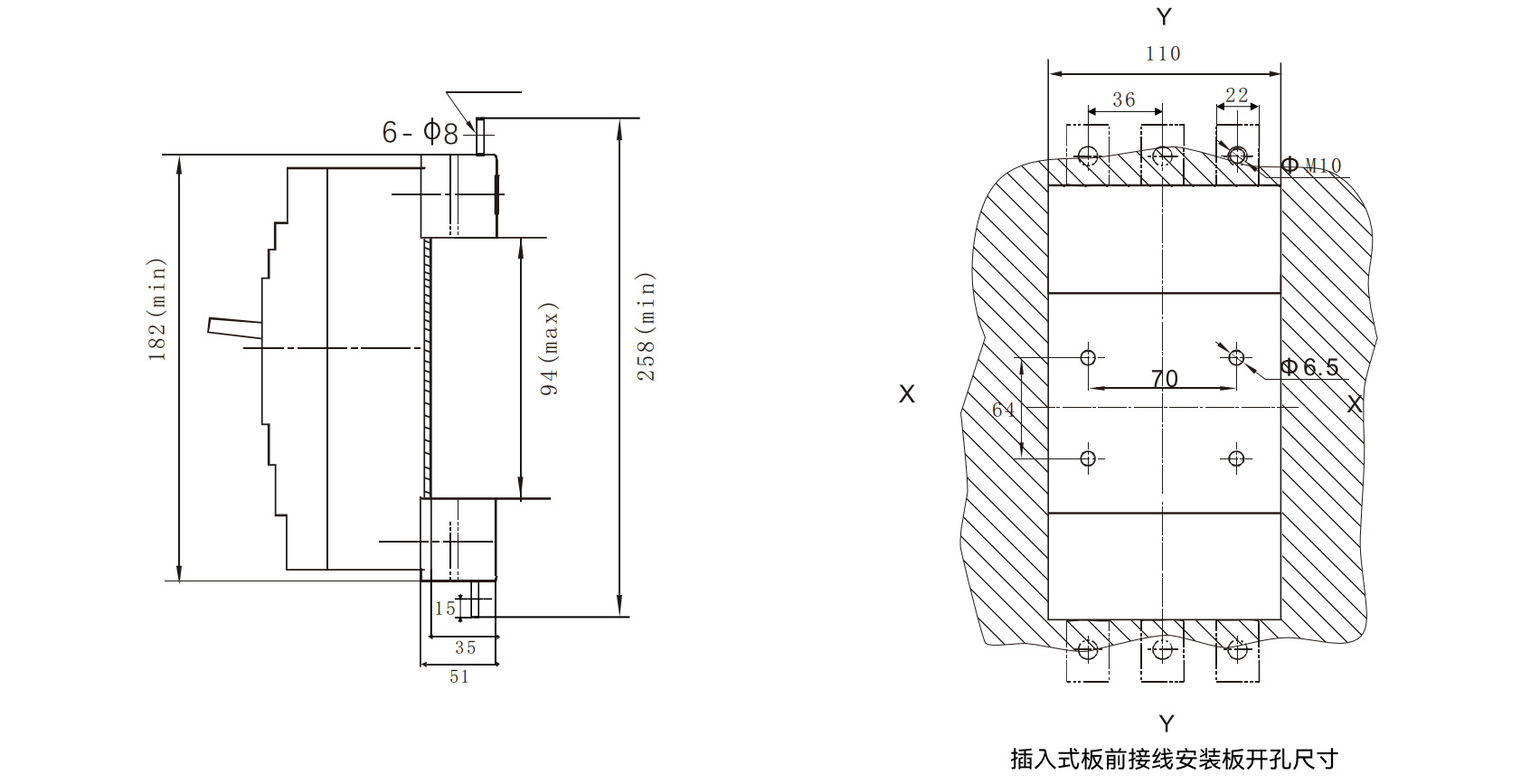

WHKM1-250 (L, M, H) plug-in board front wiring size (three poles) X-X, Y-Y are the center of three pole circuit breaker

WHKM1-250 (L, M, H) Plug-in board rear wiring dimensions (three-pole, four-pole) X-X, Y-Y are the center of three-pole circuit breaker

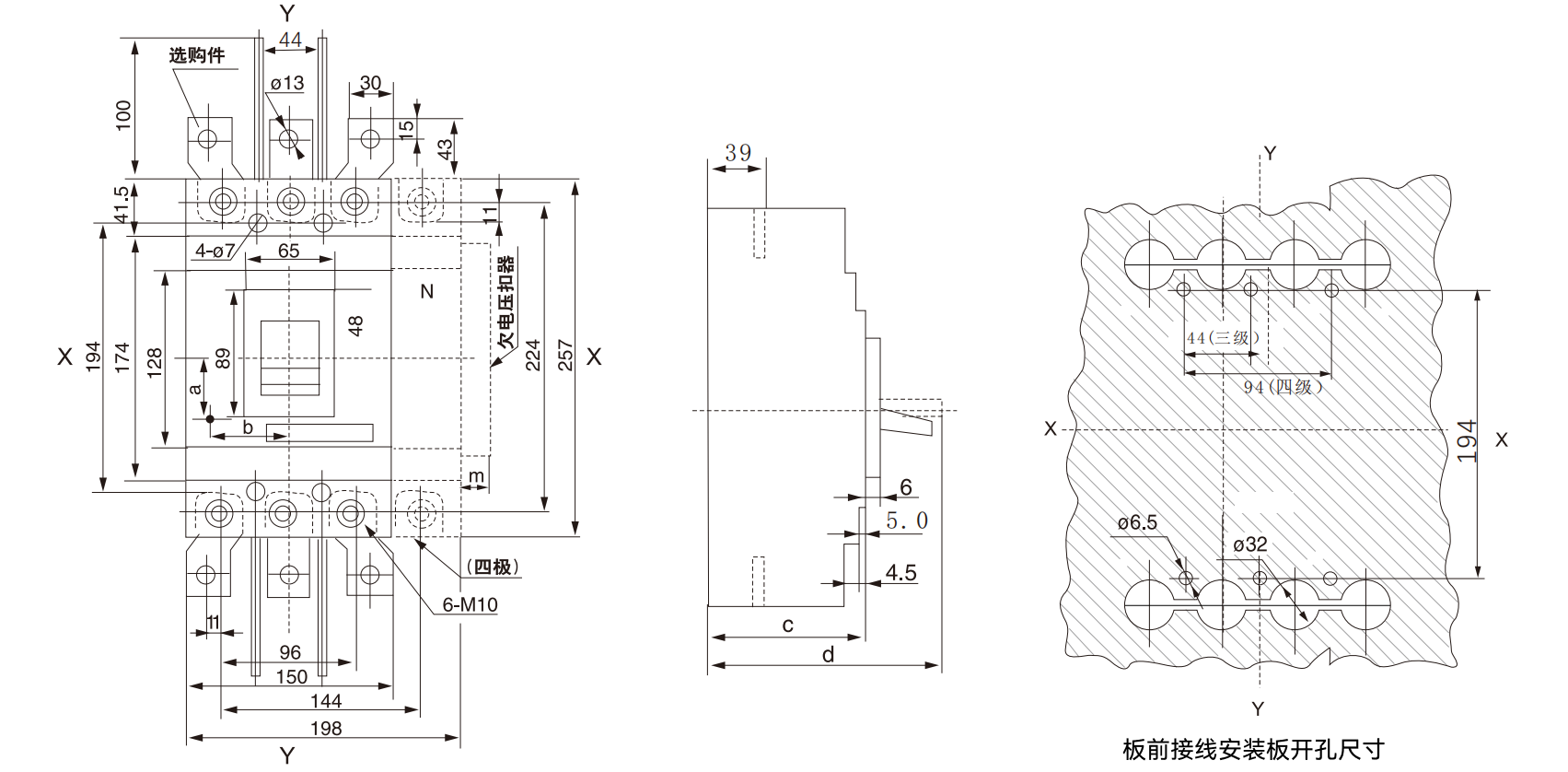

WHKM1-400 (L, M, H) board front wiring dimensions (three-pole, four-pole) X-X, Y-Y are the center of three-pole circuit breaker

Model	a	b	c	d
WHKM1-400	43	57	107	150

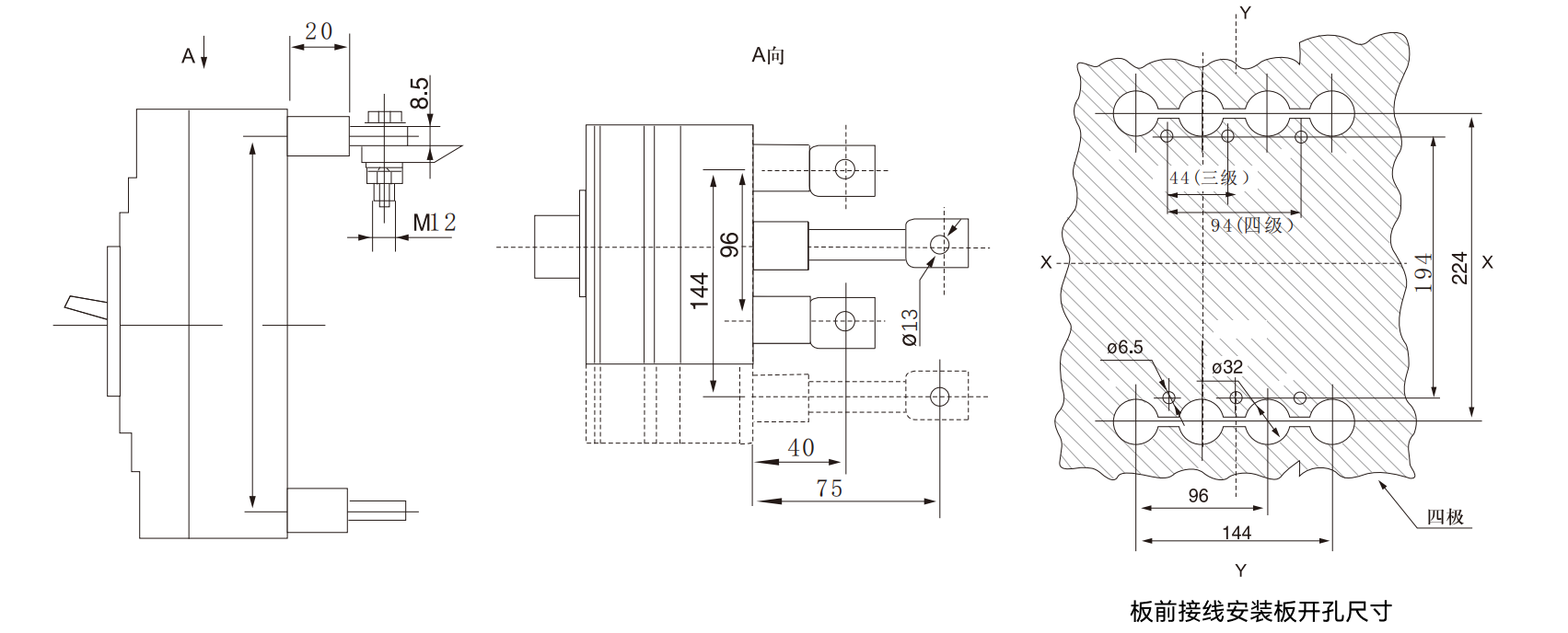

WHKM1-400 (L, M, H) rear wiring dimensions (three-pole, four-pole) X-X, Y-Y are the center of three-pole circuit breaker

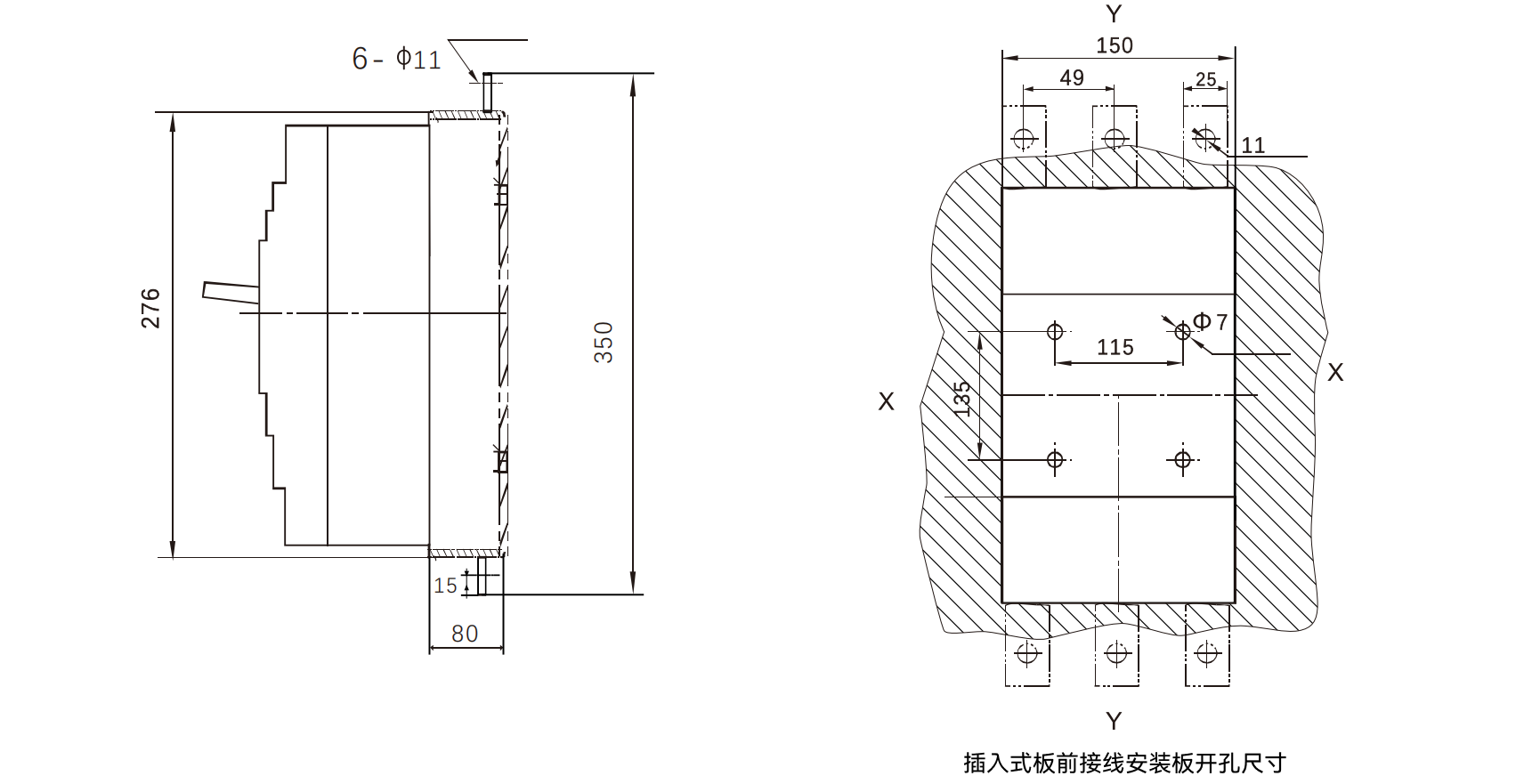

WHKM1-400 (L, M, H) plug-in board front wiring size (three poles) X-X, Y-Y are the center of three pole circuit breaker

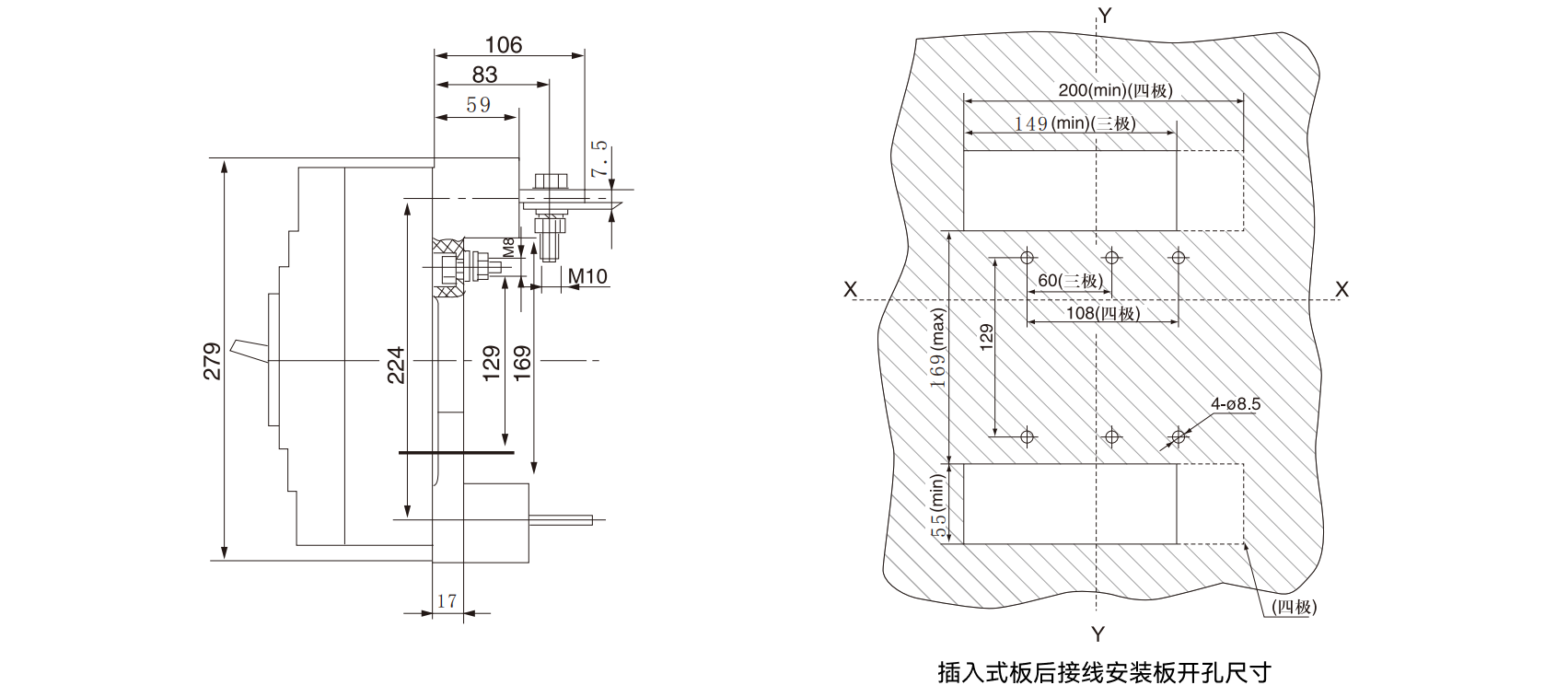

WHKM1-400 (L, M, H) plug-in board rear wiring size (three-pole, four-pole) X-X, Y-Y are the center of three-pole circuit breaker

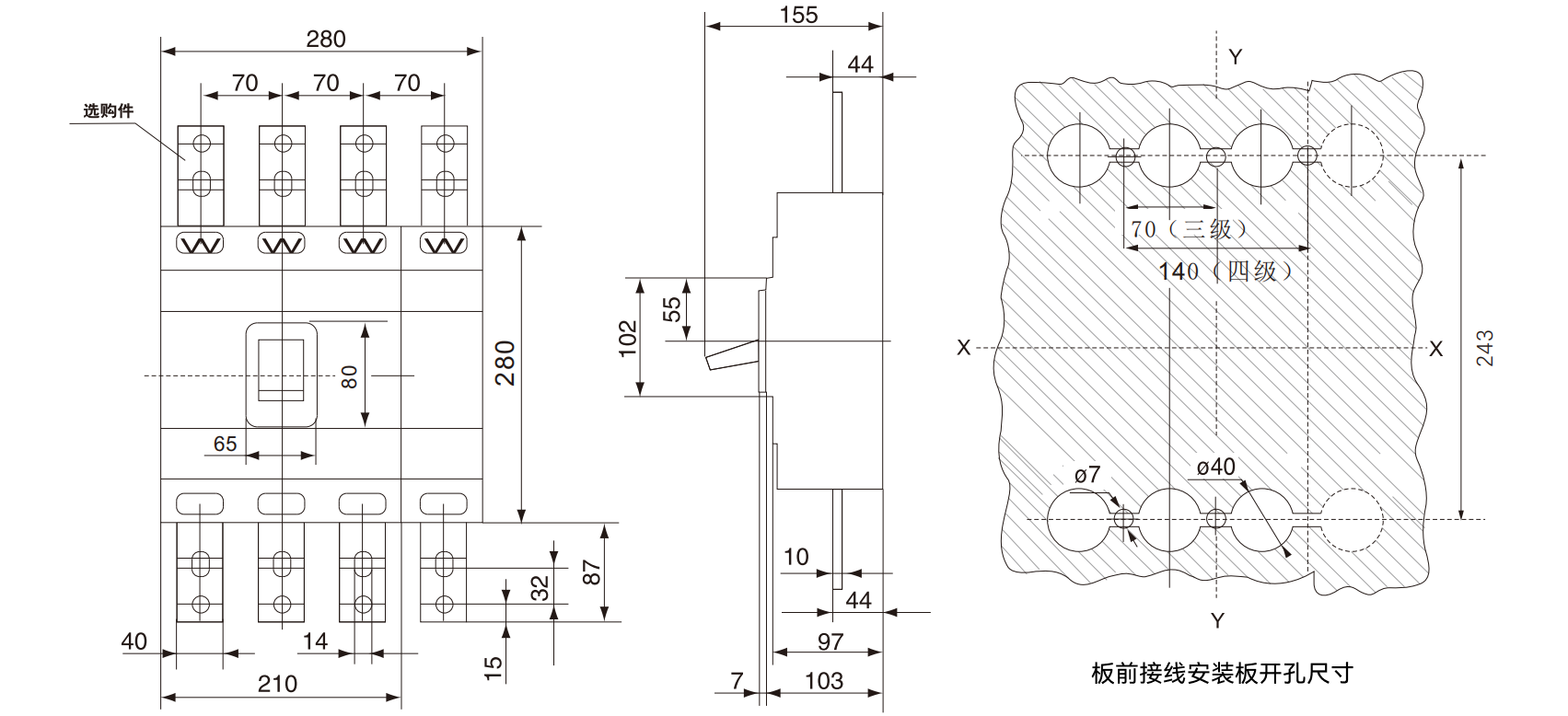

WHKM1-630 (L, M, H) board front wiring dimensions (three-pole, four-pole) X-X, Y-Y are the center of three-pole circuit breaker

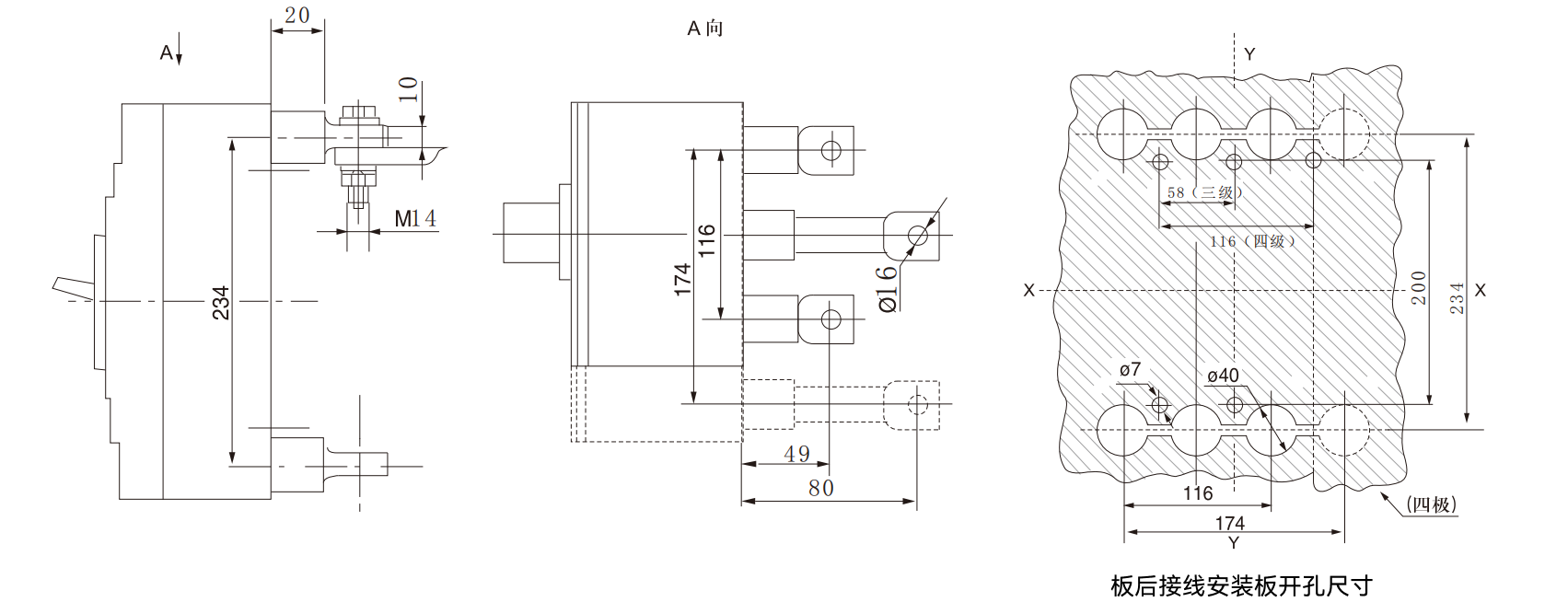

WHKM1-630 (L, M, H) rear wiring dimensions (three-pole, four-pole) X-X, Y-Y are the center of three-pole circuit breaker

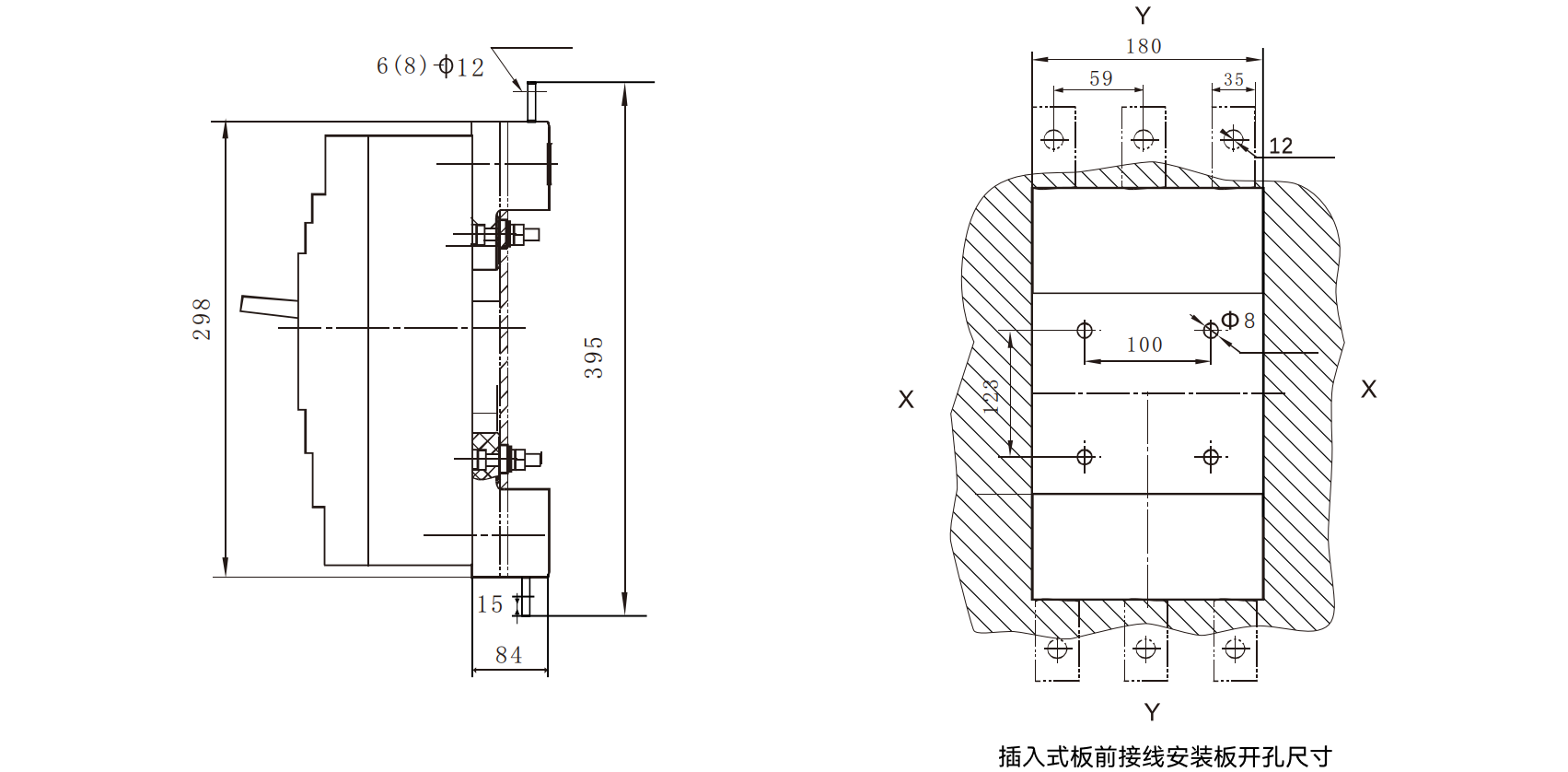

WHKM1-630 (L, M, H) Plug-in board front wiring size (three poles) X-X, Y-Y are the center of three pole circuit breaker

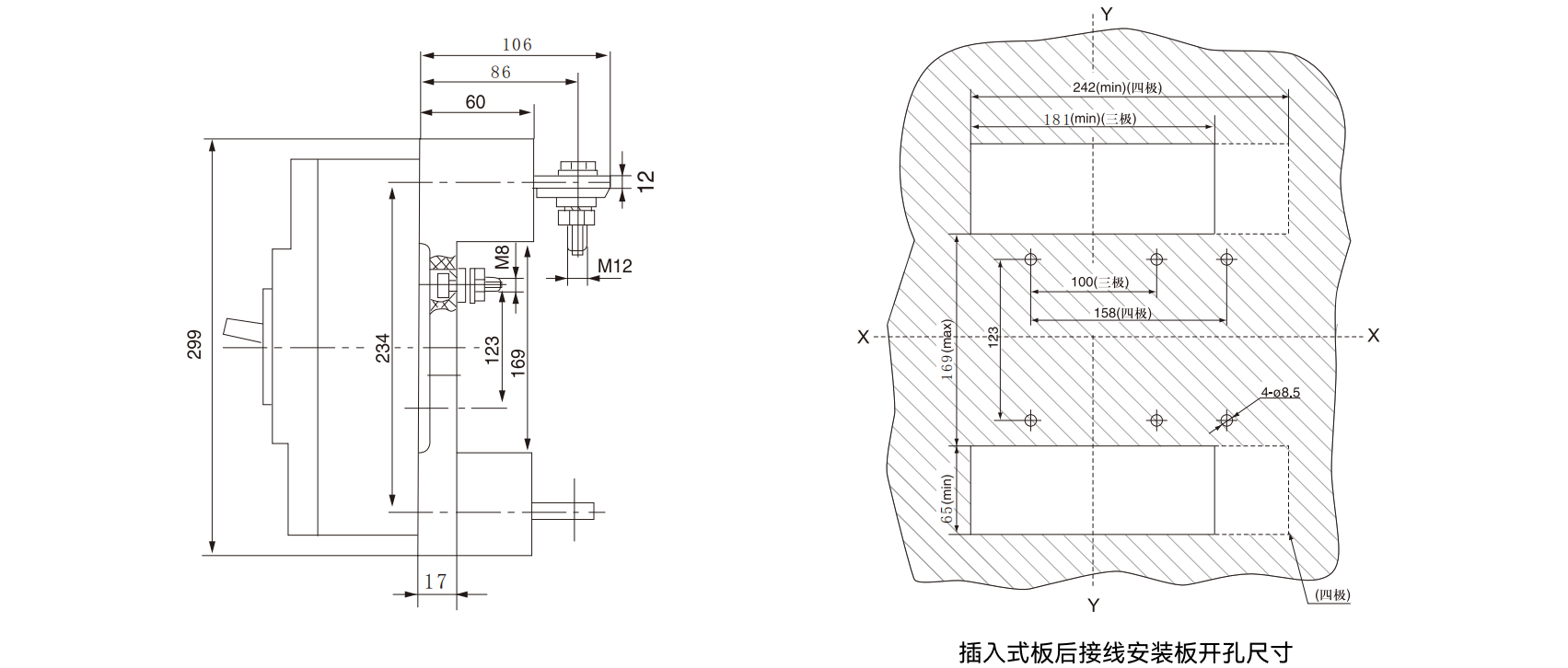

WHKM1-630 (L, M, H) Plug-in board rear wiring dimensions (three-pole, four-pole) X-X, Y-Y are the center of three-pole circuit breaker

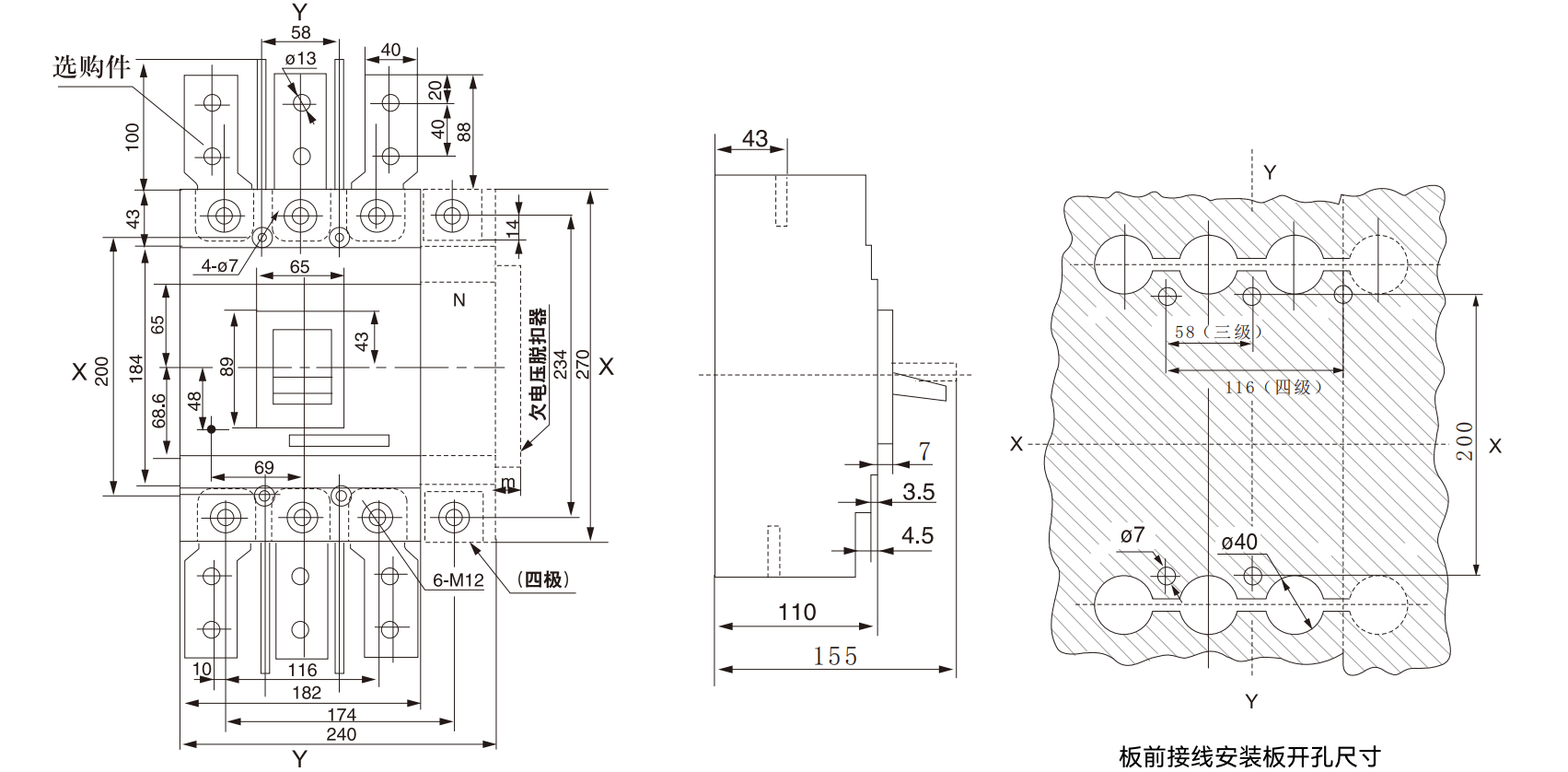

WHKM1-800 (M, H) board front wiring dimensions (three-pole, four-pole) X-X, Y-Y are the center of three-pole circuit breaker

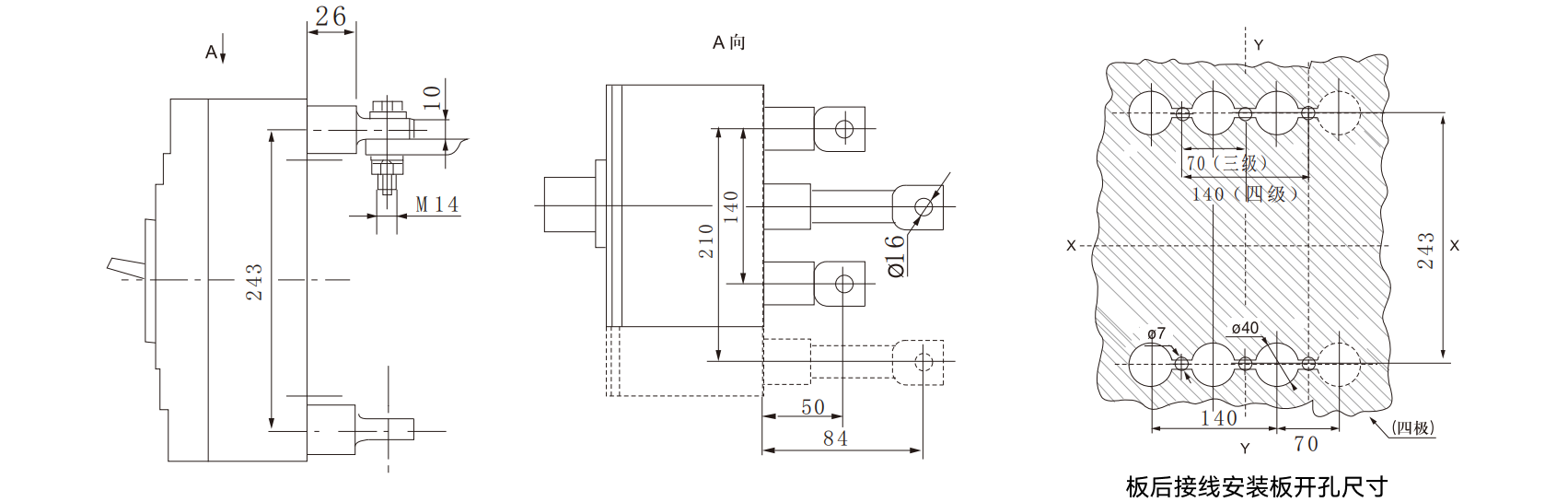

WHKM1-800 (M, H) board rear wiring dimensions (three-pole, four-pole) X-X, Y-Y are the center of three-pole circuit breaker

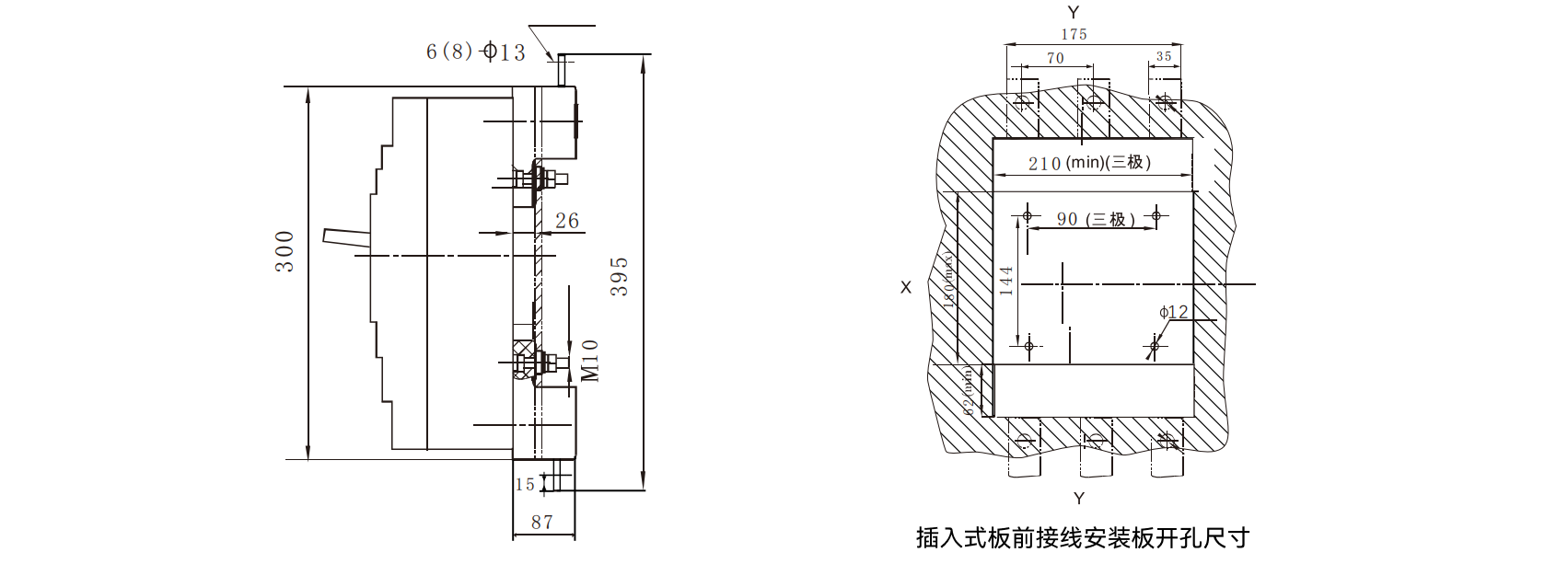

WHKM1-800 (M, H) plug-in board front line dimensions (three poles) X-X, Y-Y are three-pole circuit breaker centers

WHKM1-800 (M, H) plug-in board rear wiring dimensions (three-pole, four-pole) X-X, Y-Y are the center of three-pole circuit breaker

Internal and External Accessories

Internal accessories of the circuit breaker (according to the user's needs, the circuit breaker accessories can be directly led out to wiring, or the lead out terminal block can be installed).

1. Under-voltage release device: 50Hz AC230V, AC400V optional

Undervoltage release power (Table IX)

Equipped circuit breaker	Under-voltage release power (VA) AC230V	Under-voltage release power (VA) AC400V
WHKM1-63	3.5	3.3
WHKM1-100	2.6	3.3
WHKM1-160	2.6	3.3
WHKM1-250	3.8	3.3
WHKM1-400	3.7	2.7
WHKM1-630	2.3	2.7
WHKM1-800	2.5	2.8

At 35% ~ 70% of the rated working voltage, the undervoltage release device should reliably trip the circuit breaker.

At 85%-110% of the rated working voltage, the undervoltage release shall ensure that the circuit breaker can be closed:

When the rated operating voltage is less than 35%, the undervoltage release shall prevent the circuit breaker from closing.

Warning: The undervoltage release must be energized before the circuit breaker can be closed and closed again. Otherwise, the circuit breaker will be damaged! * (Undervoltage module thickness: 20 mm)

2. Shunt release device

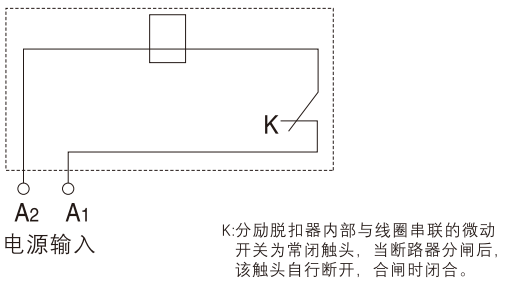

Wiring diagram (the internal accessories of the switch are in the dummy frame)

Voltage specifications: AC50Hz, 230V or 400V; DC220V or 24V (Note: DC24V is not recommended)

Between 70 and 110% of the rated control power supply voltage, the shunt release shall reliably trip the circuit breaker.

(Shunt release long wire type wire length: 50mm)

(Shunt release terminal type thickness: 20mm)

3. Alarm contact

Circuit breaker status	Contact connection diagram
Circuit breaker is in "on" and "closed" position
Position when the circuit breaker is "free trip" (alarm)

* (Alarm contact long wire type wire length: 50m)

(Alarm contact terminal type thickness: 20mm)

4. Auxiliary contacts

Circuit breaker status	Contact connection diagram	Description
The circuit breaker is in the position when it is "divided"		Circuit breaker with glorious grade current 400A and above (one set is four pairs of contacts) Circuit breaker with glorious grade current 250A and below (one set is two pairs of contacts)
Position when the circuit breaker is "closed"		Circuit breaker with glorious grade current 100A and above (one set is four pairs of contacts) Circuit breaker with glorious grade current 250A and below (one set is two pairs of contacts)

(Auxiliary contact long wire type wire length: 50mm)

(Auxiliary contact terminal type thickness: 20mm)

4.1 Rated current of auxiliary contacts and alarm contacts (Table 10)

	Glorious Class Current Rating (InA)	Agreed heating current Ith (A)	Rated operating current (A)
	Glorious Class Current Rating (InA)	Agreed heating current Ith (A)	AC400V	DC220V
Auxiliary contact	≤250	3	0.3	0.15
Auxiliary contact	≥400	3	0.4	0.2
Alarm contact	≤600	3	0.3	0.15

4.2 Power-on operation performance of auxiliary contacts and corresponding test conditions (Table 11)

Use categories	Turn on			Break off			Power-on operation Number of cycles	Operations per minute No. of cycles	Power-on time
Use categories	I/Ie	U/Ue	Cos φ or T0.95	I/Ie	U/Ue	Cos φ or T0.5	Power-on operation Number of cycles	Operations per minute No. of cycles	Power-on time
AC-15	10	1	0.3	1	1	0.3	6050	6	≥ 0. 05 s
DC-13	1	1	6Pe	1	1	6Pe	6050	6	≥ T 0. 95

4.3 Switching on and breaking capacity of auxiliary contacts under abnormal conditions (Table 12)

Use categories	Turn on			Break off			Power-on operation No. of cycles	Operations per minute Number of cycles	Power-on time
Use categories	I/Ie	U/Ue	Cos φ or T0.95	I/Ie	U/Ue	Cos φ or T0.5	Power-on operation No. of cycles	Operations per minute Number of cycles	Power-on time
AC-15	10	11	0.3	10	11	0.3	10	2	≥ 0. 05 s
DC-13	1.1	1.1	6Pe	1.1	1.1	6Pe	10	2	≥ T 0. 95

Note: Table 2 above

1.6 Pe = T0.95 is an empirical formula, where Pe is in "watts" and T0.95 is in milliseconds.

2. When the total number of operating performances of the circuit breaker is less than 6050, the number of energized operating performances of the auxiliary contact may be equal to the total number of operating performances of the circuit breaker.

3. The operating frequency and energization time are allowed to be consistent with those of the main circuit of the circuit breaker.

External accessories for circuit breakers

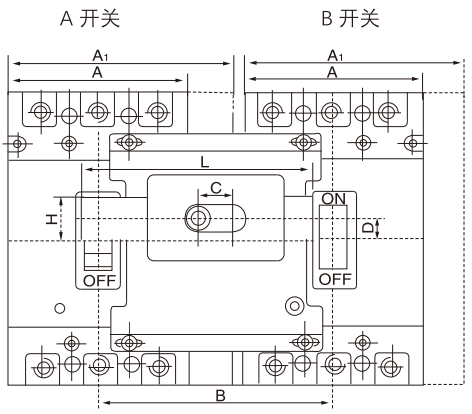

1. Mechanical interlocking mechanism of two circuit breakers

Product Name	A	A1	B	C	D	L	H	Note
WHKM1-63	78		102	18	13	95	22	用于WHKM1-63L、M、
WHKM1-100	92		120	18	11.5	118	22	用于WHOM1-100L、M.H
WHKM1-160	92		120	18	11.5	118	22	用于WHML-160L、M.H
WHKM1-250	107		135	18	9	130	22	用于WHOM1-250L、M.H
WHKM1-400	150		190	42	16	175	22	用于WHM1-400L、M.H
WHKM1-630	182		220	42	12	198	22	用于WHKM1-630L、M、H
WHKM1-800	210		240	42	29.5	230	20	用于WHKM1-800M.H
WHKM1-63/4P		103	132	18	13	125	22	用于WHKM1-63四极
WHKM1-100/4P		122	152	18	11.5	150	22	用于WHKM1-100四极
WHKM1-160/4P		122	152	18	11.5	150	22	用于WHKM1-160四极
WHKM1-250/4P		142	173	18	9	168	22	用于WHKM1-250四极
WHKM1-400/4P		198	240	42	16	225	22	用于WHKM1-400四极
WHKM1-630/4P		240	280	42	12	258	22	用于WHKM1-630四极

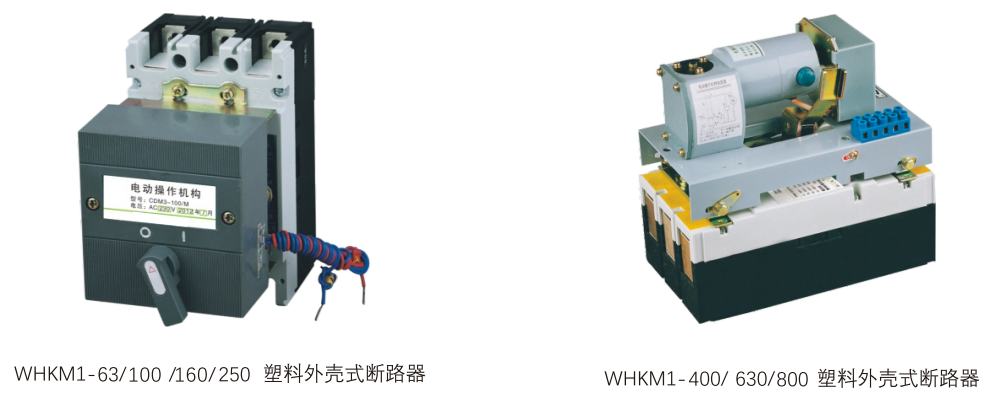

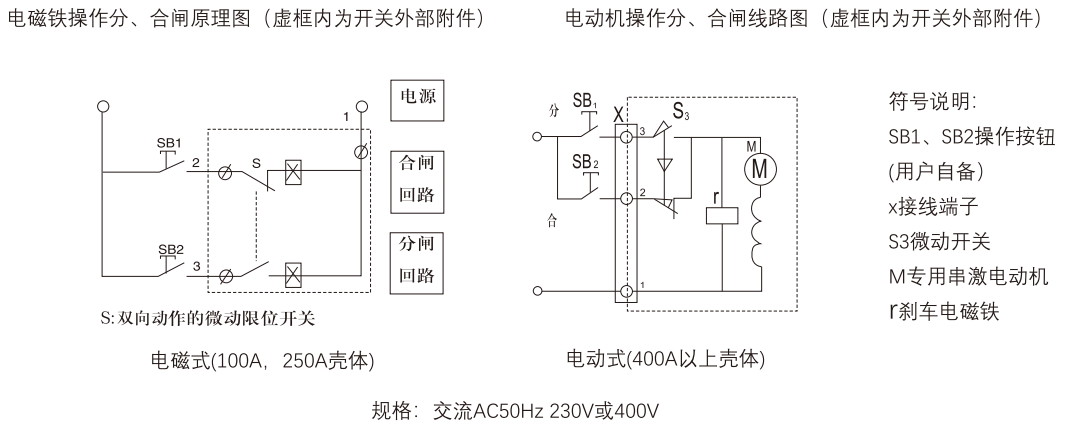

2. Electric operating mechanism

3. The starting current, power and lifespan of the motor operating mechanism (Table 14)

Install circuit breaker	Starting current(A)			Starting power(VA)			Number of lifetimes (cycles)
	Electromagnetic type	Electric motor type		Electromagnetic type	Electric motor type		Electromagnetic type	Electric motor type
	Electromagnetic type	CD	CD2	Electromagnetic type	CD	CD2	Electromagnetic type	Electric motor type
WHKM1-63L、M	≤5		≤0.5	110		14	10000	10000
WHKM1-100L、M.H	≤7		≤0.5	154		14	10000	10000
WHKM1-160L、M、H	≤7		≤0.5	154		14	10000	10000
WHKM1-250L、M、H	≤8.5		≤0.5	187		14	8000	8000
WHKM1-400L、M、H	-	≤5.7 ≤2		-	120		-	5000
WHKM1-630L、M、H	-	≤5.7 ≤2		-	120		-	5000
WHKM1-800M、H	-	≤7.5 ≤2		-	120		-	3000

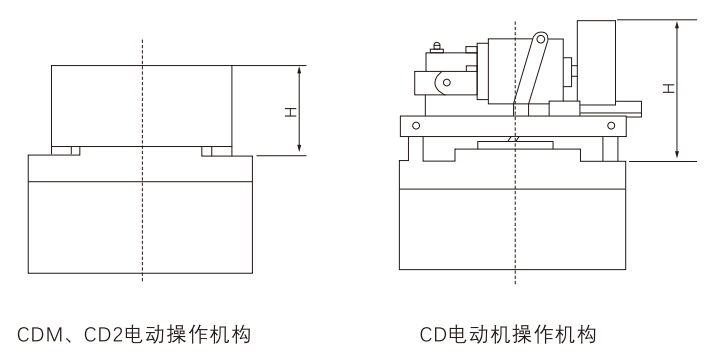

4.Height of the electric operating mechanism

5.The total height of the circuit breaker after the installation of the electric operating mechanism (Table 15)

Model of the circuit breaker to which the operating mechanism belongs	WHKM1-63	WHKM1-100	WHKM1-160	WHKM1-250	WHKM1-400	WHKM1-630	WHKM1-800
	L、M	L、M、H	L、M、H	L、M、H	L、M、H	L、M、H	M、H
Electromagnetic height gauge H(mm)	81	91	91	91	101	141	141
Motorized height H(mm)	95	85	85	85	135	-	135

※Note: After the circuit breaker trips and opens, the electric operating mechanism must first re-close the circuit breaker before it can be fully closed.
