Transfer switching equipment

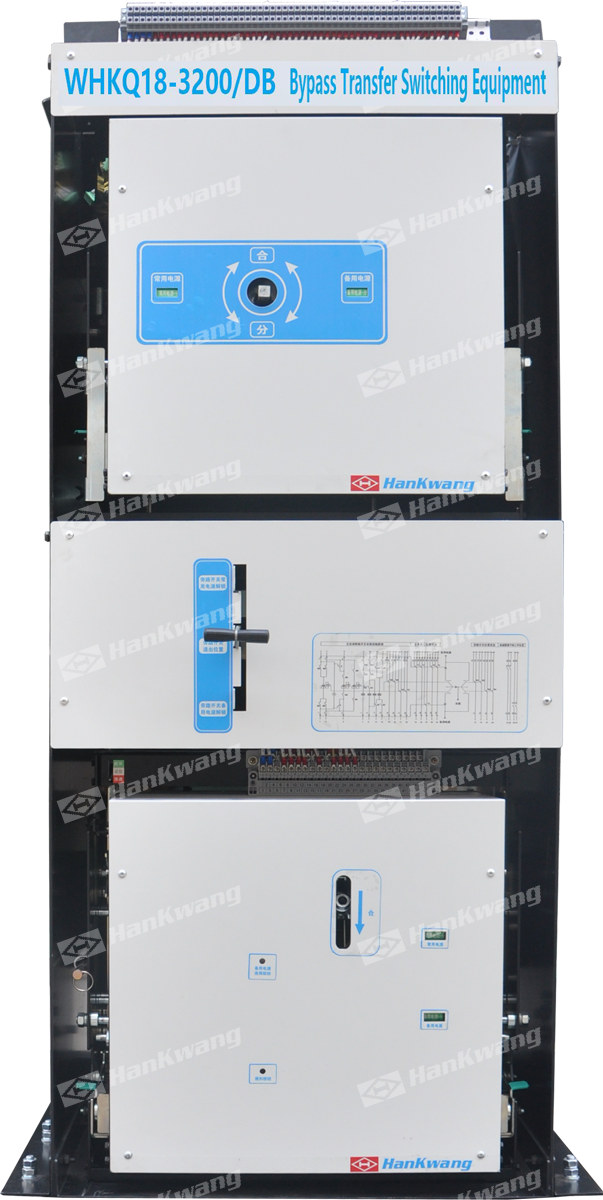

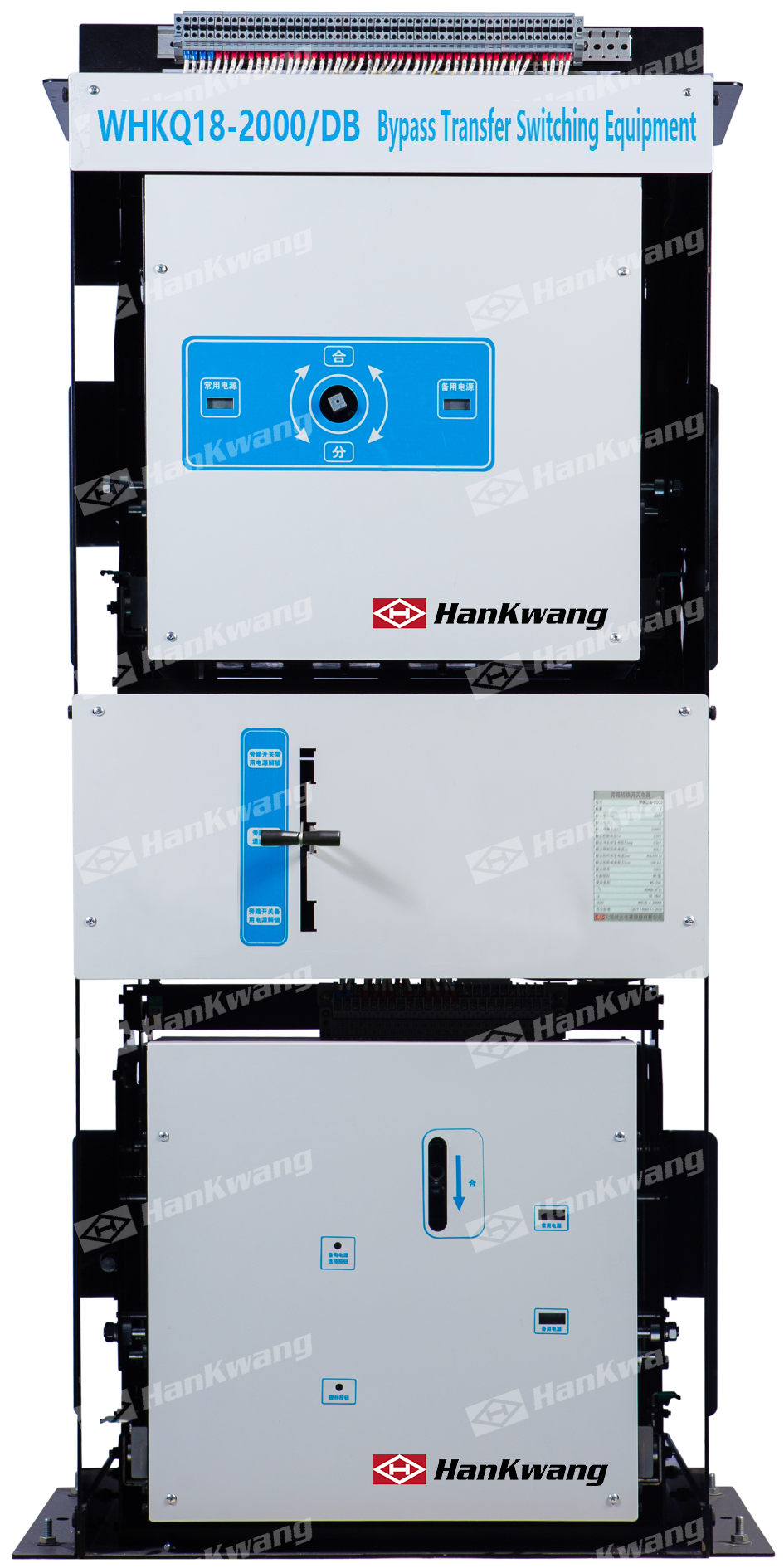

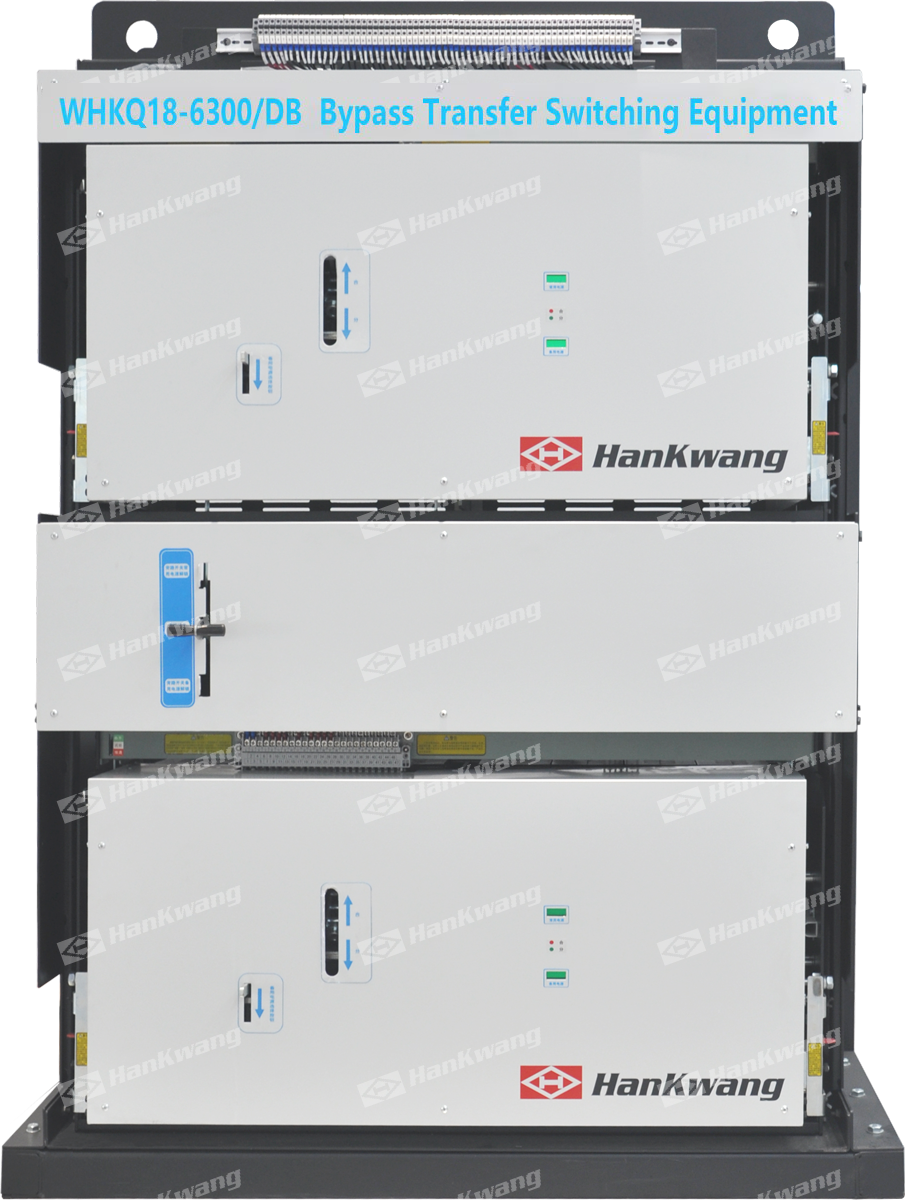

WHKQ18-2000/3200/6300
Currently, with the rapid development of big data, intelligent transportation, e-commerce and smart city networks in our country, the construction of data centers is in full swing.
Product Details
Model and Meaning
Technical Specifications

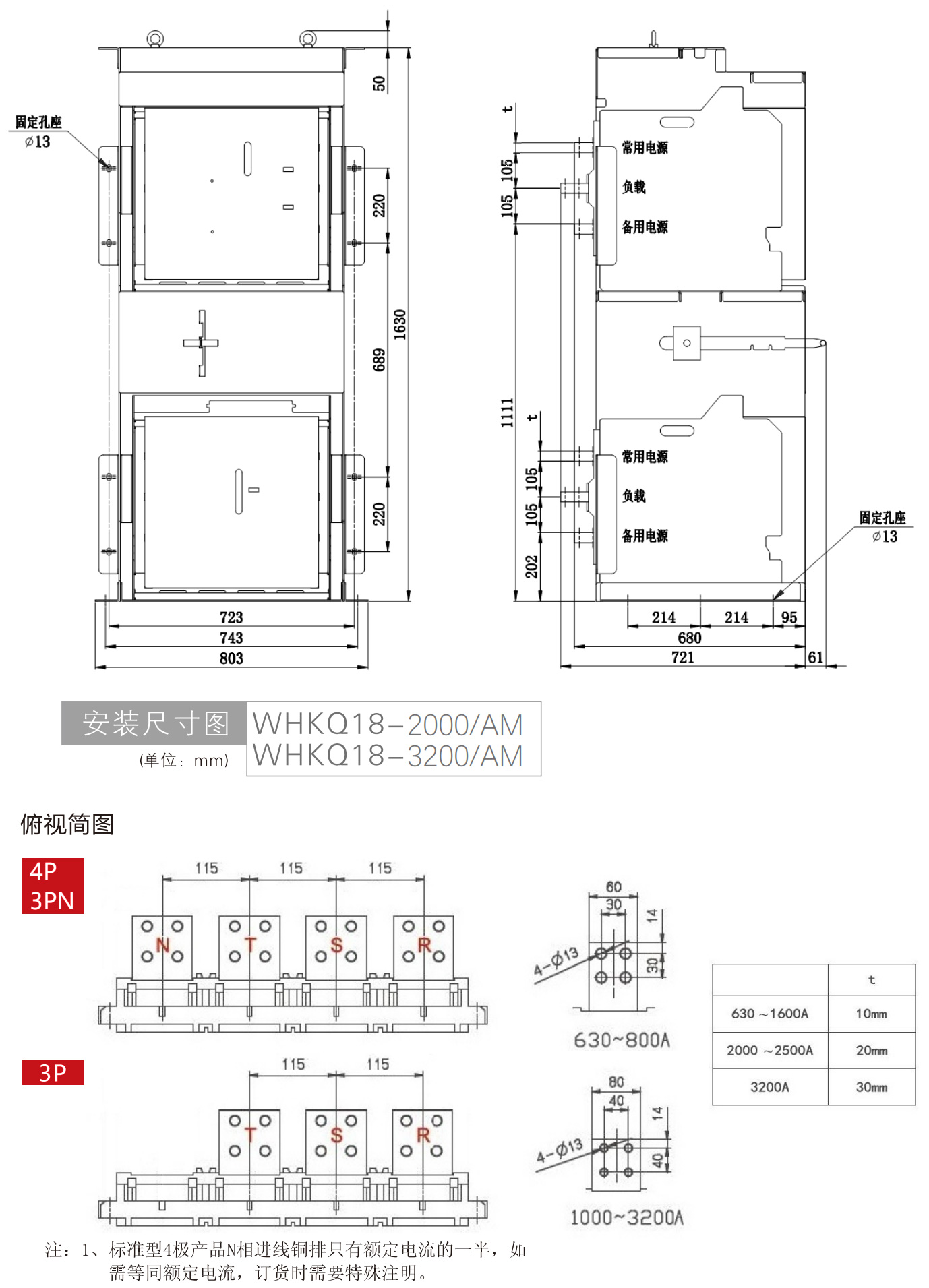

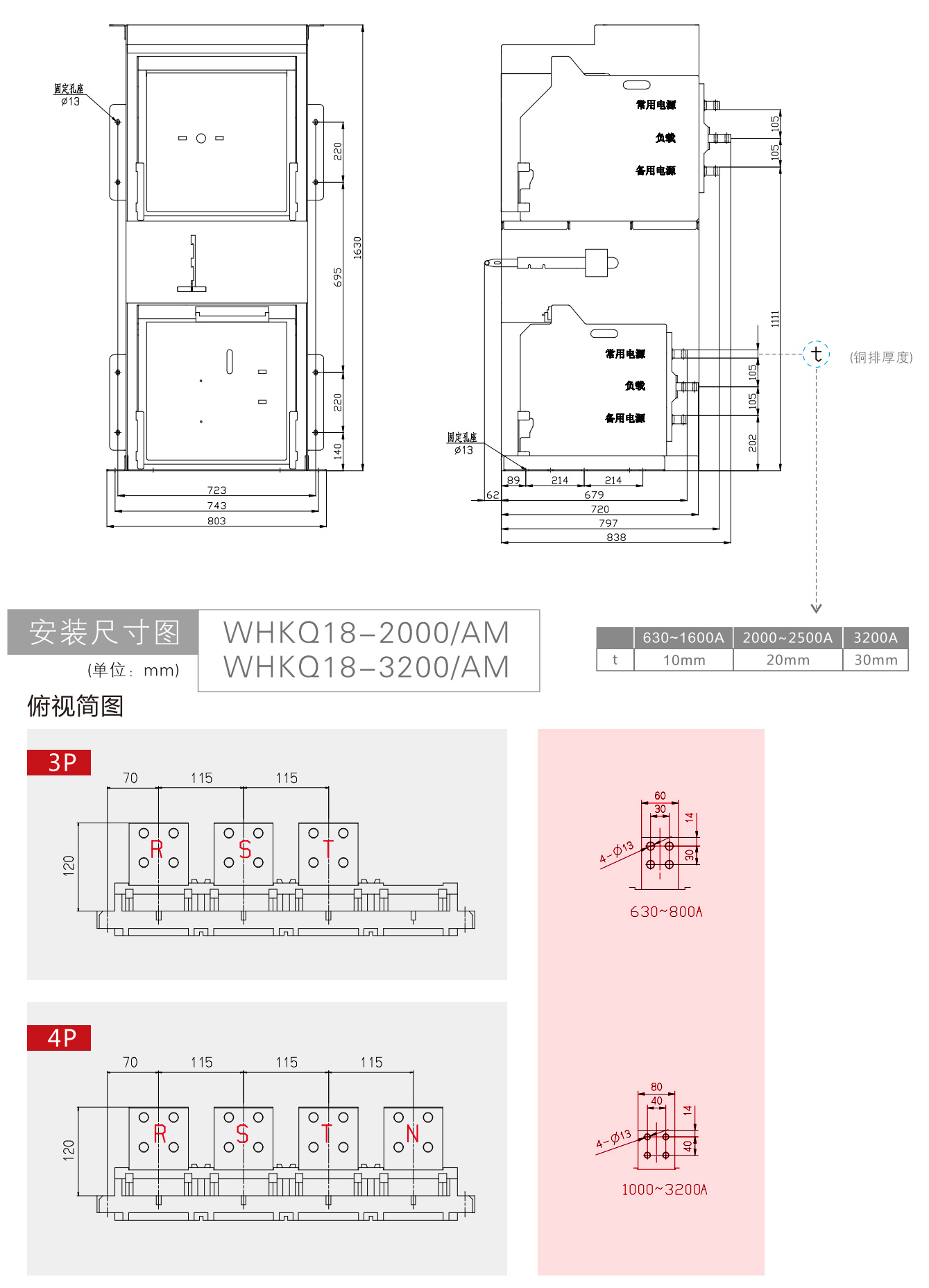

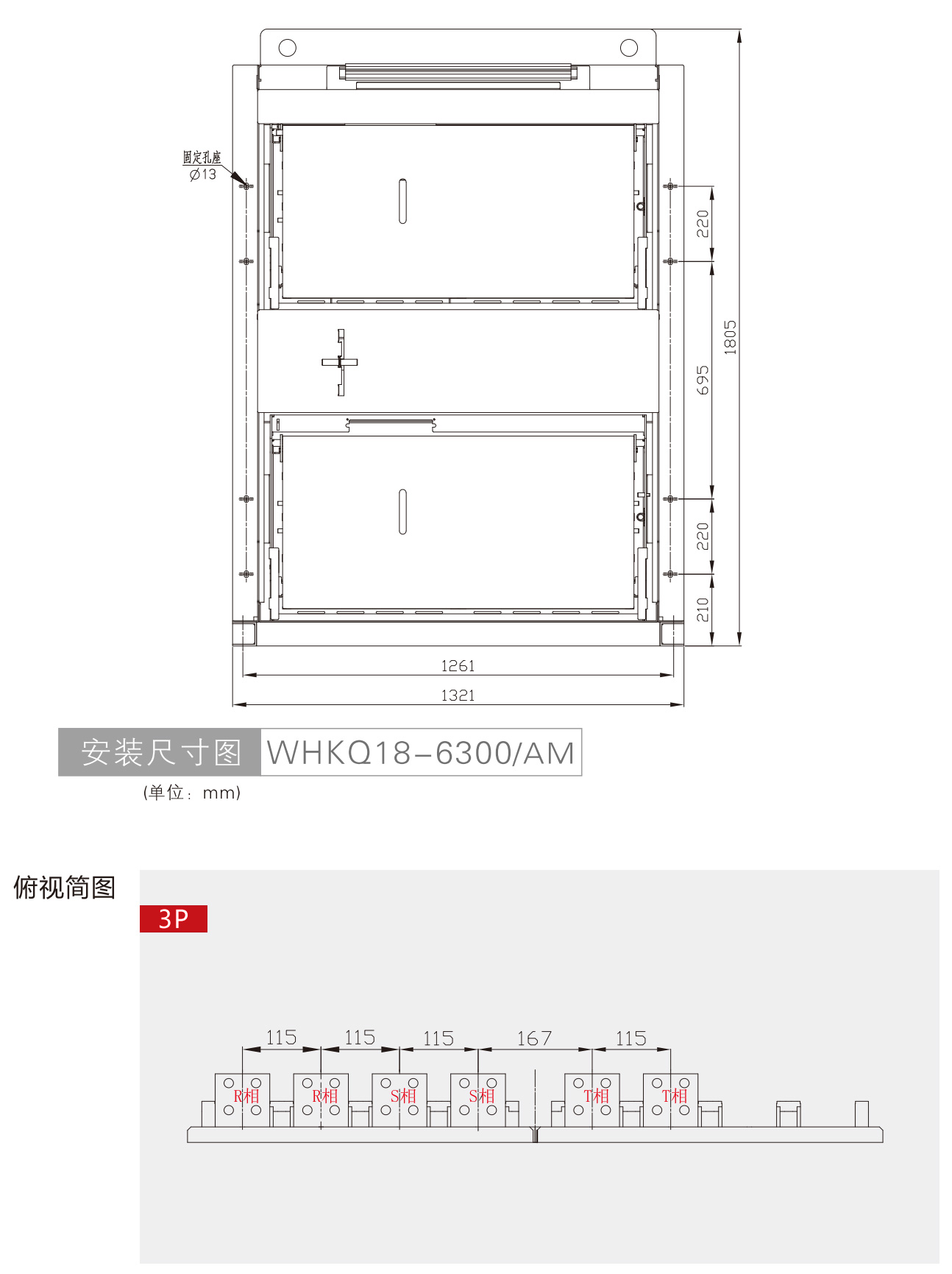

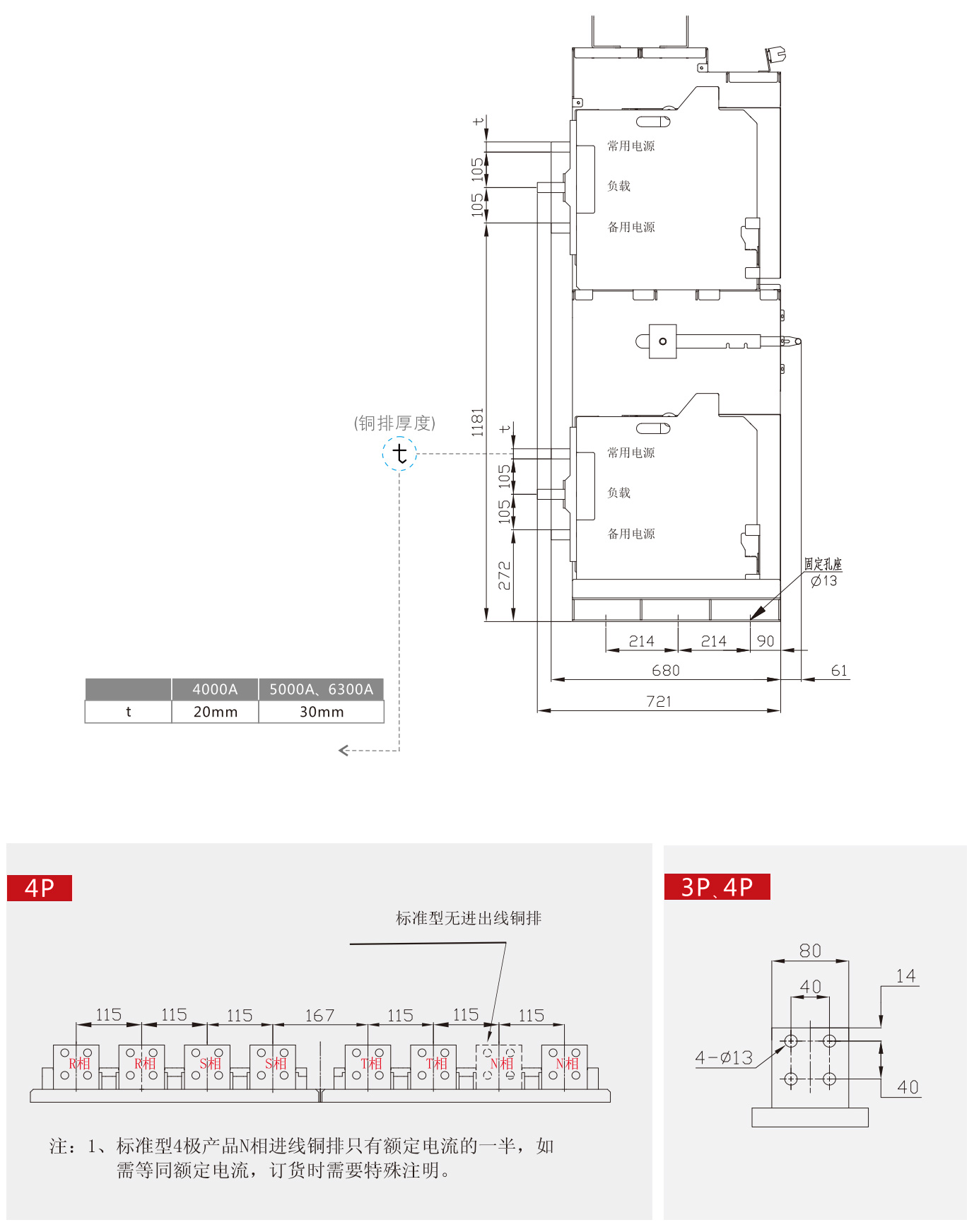

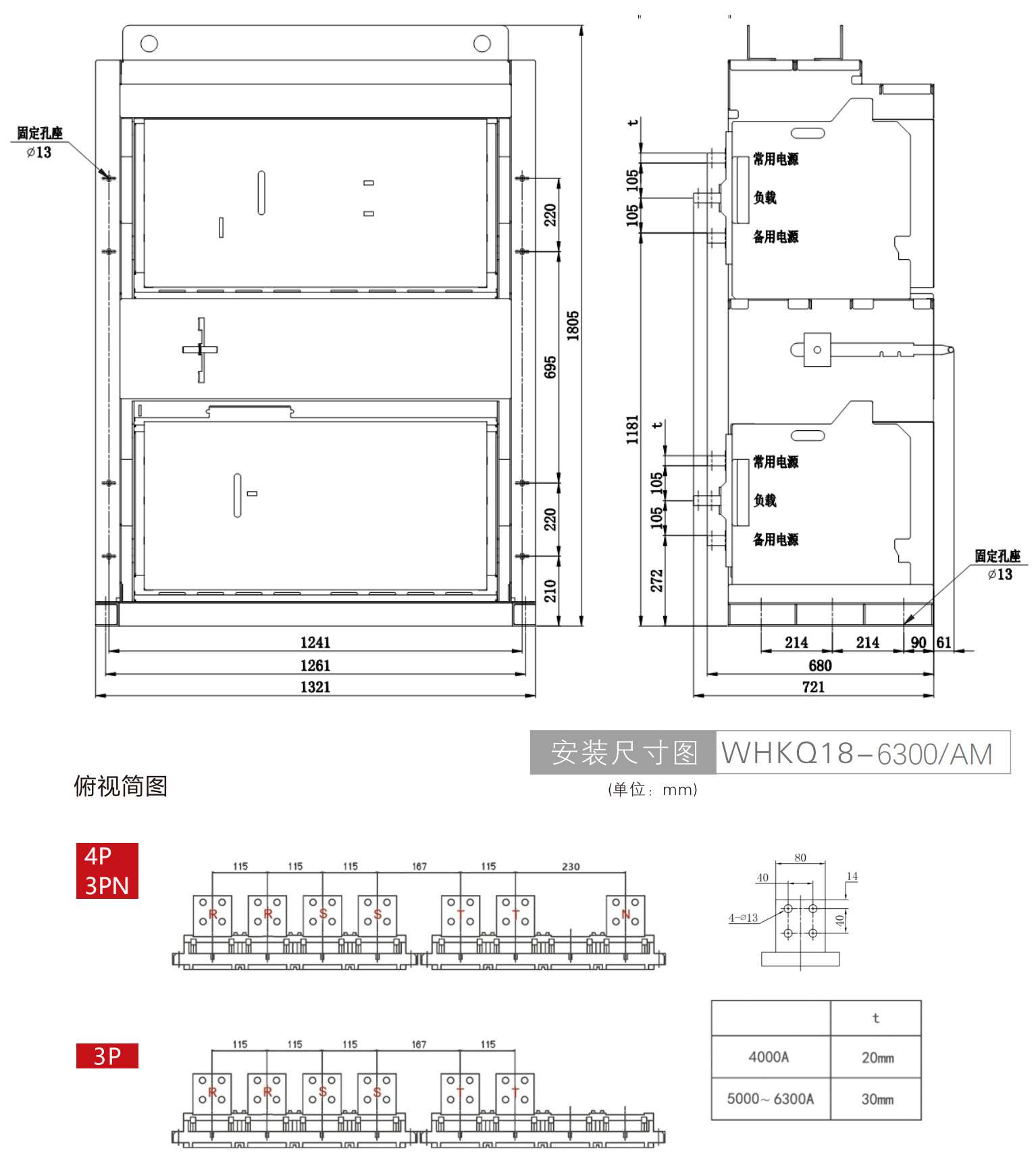

Appearance and dimensions
Other
At present, with the rapid development of big data, intelligent transportation, e-commerce and smart city networks in China, the construction of data centers is in the ascendant.
Data center design specifications require that its power supply and distribution system should be redundant and fault-tolerant. Automatic transfer switch appliance (ATSE) is located at the convergence point of two power systems (single node). Once it fails or needs maintenance, it will bring the risk of power failure to the power supply system of the data center. Bypass ATSE can increase the redundancy of the power supply system and greatly improve the continuity and reliability of the power supply system.
WHKQ18 series bypass transfer switch appliances and complete sets of equipment can meet the needs of important application places such as data centers.
Product Features:
It can provide reliable redundant power conversion function.
Bypass transfer switch appliances are vibration-resistant. The vibration level reaches the test frequency range specified in GB/T 2423.56-2006 from 5Hz to 500Hz, the root mean square value of acceleration is 0.5 g, the test time is 30min, and each axial direction is 10min (X, Y and Z directions).
The controller has reliable electrical stress performance.
The installation methods of ATSE, MTSE and RTSE in production are all drawer-type, and the replacement and maintenance of drawer-type products are convenient and quick.
Drawer-type products have three-position functions of "disconnect, test and connect", which is convenient for debugging and maintenance.
Use category: AC-33A
There are reliable mechanical interlocks. Ensure that the bypass transfer switch appliances can only be closed on the same side, thus ensuring the reliability and safety of the product.
Neutral line overlap switching function:
The N phase adopts the method of first closing and then splitting, which can protect various components at the load end.
N phase adopts overlapping switching mode to prevent voltage floating.
| WHK | Q | 18 | — | ☐ | / | ☐ | / | ☐ | / | ☐ | / | ☐ | /+ | BA + Ⅲ E |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Wuxi Hanguang Electrical appliances shares Company Limited |
Automatic transfer switching equipment ATSE |
Design serial number |
Agreement thermal Current (A) |
Switch combination AM |
DB: double bypass SB: single bypass |
Number of poles |
Rated operating Current (A) 16A-6300A |

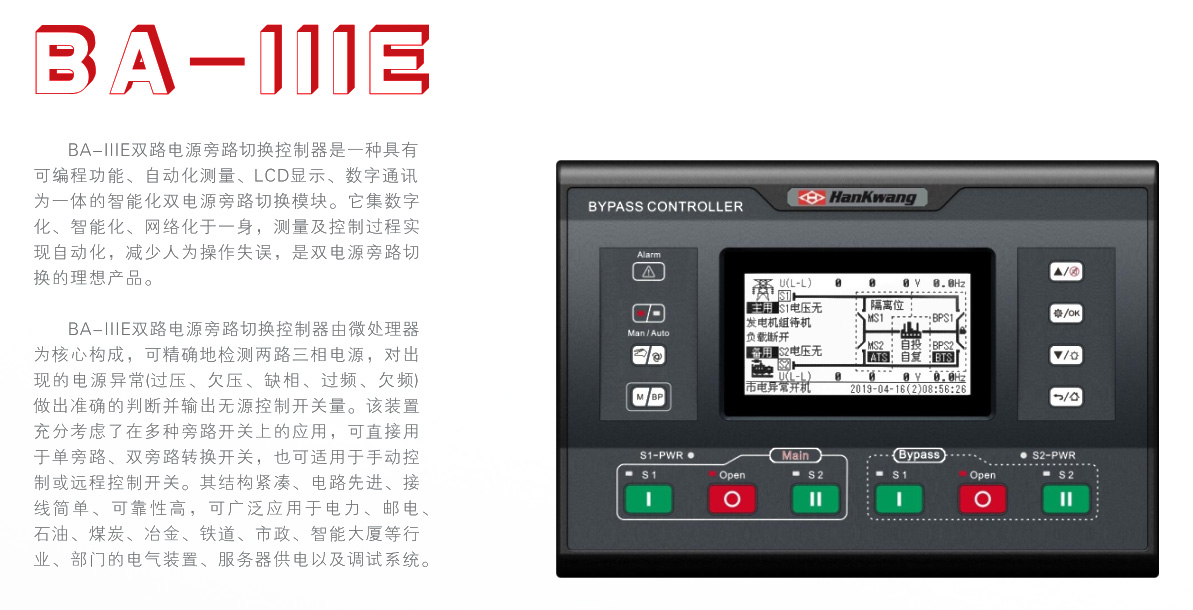

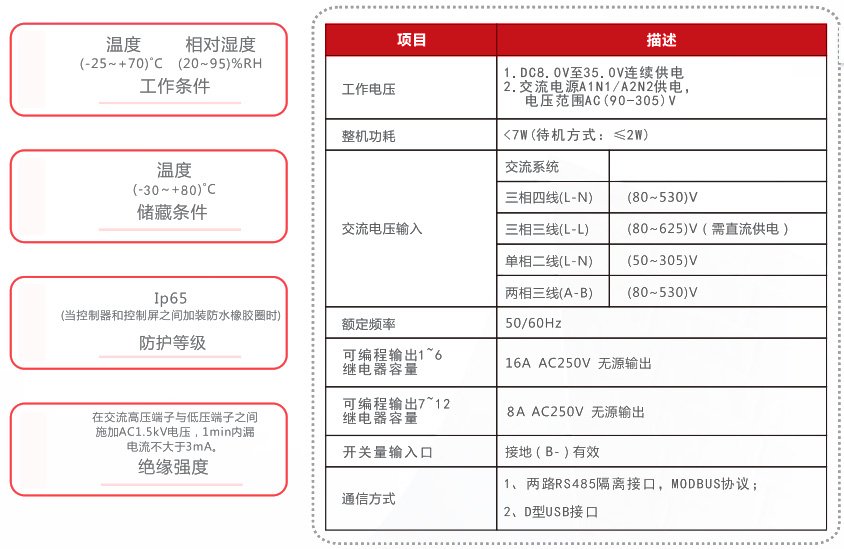

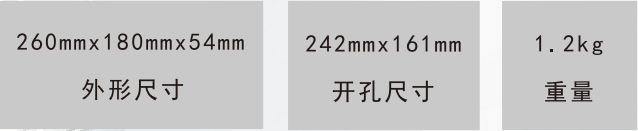

Bypass Controller |
| Model | WHKQ18-2000/AM | WHKQ18-3200/AM | WHKQ18-6300/AM | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Rated operating current le (A) | 630~800 | 1000~1600 | 2000~2500 | 3200 | 4000 | 5000 | 6300 | ||
| Number of poles | 3P, 4P, 3PN | ||||||||
| Weight (kg) | 530 | 580 | 620 | 660 | 1000 | 1200 | |||
| Rated operating voltage Ue (V) | AC400 | ||||||||
| Rated impulse withstand voltage Uimp (kV) | 12 | ||||||||
| Rated insulation voltage Ui (V) | AC1000 | ||||||||
| Use categories | AC-33A | ||||||||
| Appliance Level | PC | ||||||||
| Working Position | Two positions, three positions | ||||||||
| Rated frequency (Hz) | 50 | ||||||||
| Rated short-time withstand current lcw (kA/s) | 90/1 | 100/1 | |||||||
| Rated short circuit on current lcm (kA) | 121 | 145 | 230 | ||||||
| Contact transition time | 1s | II: 30 ms III: 1 s | |||||||
| Transition action time | 1.4 s | II: 200 ms III: 1.4 s | |||||||
| Lifetime | Electrical life (times) | 10000 | |||||||
| Mechanical life (times) | 15000 | ||||||||
| Wiring mode | Horizontal wiring behind board | ||||||||
| Operating current AC230V | Closing current (A) | 40 | 65 | ||||||
| Opening current (A) | 15 | 65 | |||||||
| Note: The operation instruction must be completed within 500ms, otherwise the coil will heat up and burn out. | |||||||||
Note: a: Number of maintenance operations
Three positions
Two positions
Normal use and installation conditions:
Ambient air temperature: The upper limit of ambient air temperature is not more than + 40 ℃, the lower limit is not less than-5 ℃, and the average temperature value within 24 hours is not more than + 35 ℃.
Altitude: The altitude of the installation site shall not exceed 2000m.
Humidity conditions: The relative humidity at the maximum temperature of + 40 ℃ does not exceed 50%. Higher relative humidity is allowed at lower temperatures. For example: the relative humidity at + 20 °C is 90%.
Pollution level: Pollution level 3
Special usage environment: In these usage environments where the ambient temperature exceeds + 40 °C or is lower than-5 °C, the altitude exceeds 2000m, and the atmospheric environment is relatively harsh (beyond the range of the above atmospheric conditions), we can specially supply this product according to the actual working conditions of users to meet user needs.
