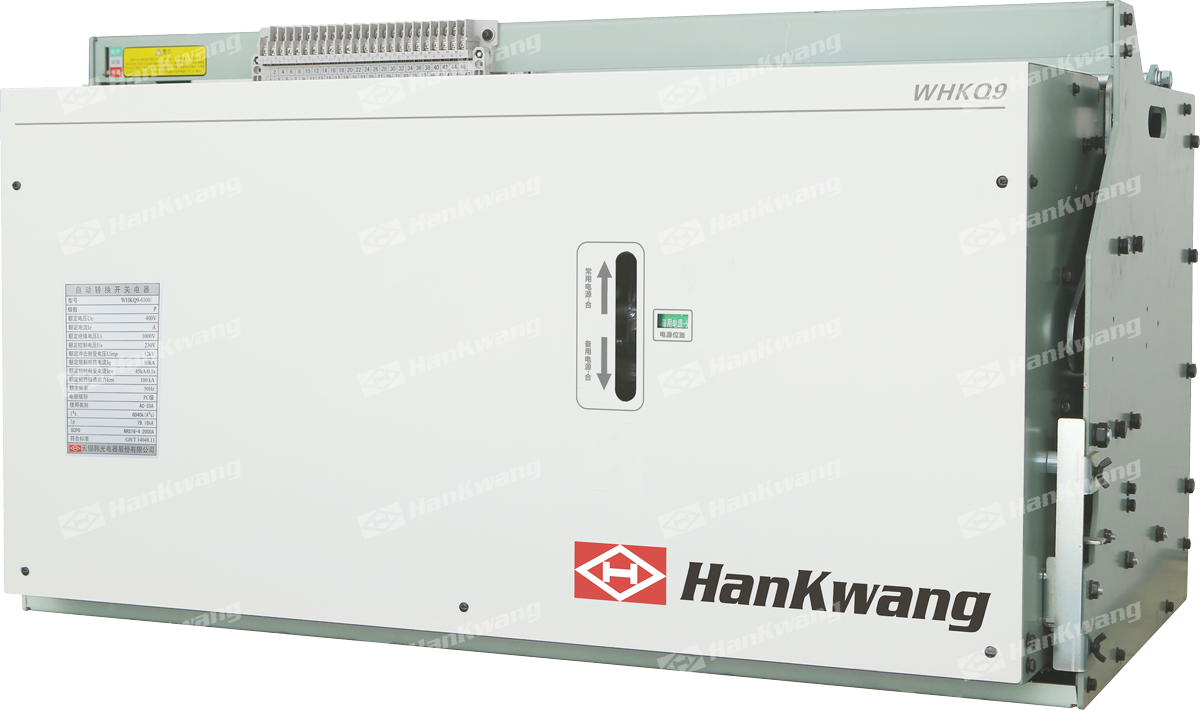

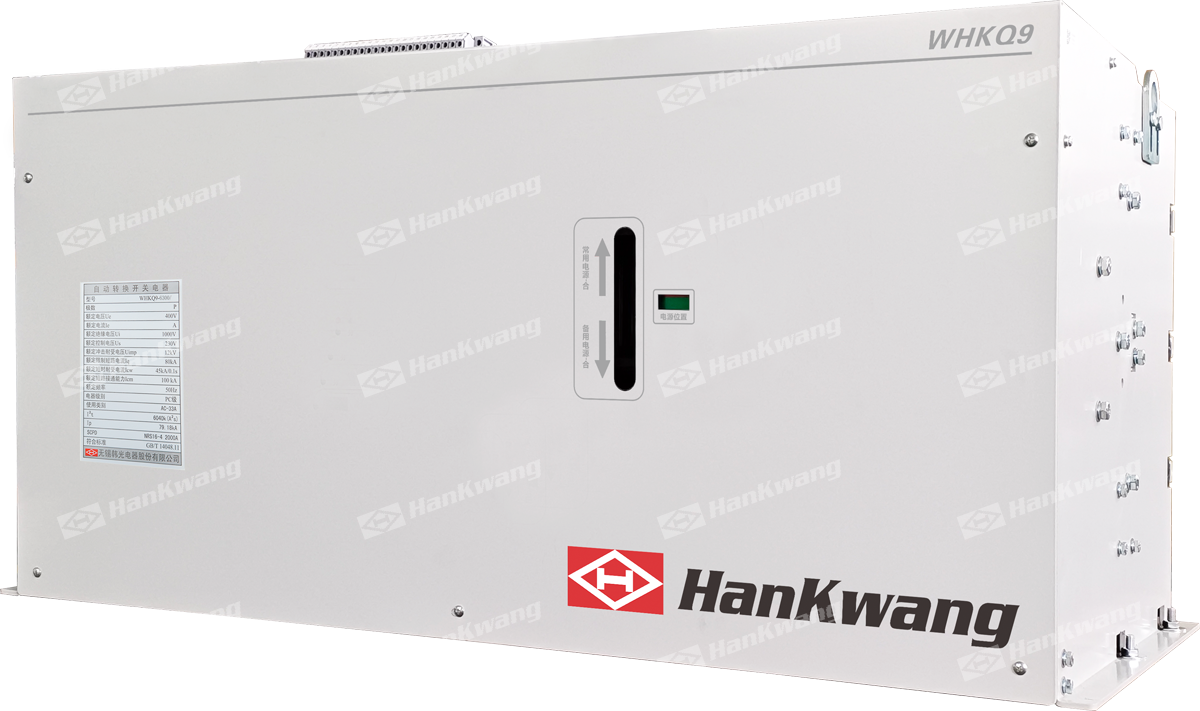

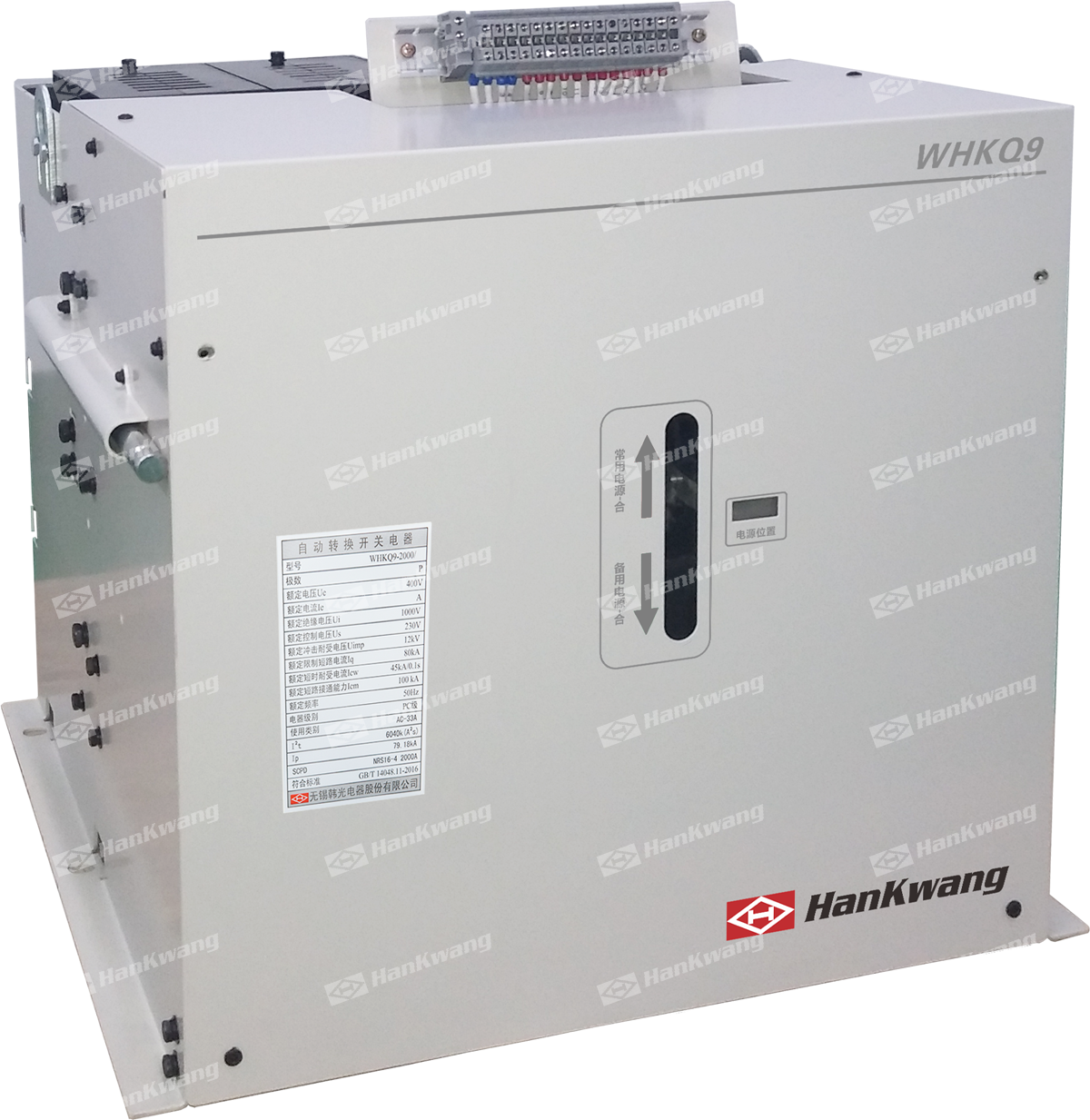

Transfer switching equipment

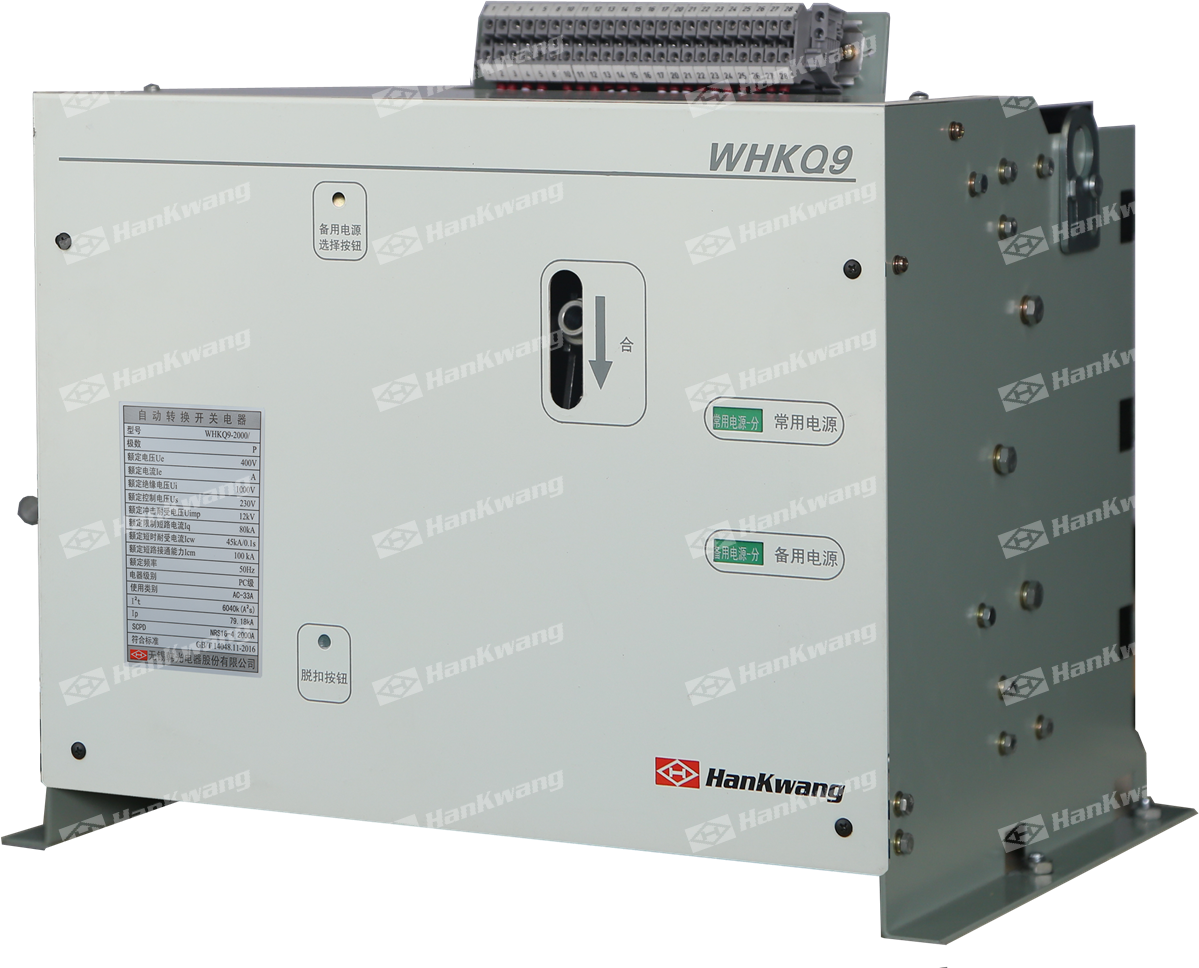

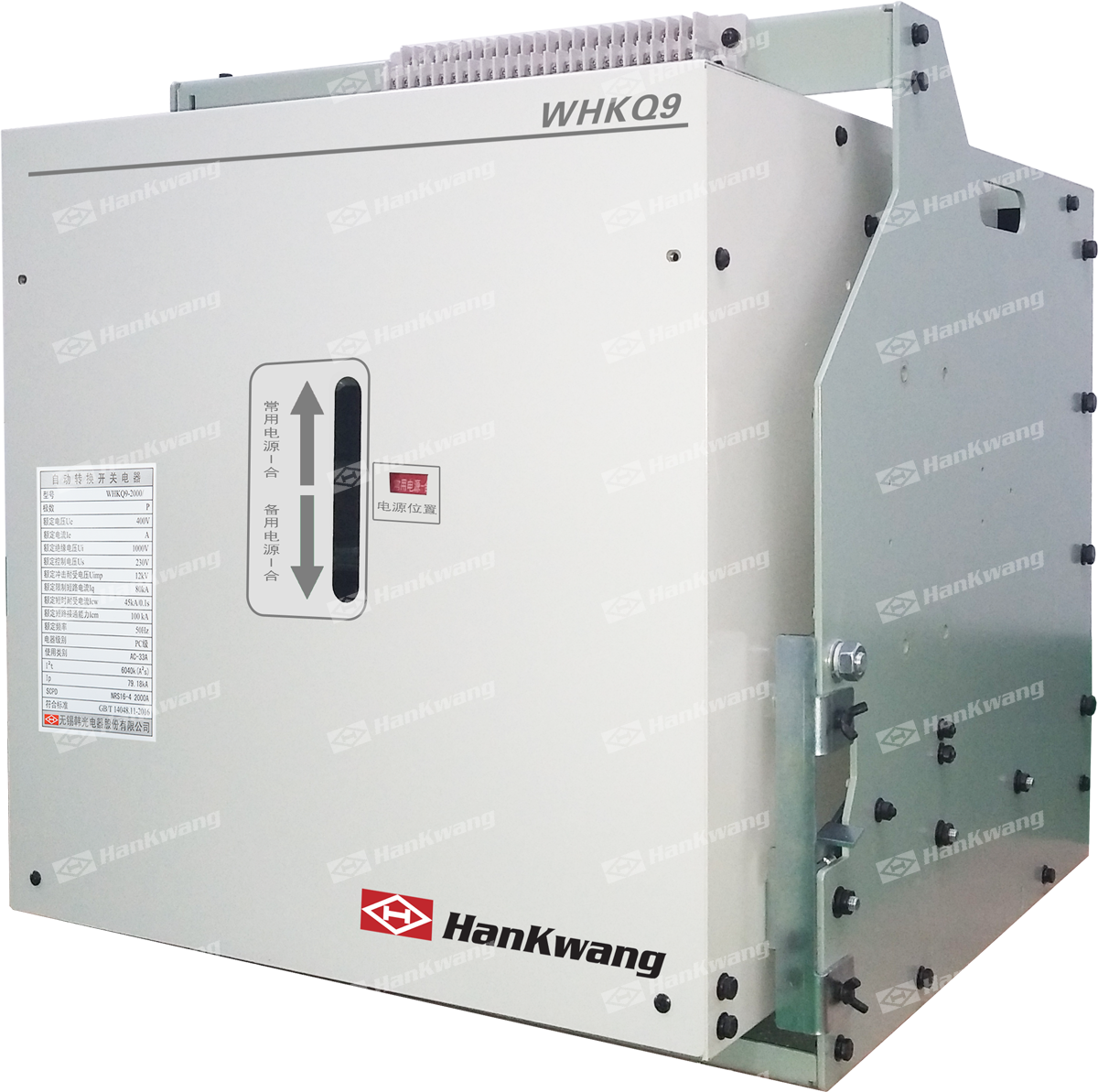

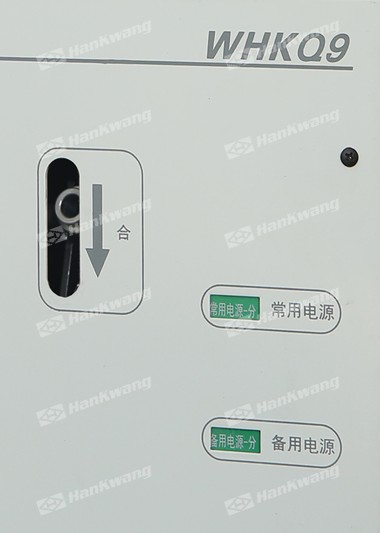

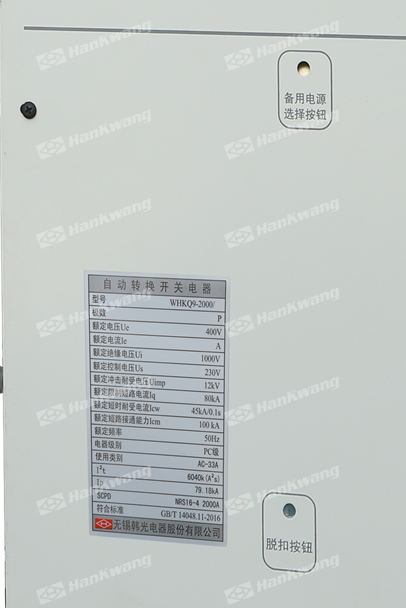

WHKQ9-2000F/Ⅲ
The WHKQ9 series automatic transfer switch electrical appliances are suitable for AC 50Hz power supply systems with rated insulation voltage of 1000V, rated working voltage up to 400V, and rated working current ranging from 100A to 6300A (power grid - power grid or power grid - generator). They are used for power switching when one power source fails to ensure the continuous and reliable operation of important loads (such as fire protection).
Product Details
Model and Meaning
Technical Specifications

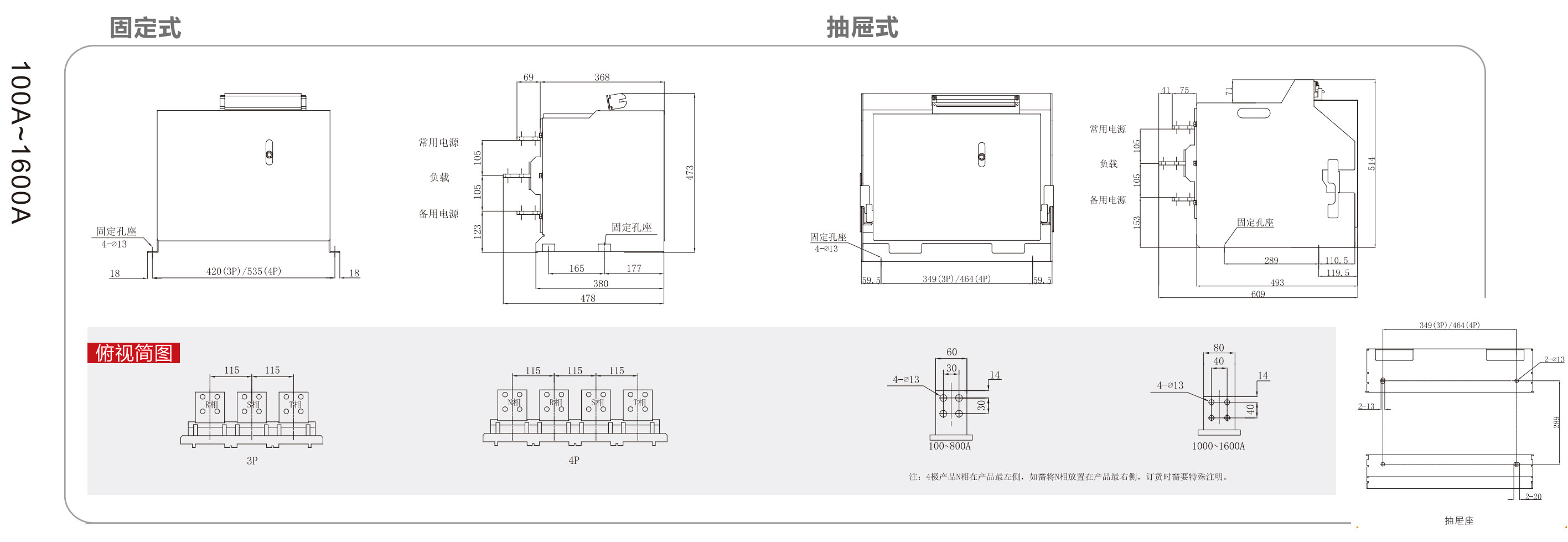

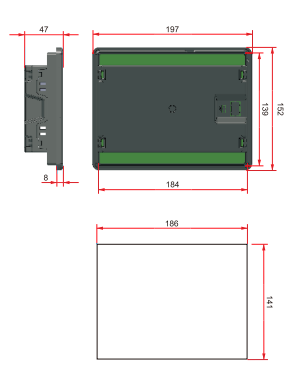

Appearance and dimensions
Other
Overview
WHKQ9 series automatic transfer switch appliances are suitable for double-circuit power supply systems (power grid-power grid or power grid-generator) with AC 50Hz, rated insulation voltage 1000V, rated working voltage to 400V, and rated working current 100A ~ 6300A. The power supply is switched due to abnormalities to ensure the continuous and reliable operation of important loads (such as fire protection).
| WHK | Q | 9 | — | ☐ | / | ☐ | / | ☐ | / | ☐ | ☐ | ☐ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Enterprise code |
Product series Code |
Design serial number Code |
Rated thermal current |
Derived code |
Contact operation position |
Number of poles |
Limited work current |
Controller model |
||||
|
Wuxi Hanguang Electrical appliances shares Company Limited |
Automatic transfer Switching equipment ATSE |
2000 3200 6300 |
F: stationary D: Drawer type |
Ⅱ: Two positions Ⅲ: three positions |
100~6300 |

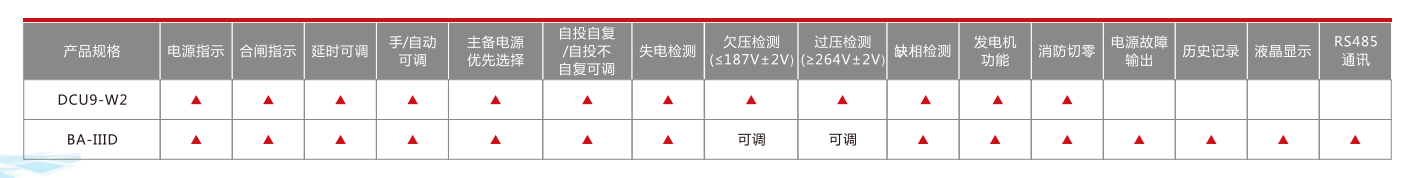

BA-Ⅲ D DCU9-W2 |
| Model | WHKQ9-2000 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated operating voltage Ue (V) | AC400 | |||||||||||
| Rated operating current Ie (A) | 100 | 160 | 200 | 250 | 315 | 400 | 630 | 800 | 1000 | 1250 | 1600 | |
| Number of main contact positions | Three positions | |||||||||||
| Number of poles | 3P, 4P | |||||||||||
| Weight (kg) | Stationary | 62/73 | 72/83 | 73/84 | ||||||||
| Drawer type | 90/108 | 93/127 | 94/128 | |||||||||
| Rated insulation voltage Ui (V) | AC1000 | |||||||||||
| Control supply voltage Us (V) | AC230 | |||||||||||
| Rated limited short circuit current Iq (kA) | 100 (fuse protection) | |||||||||||
| Rated short-time withstand current Icw (kA/S) | 90/1 | |||||||||||
| Rated short circuit connection capacity Icm (kA) | 121 | |||||||||||
| Rated impulse withstand voltage Uimp (kV) | 12 | |||||||||||
| Rated frequency (Hz) | 50 | |||||||||||
| Appliance Level | PC Class | |||||||||||
| Use categories | AC-33A | |||||||||||
| Operating cycle | 60s | 120s | ||||||||||
| Operating current AC230V (A) | 25 | 40 | ||||||||||
| Contact transition time | 1s | |||||||||||
| Transition action time | 1.4 s | |||||||||||
| Mechanical Life (times) | 15000 | |||||||||||
| Electrical Life (times) | 10000 | |||||||||||
| Notes | The operation instruction should be less than 0.5 s, otherwise the coil will be overheated and burned | |||||||||||
Note: A: Maintainable times
Normal use conditions and installation conditions
Ambient air temperature: the upper limit is not more than + 40 ℃, the lower limit is not less than-5 ℃, and the average temperature value within 24 hours is not more than + 35 ℃.
Altitude: The altitude of the installation site shall not exceed 2000m.
Atmospheric conditions: The air should be clear and clean. When the highest temperature is + 40 ℃, the relative humidity of the air should not exceed 50%. Higher relative humidity can be allowed at lower temperatures. For example, the humidity can reach 90% at + 20 ℃. Special measures should be taken for occasional condensation due to temperature changes.
Do not use and store in the area of sulfide gas, ammonia sulfate gas and corrosive gas.
Storage Temperature: Max + 60 ℃, min-20 ℃.
Pollution Level: 3
Special usage environment: In these usage environments where the ambient temperature exceeds + 40 °C or is lower than-5 °C, the altitude exceeds 2000m, and the atmospheric environment is relatively harsh (beyond the range of the above atmospheric conditions), we can specially supply this product according to the actual working conditions of users to meet user needs.
Installation category: Ⅲ, suitable for electromagnetic environment B.
Three positions
