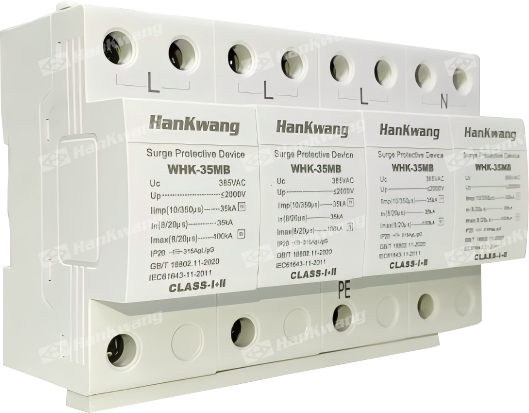

WHK-MB series high-energy controllable pole surge protector has extremely high current-through capacity, which greatly reduces the voltage protection level through electronic trigger circuit, and is more suitable for low-voltage power distribution systems and important protection equipment that are subject to direct lightning strikes. Easy to install (digital model design can realize Kevin wiring); Strong disconnection and freewheeling ability; Perfect arc extinguishing design-no arc leakage at all (can be used in special occasions such as petroleum, chemical industry, coal etc.) and other advantages.
| WHK | — | ☐ | MB |
|---|---|---|---|
|
Wuxi Hanguang Electric Company Limited |
Maximum discharge current | Class I (B) high energy |
| Model | 35MB |
|---|---|
| Nominal operating voltage (Un) | AC 230V |
| Maximum continuous operating voltage (Uc) | AC385V |
| Operating frequency (Hz) | 50-60Hz |
| Maximum discharge current lmax (10/350) | 35kA |
| Energy Q | 14.5 AS |
| Guard mode (symmetrical full mode) | L, N vs PE |
| Residual Pressure Ures | ≤ 1200 V |
| Response time | ≤ 25 ns |
| Discontinuous flow capacity | 3kA |
| Fuse | 125Agl |
| Access mode | Parallel |
| Wiring mode | Crimp terminal |
Implementation standard: Q170924537-1. 01-2000, GA173-2002, YD/T5098-2001, YD/T1235.1-2002, GB18802.1-2011
